<ul> <li>Light distribution inwards</li> <li>Protection class III: only suitable for very low voltage supply (<50V)</li> <li>Luminaires are suitable for mounting on ordinary flammable materials, which have an inflammation point of at least 200° C. / 392° F</li> </ul>
Product Name

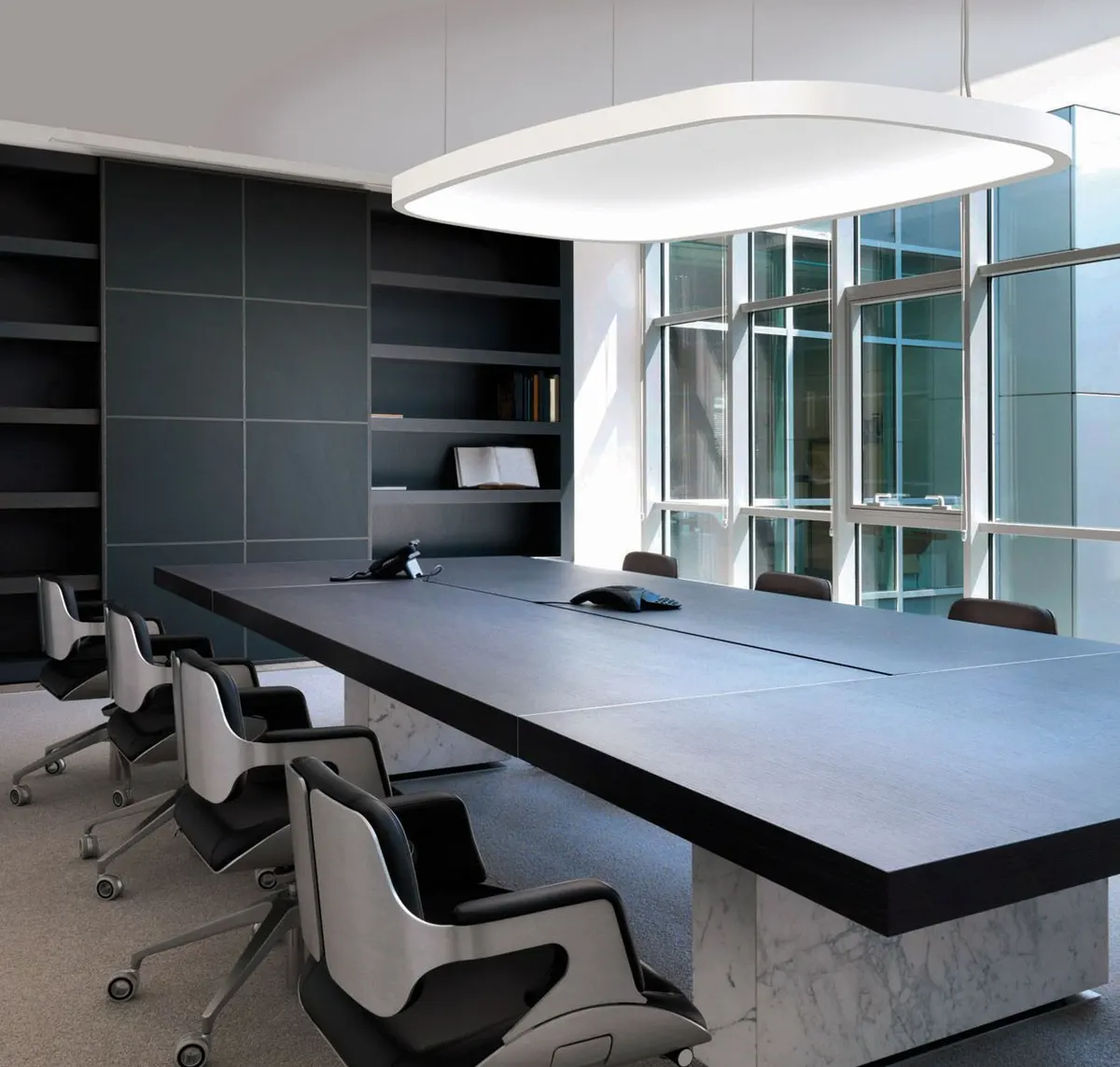

Soft Square Light and Acoustic
Manufacturer Notes
Technical data is subject to change. Errors and omissions excepted 1) Net lumen output: Losses due to dousers and rejecters are considered.Lumen values refer to an ambient temperature of max. 35° C / 95° F. 2) Weight of lights without remote technical unit or canopy.
Material & Finish
Construction
Aluminium profile with integrated opal diffuser and fabric covering as a light and acoustic diffuser
Content
Metal, Powder Coat
Availability & Procurement
Availability
Unavailable
Country Of Origin
Germany
Custom Capabilities
Canopy, white Ø 290 mm LED-technology SELV: warm white 3000 K, extra warm white 2700 K, tunable white 2700 – 6500 K or RGB-colour control Dimmable 1-10V, DALI or CASAMBI. Direct ceiling mounting
Technical Specifications
Product Features
Customizable
Size
1666 mm x 756 mm x 80 mm, 2400 mm x 1090 mm x 80 mm
Total Weight
9.5 kg, 12.5 kg
Applications & Usage
Application Filter
Ceiling|Lighting
Installation
Mounting: Pendant light, 4 point steel cable suspension, 5000 mm Power supply cable in silver, incl. external power supply unit for suspended ceiling
Performance Metrics
Acoustics
Fabric aw = 0.9 (Class A)
Maintenance
Refer to Cleaning Instructions PDF for details
Sustainability
Human Health
Human Health Impact
CDPH Standard Method v1.2-2017, Low Emitting/Low VOC, Cradle to Cradle Material Health Certificate - Bronze
