Name: Fabricoil® Aluminum
Brand: Cascade Architectural
SKU: 100281138

Mesh Drapery

Ships from brand

Commercial & Residential

Antique Bronze

Sample size: 6 in x 4 in x 0.4 in

Ships in 2-5 days from brand

Color

(Antique Bronze)

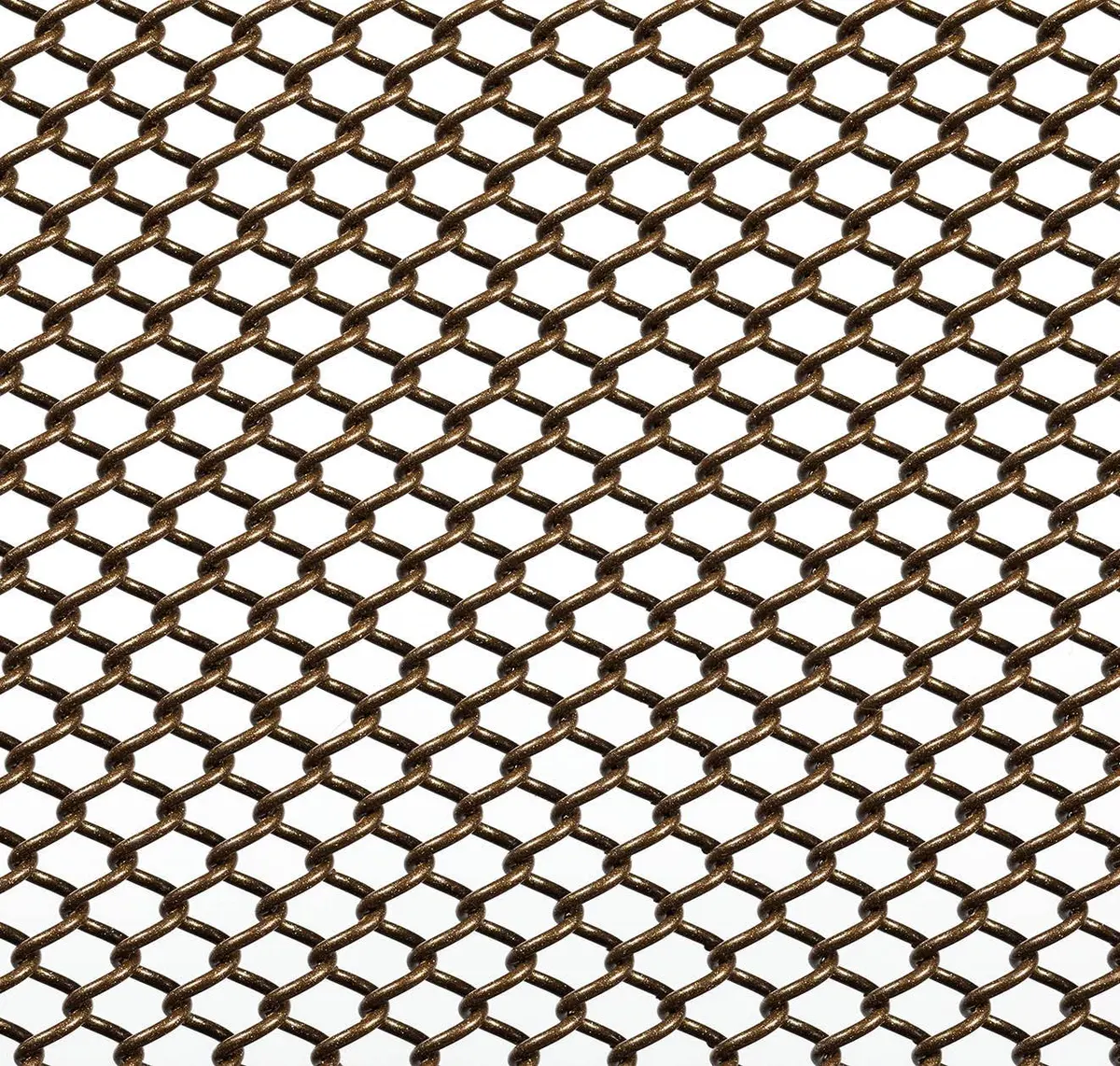

Construction: Coiled wire fabric is manufactured through an innovative weaving process that interlocks individual strands of metal wire together through a spiral weave pattern to create a flexible metal fabric panel. Panels are then powder-coated, lacquered, or left untreated to meet desired specifications and performance requirements. Part of a fully-engineered solution suitable for a wide range of custom architectural metal mesh applications, the material is mounted and installed in the built environment using pre-engineered attachment hardware that varies by application
Content: Aluminum 5056-H18. Non-ferrous, high corrosion-resistant material that does not discolor or deteriorate in most climates. Excellent strength-to-weight ratio at almost 1/3-1/2 the weight of steel
Format: Modular
Opacity Level Openness: Varies (from 40% to 85%). Dependent on the specified weave. Refer to Product Data Sheets for additional information

Availability: GSA Approved, Made to Order / Special Order
City Of Origin: Tualatin
Country Of Origin: United States
Custom Capabilities: These custom, fully-engineered solutions are manufactured to specification. Options for wire material, wire gauge, weave size, color/finish, fullness, coil direction, and pre-engineered or custom attachment system all specified by the design team. Many specialty fabrication options including shape-cutting, curved attachment hardware, and more, are also available upon request
Lead Time: 6 weeks
State Of Origin: Oregon

Overall Thickness: 18
Product Features: Customizable
Size: Weave size, wire material, gauge, color/finish, fullness, coil direction, and attachment system are all custom. Panels can be manufactured in unlimited widths up to 40-feet in length, and can be mounted individually or spliced together at installation site for seamless coverage. Width is measured in horizontal coil direction. Length is measured in vertical coil direction. Can be mounted in either direction based on application requirements
Total Weight: Varies based on material specifications. Refer to Product Data Sheets or contact manufacturer for additional information

Application Filter: Ceiling|Decor|Facade|Fireplace|Fireplace/Fireplace Surround|Lighting|Ornamentation|Partition|Paving & Deck|Paving & Deck/Patio|Stair & Elevator|Stair & Elevator/Elevator Cladding|Vertically Hanging|Vertically Hanging/Drapery|Vertically Hanging/Window Shade|Wall|Window

Flammability: The material is flameproof
Light Blocking: Complete
Maintenance: Wire surface naturally resists accumulation of dust and debris and, thereby, requires very little to no maintenance over time. Can be brushed or vacuumed if necessary. For general cleaning, use a damp, soft cloth with mild, non-abrasive soap and water. Do not use harsh chemicals. In heavy traffic areas, pressure wash or hand-wash on a monthly basis
Tensile Strength: Varies. Dependent on the specified weave. Refer to Data Sheets for additional information.

Human Health Impact: Low Emitting/Low VOC, Declare Product Label - Declared, Declare Product Label - LBC Red List Approved, Declare Product Label - LBC Red List Free

Circular Economy: Declare Product Label - Declared, Declare Product Label - LBC Red List Free, Declare Product Label - LBC Red List Approved, Recycled Content
