Name: Fabricoil® Copper-Clad Steel
Brand: Cascade Architectural
SKU: 100550697

Mesh Drapery

Ships from brand

Commercial & Residential

$$$

Natural

Sample size: 6 in x 4 in x 0.4 in

Ships in 2-5 days from brand

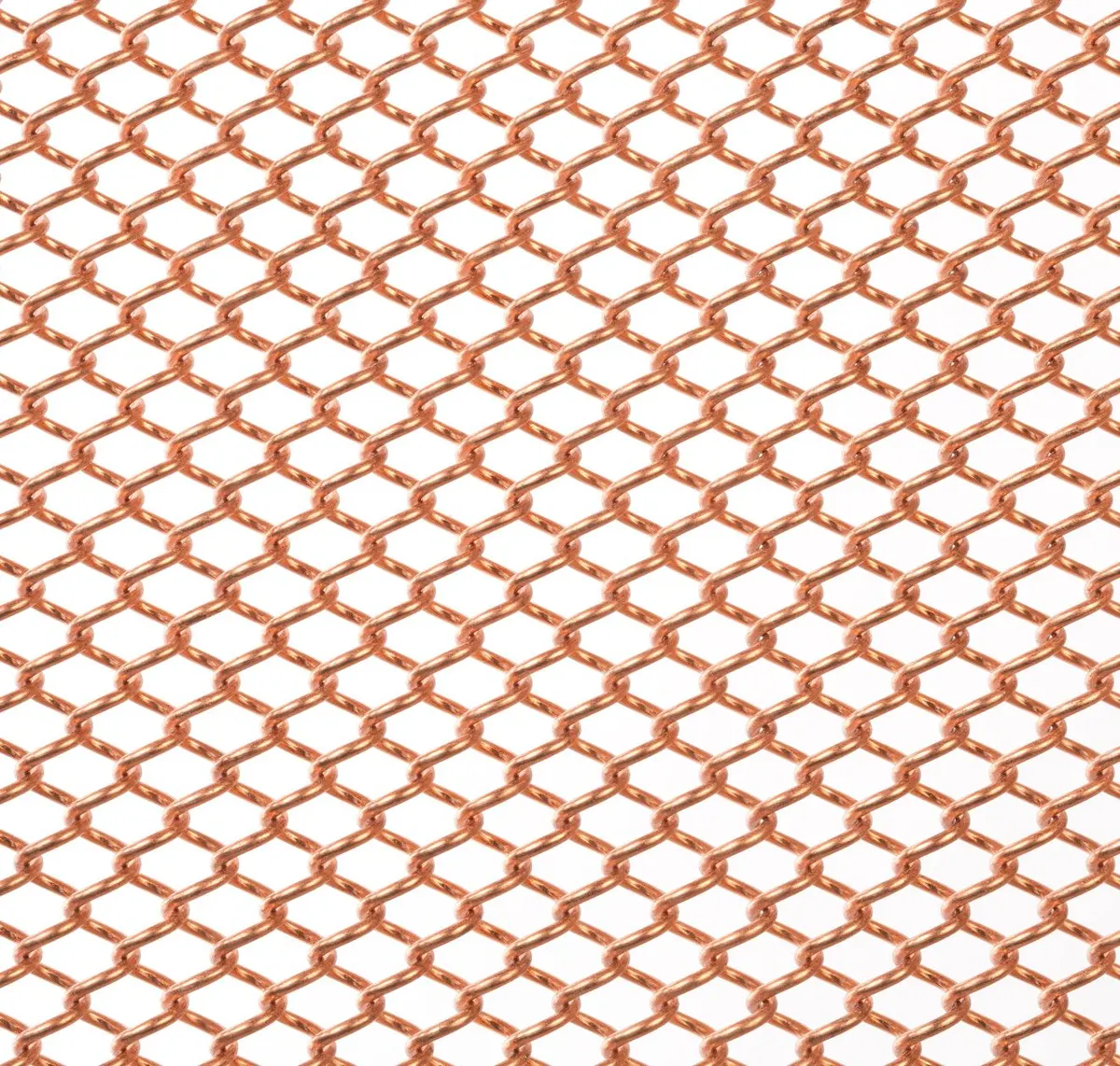

Construction: Coiled wire fabric is manufactured through an innovative weaving process that interlocks individual strands of metal wire together through a spiral weave pattern to create a flexible metal fabric panel. Panels are then powder-coated, lacquered, or left untreated to meet desired specifications and performance requirements. Part of a fully-engineered solution suitable for a wide range of custom architectural metal mesh applications, the material is mounted and installed in the built environment using pre-engineered attachment hardware that varies by application
Content: Made from pure copper that is metallurgically bonded to a low carbon steel wire surface, Copper-Clad Steel conforms to ASTM standards and, when left in its natural form, is naturally antimicrobial
Format: Modular
Opacity Level Openness: Varies (from 40% to 85%). Dependent on the specified weave. Refer to Product Data Sheets for additional information

Availability: GSA Approved, Made to Order / Special Order
City Of Origin: Tualatin
Country Of Origin: United States
Custom Capabilities: These custom, fully-engineered solutions are manufactured to specification. Options for wire material, wire gauge, weave size, color/finish, fullness, coil direction, and pre-engineered or custom attachment system all specified by the design team. Many specialty fabrication options including shape-cutting, curved attachment hardware, and more, are also available upon request
Lead Time: 6 weeks
State Of Origin: Oregon

Overall Thickness: 18
Product Features: Customizable
Size: Weave size, wire material, gauge, color/finish, fullness, coil direction, and attachment system are all custom. Panels can be manufactured in unlimited widths up to 40-feet in length, and can be mounted individually or spliced together at installation site for seamless coverage. Width is measured in horizontal coil direction. Length is measured in vertical coil direction. Can be mounted in either direction based on application requirements
