Name: Maple Valley Panel
Brand: Richlite
SKU: 100298465

Laminate

Overnight

Commercial & Residential

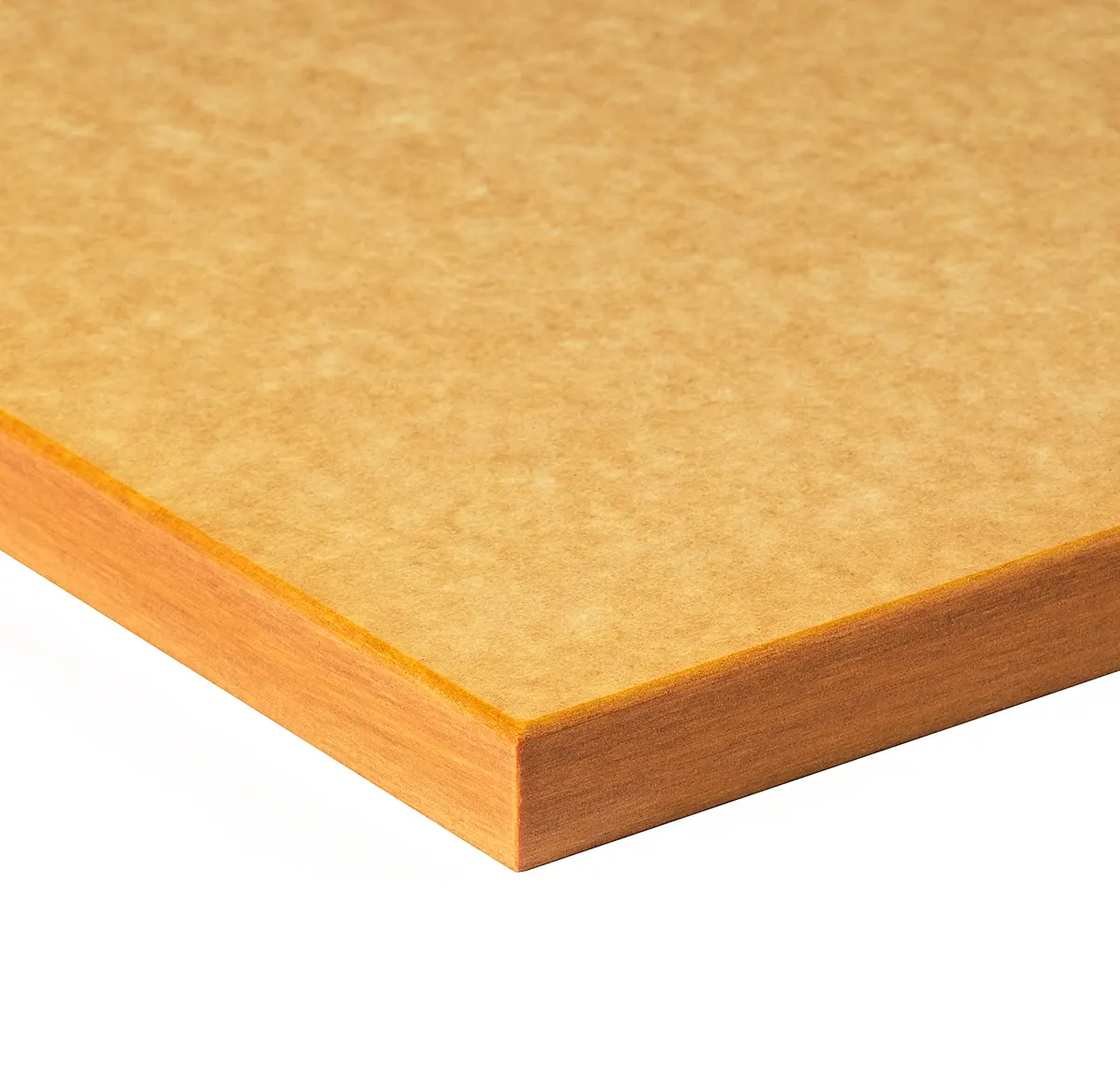

Maple Valley Panel

Sample size: 2.8 in x 2.8 in x 0.5 in

Arrives tomorrow

Collection Name: Northwest
Manufacturer SKU: NORTHWEST-MAPLE-VALLEY-LEATHERED
Price Range: $$
Product Name: Maple Valley Panel
Warranty: Lifetime Limited Warranty for interior residential use. 10 year Limited Warranty for exterior residential and commercial Use. 20 year Limited Warranty for interior commercial use

Construction: Paper is infused with a thermosetting resin before being cut to length and laid up. Sheets are stacked, alternating the paper's direction. Stacks are pressed under heat and pressure, bonding the layers together and curing the material
Content: 65% FSC® certified or recycled paper content and 35% phenolic resin
Finish: Leathered. Some applications will require an applied surface process from an on-site fabricator for the best long-term performance
Format: Panel / Sheet

Impact Resistance: X direction (izod face impact) = 2.48 ftlbs per inch of width. Y direction (izod face impact) = 1.46 ftlbs per inch of width. X direction (izod edge impact) = 0.68 ftlbs per inch of width. Y direction (izod edge impact) = 0.62 ftlbs per inch of width.
Length: 7
Overall Thickness: 3
Size: 4 ft x 8 ft, 4 ft x 10 ft, 4 ft x 12 ft, 5 ft x 10 ft, 5 ft x 12 ft. Refer to Size, Weight & Thickness chart for additional information

Application Filter: Bath|Countertop|Kitchen|Millwork|Furniture|Transportation|Transportation/Automotive|Transportation/Aviation|Transportation/Marine|Wall|Wall/Backsplash
Installation: Can be milled, sanded, routed, and joined. Treat similar to a dense hardwood

Abrasion Wear Resistance: Taber Abraser (CS-17). Weight loss per 1000 revs = 0.0112%. Wear per 1000 revs = 0.00011in. Unpolished coefficient of friction = 0.2
Compression: X direction = 18.400 psi. Y direction = 15.900 psi. Z direction = 30.000 psi.
Flammability: ASTM E84 Class A. Flame spread index = 25. Smoke index = 40
Flexural Strength: X direction (face in tension) = 22,00 psi. Y direction (face in tension) = 17,300 psi. X direction (edge in tension) = 20,400 psi. Y direction (edge in tension) = 16,100 psi.
Light Blocking: Complete
Lightfastness: Sunlight darkens surface
Tensile Strength: X direction = 19,200 psi. Y direction = 13,100 psi.

Human Health Impact: CDPH Standard Method v1.2-2017, Declare Product Label, Declare Product Label - Declared, Declare Product Label - LBC Red List Approved, Health Product Declaration (HPD), Low Emitting/Low VOC, REACH Compliant, UL GREENGUARD, UL GREENGUARD GOLD

Climate Impact: CARB Compliant, Environmental Product Declaration (EPD)
Emissions: Free of hazardous substances listed in the SVHC candidate list of the REACH-regulation in a concentration greater than 0.1%. As tested by UL and certified by Greenguard, emissions are <0.001 ppm. Consult Phthalate Emissions documentation

Ecosystem Health: Forest Stewardship Council (FSC) Certified|Forest Stewardship Council (FSC) Certified - Chain of Custody

Social Equity Impact: Forest Stewardship Council (FSC) Certified, Forest Stewardship Council (FSC) Certified - Chain of Custody

Circular Economy: Declare Product Label, Declare Product Label - Declared, Declare Product Label - LBC Red List Approved, Environmental Product Declaration (EPD), Forest Stewardship Council (FSC) Certified, Health Product Declaration (HPD), Recycled Content, Recycled Content - Post-Consumer

LEED: May contribute to LEED Credits including MR Credits 3, 4, 5, 7, IEQ Credit 4.4 and ID Credit 1.
