Name: Material - Interior Compact Laminate Panel
Brand: Fundermax
SKU: 100415347

Laminate

Overnight

Commercial

$$$

Patina Bronze

Sample size: 4.8 in x 4.8 in x 0.1 in

Arrives tomorrow

Color

(Patina Bronze)

Collection Name: Max Compact Interior
Color Name: Patina Bronze
Color Number: 0794
Manufacturer SKU: FMX-0794-FH
Price Range: $$$
Product Name: Abstract - Interior Compact Laminate Panel
Warranty: 2 years
Manufacturer Notes: As a standard, panels come double-sided with a black core

Construction: Pressed under high pressure and temperature
Content: A layered kraft paper core impregnated with phenolic resin and double-sided decorative surface layers of melamine-impregnated paper
Finish: Standard (FH) or Matte (MT). Aptico (AP) and Super Gloss (SG) have limited availability in decor and sizes
Format: Panel / Sheet

Availability: Stocked in North America, Made to Order / Special Order, Limited Stock
Country Of Origin: Austria
Custom Capabilities: FunderMax offers CNC controlled processing and panel cutting. Specify anything from intricate milling to simple cutouts for mounting purposes

Dimensional Stability: EN 438-2:2016, Point 17 (dimensional changes during climatic changes) tested. Result of = 0.3% change in length and = 0.6% change in the cross-direction. EN 61340-4-1 (coefficient of thermal expansion) tested. Result of 20 x 10^-6 (1/k).
Edge End: Panels contain a black core that is visible at the edge. It is not necessary to seal edges, even after cutting and sanding
Impact Resistance: EN 438-2:2016, Point 21 (falling ball impact) tested. Result of 8mm.
Overall Thickness: 20
Product Features: Customizable
Size: Available in Fine Hammered (FH) finish: 84.25in x 41.75in (size code TK), 110.25in x 51.1875in (size code GR), 110.25in x 73in (size code SP), 161.375in x 51.1875in (size code JU), 161.375in x 73in (size code XL), 144.5 x 64.1875in (size code OF). Available in Matte (MT) finish: 110.25in x 51.1875in (size code GR). Not all sizes are available in all colors. Inquire with brand rep for additional information
Total Weight: 13.5 kg/m2

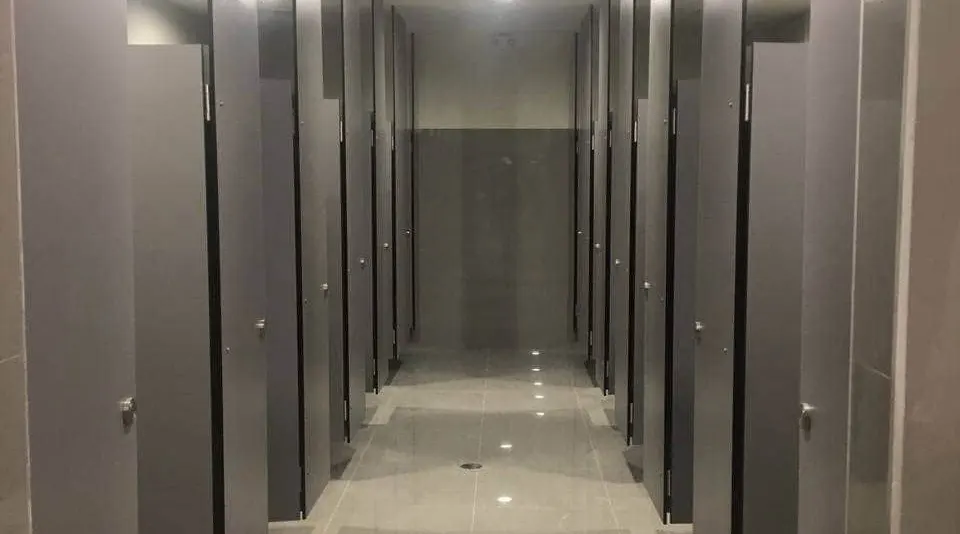

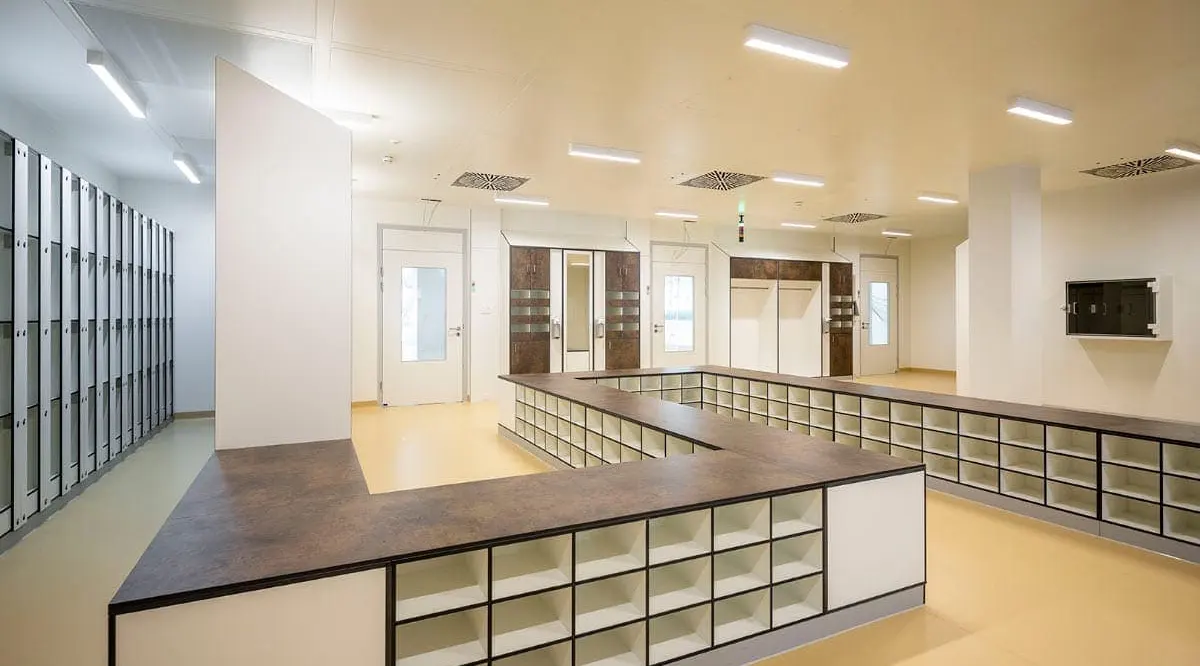

Application Filter: Ceiling|Countertop|Flooring|Flooring/Operating Rooms & Labs|Partition|Partition/Toilet Partition|Furniture|Stair & Elevator|Stair & Elevator/Railing|Transportation|Transportation/Aviation|Wall
Installation: Installation guidance is application dependent. Refer to our Interior Technical Manual for additional information
Recommended Adhesive: Recommended dispersion adhesives for glued joinery includes PVAc glues, contact adhesives, and reactive adhesives/epoxies. EVA-, polyamide-, or polyurethane-based hot melt adhesives can be used for edgebanding. Adhesives can can also be used to support mechanical connections. Sikaflex 252, Teroson-Terostat 92, Dinitrol 600, Dinitrol 605, Dinitrol F500, Dinitrol 410 UV Plus, and others have been tested.
Suitable Substrates: Can be screwed into a wooden substructure or riveted onto an aluminium substructure. Non-ventilating systems can be mechanically affixed directly to drywall, concrete, or brick. The application of a vapor-tight, self-adhesive aluminum vapor barrier to the subsurface is recommended, especially for damp walls. Refer to the attached Tech Guide for additional information regarding non-wall utilization.

Abrasion Wear Resistance: EN 438-2:2016, Point 10 (resistance to stress abrasion) tested. Result of = 150 U. EN 438-2:2016, Point 25 (resistance against scratching) tested. Result of = 4 N
Antimicrobial Note: Does not support micro-organic growth
Flammability: EN 13501-1 tested. Result of D-s2, d0. ASTM E84 tested. Results between Class A & Class B depending on material thickness and core selection. Tested in accordance with CAN/ULC S102-18, Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies
Flexural Strength: EN ISO 178 tested. Result of = 80 Mpa.
Light Blocking: Complete
Lightfastness: EN 438-2:2016, Point 27 (lightfastness) tested. Level = 4 results
Maintenance: Clean with hot water and a soft sponge, cloth, or brush. Common household cleaners, organic solvents, and commercially available disinfectants can also be used when necessary. Avoid abrasive cleaning products
Water Resistance: EN 438-2:2016, Point 12 (resistance to boiling water) tested. Result of = 2.0%.

Human Health Impact: CDPH Standard Method v1.2-2017, Formaldehyde Free, Low Emitting/Low VOC, UL GREENGUARD, UL GREENGUARD GOLD

Climate Impact: CARB Compliant, ISO 14001 Environmental Management System (EMS), Programme for the Endorsement of Forest (PEFC) Certified
Emissions: Classified as a low-emitting material

Ecosystem Health: Forest Stewardship Council (FSC) Certified|ISO 14001 Environmental Management System (EMS)|Programme for the Endorsement of Forest (PEFC) Certified

Social Equity Impact: Forest Stewardship Council (FSC) Certified, Programme for the Endorsement of Forest (PEFC) Certified
