Name: Patina NXT
Brand: American Fiber Cement
SKU: 100351750

Concrete Veneer

Overnight

Commercial & Residential

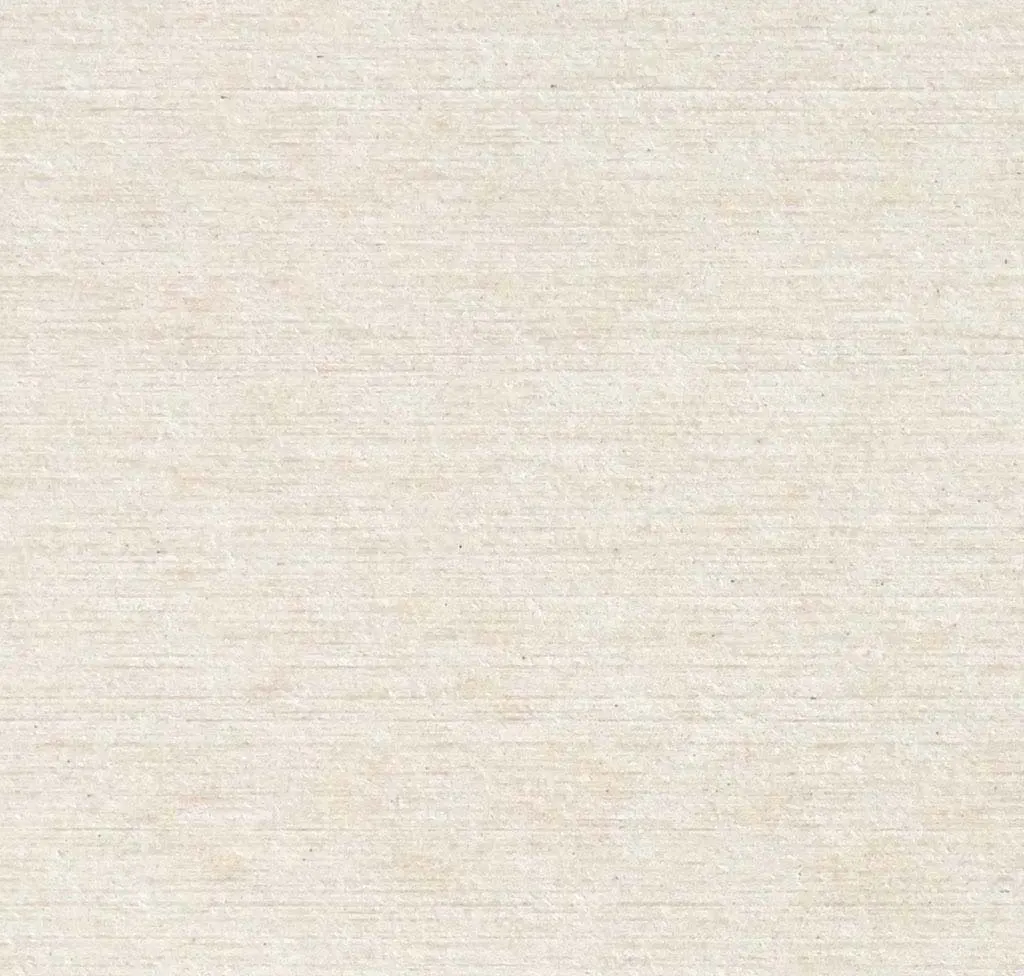

Pearl

Sample size: 5 in x 5 in x 0.2 in

Arrives tomorrow

Color

(Pearl)

Color Name: Pearl
Manufacturer SKU: P-222
Price Range: $$
Product Name: Patina NXT
Manufacturer Notes: AFC technical staff is available to consult with architects and installers regarding specifications, installation tips, and on-site training

Construction: Produced according to the Hatschek method with a homogeneous mixture, cut, dried by autoclave, polished, painted, and edge sealed, resulting in through-body color. Fabricated using advanced machinery to custom cut to any required specification

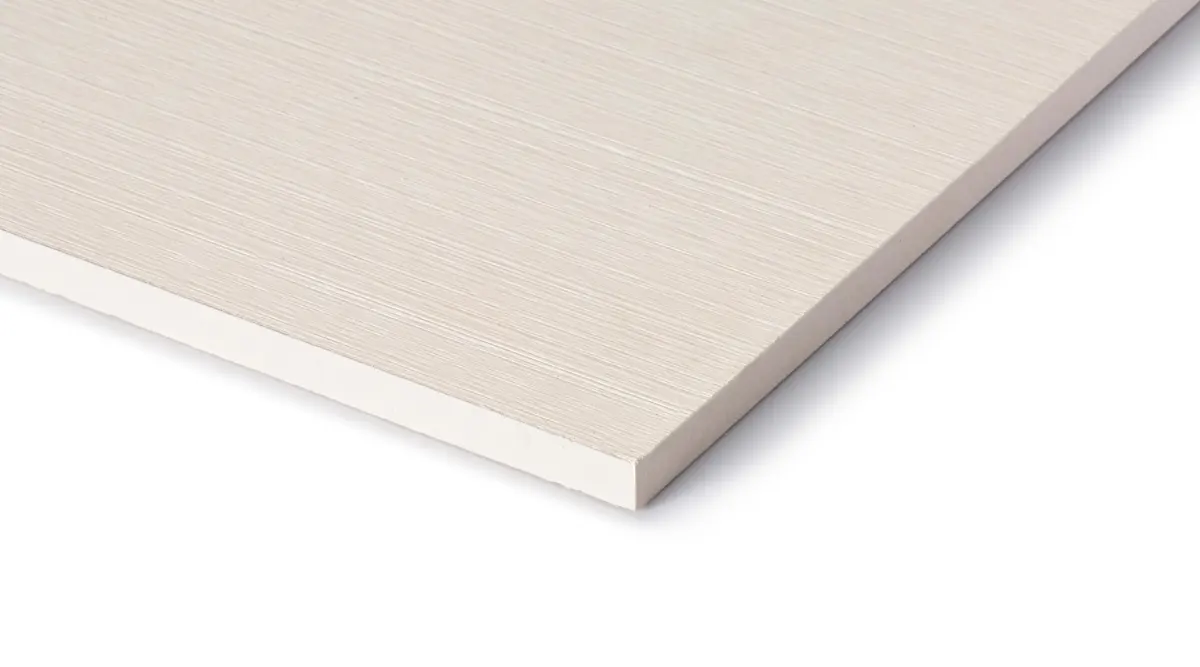

Content: High-density fiber cement board made with Portland cement, quartz silica, cellulose pulp, and wollastonite
Finish: Matte with weather-proof treatment. Over time, this material will patinate
Format: Panel / Sheet, Modular

Dimensional Stability: Coefficient of thermal expansion is 0.01 mm/m °C
Impact Resistance: EN ISO 148-1 Modified Charpy Pendulum Impact Tested. 2.7 kJ/m² along grain. 3.6 kJ/m² across grain. ETAG 034, ISO 7892 Impact Resistance Tested; Category IV Passed. Category III Passed. Category II Not Tested. Category I Not passed.
Size: 48 in x 96 in, 48 in x 120 in. Custom sizes and shapes available by request
Total Weight: 2.5 lbs/sqft

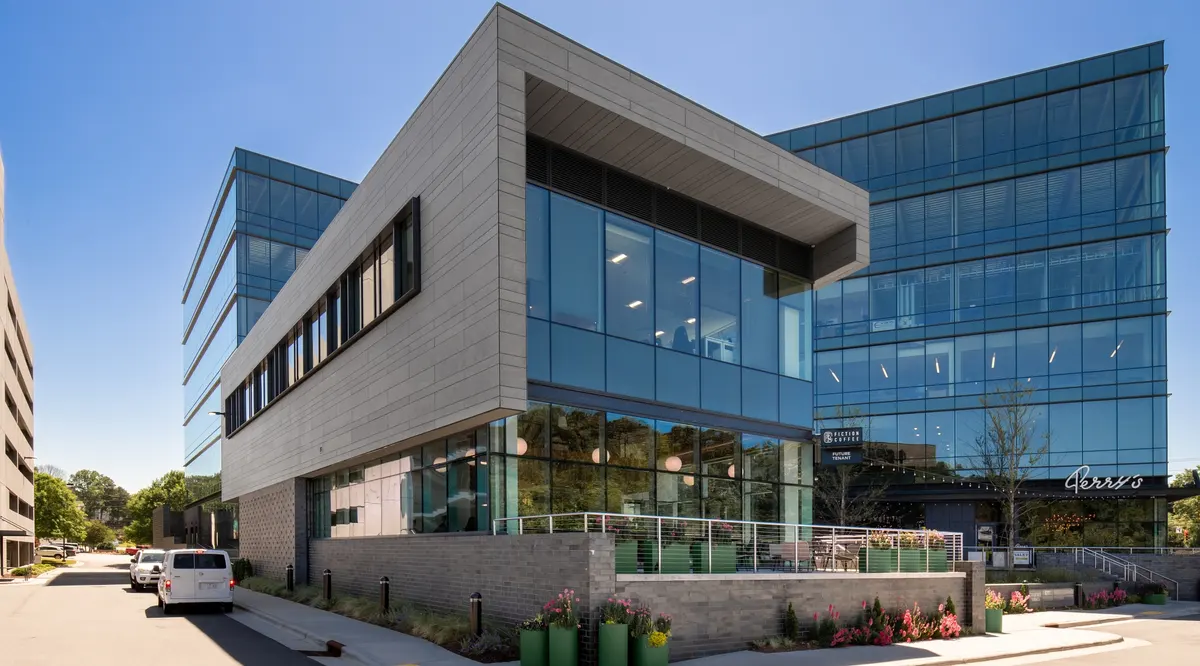

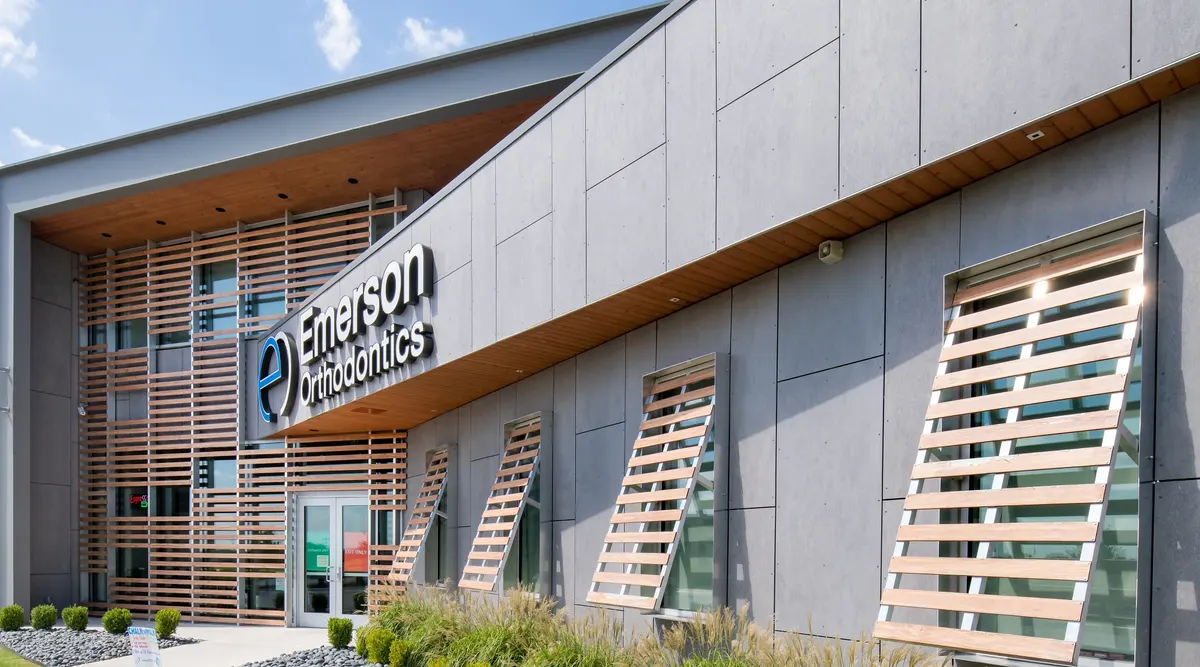

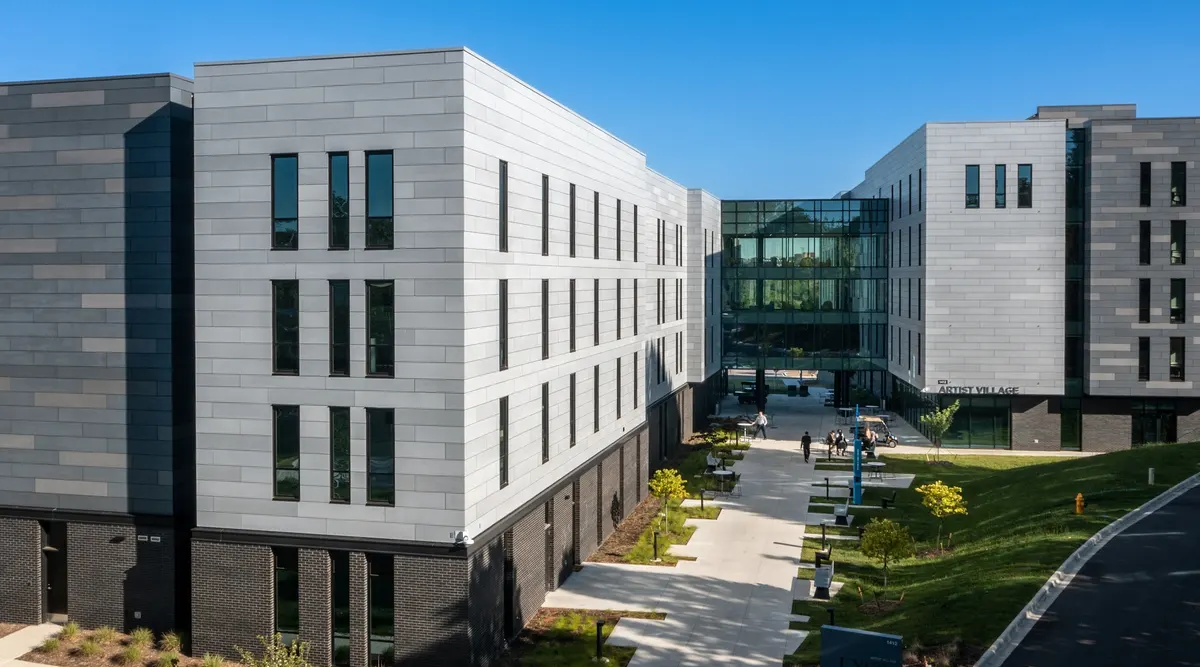

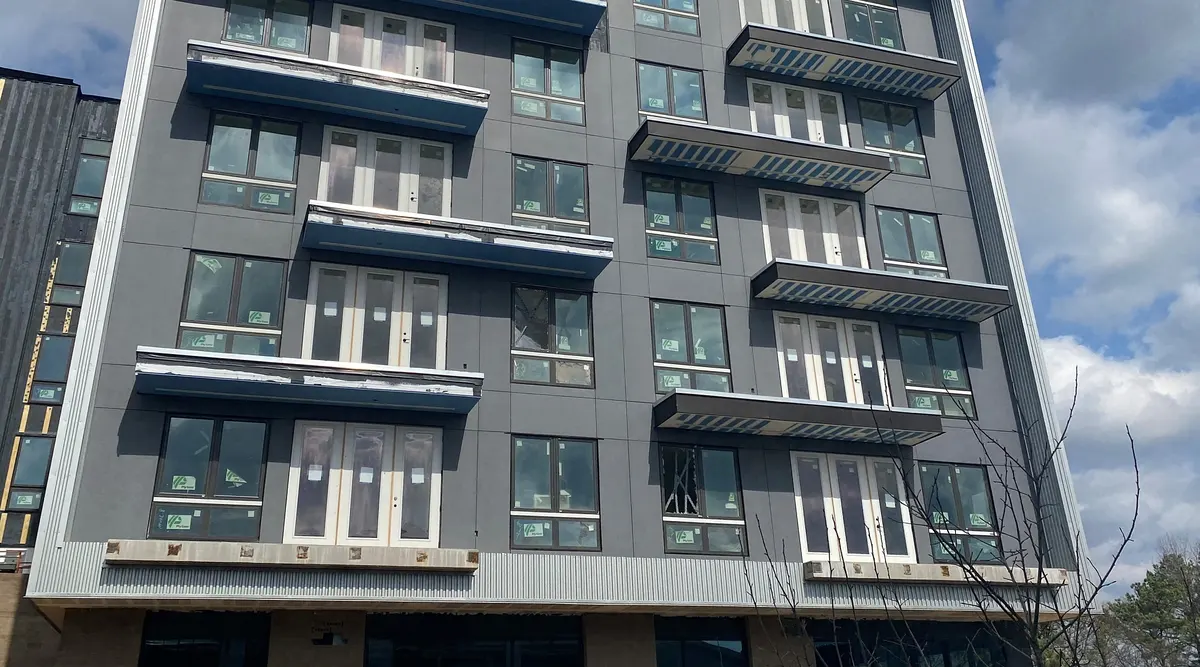

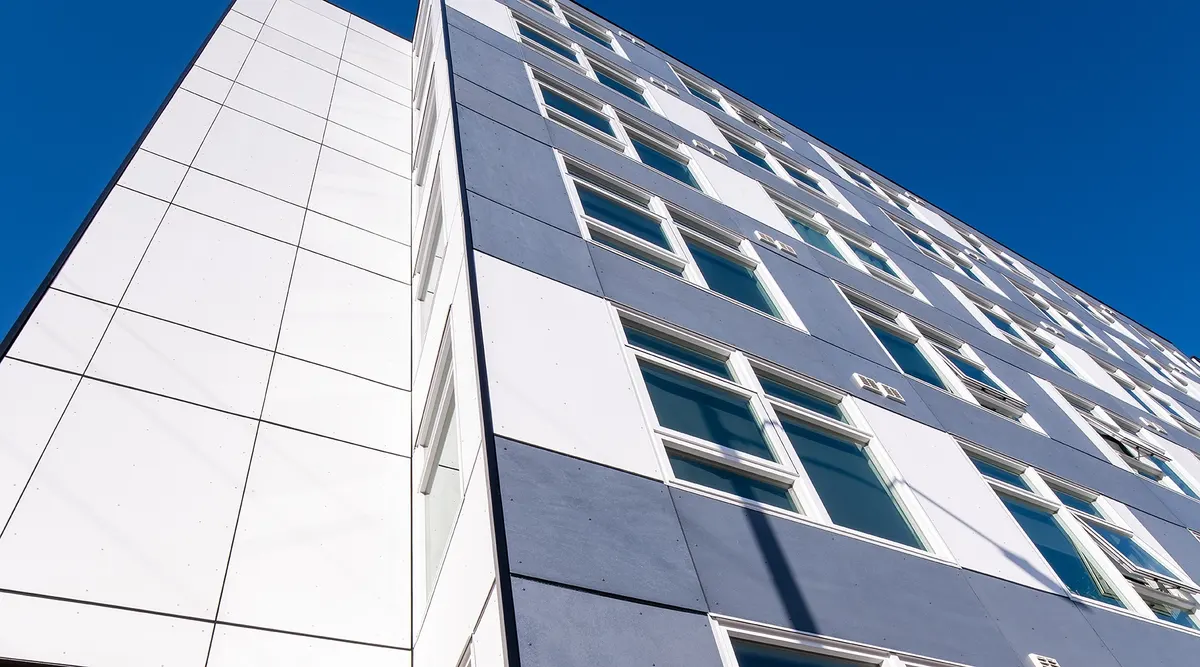

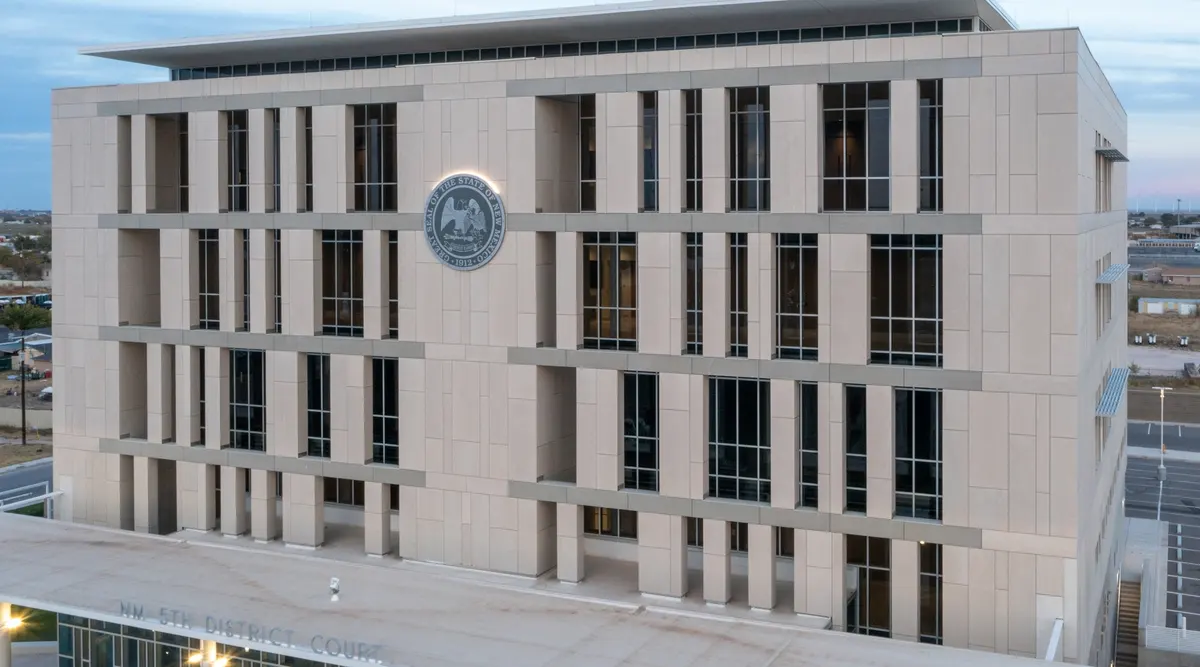

Application Filter: Facade|Wall|Window
Suitable Substrates: Wood, aluminum, steel. Refer to Installation Guides for additional information.

Flexural Strength: EN 12467 Tested. Flexural modulus is between 9 - 14 GPa depending on conditions. Bending strength is between 18 - 35 MPa depending on conditions.
Light Blocking: Complete

Circular Economy: Environmental Product Declaration (EPD), Health Product Declaration (HPD)
