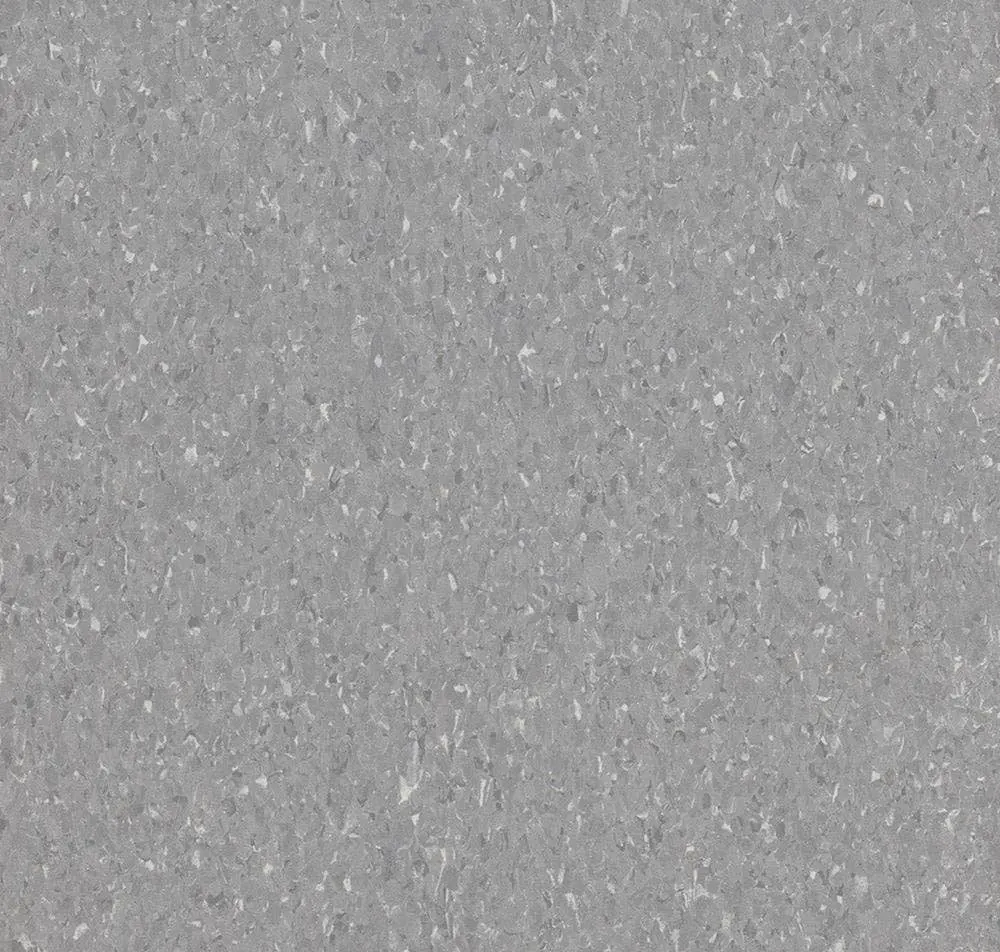

Armstrong Flooring Premium Excelon Crown Texture | Product

Core Specs

General Information

Collection Name: Premium Excelon Crown Texture
Color Name: STERLING
Manufacturer SKU: 5C904031
Price Range: $
Product Name: Premium Excelon Crown Texture
Warranty: 30 Year Commercial Warranty with approved adhesive

Material & Finish

Construction: Vinyl Composition Tile
Content: Vinyl
Finish: Fast Start Factory Finish
Format: Modular

Availability & Procurement

Availability: Typically Stocked, Stocked in North America
Country Of Origin: United States
Manufacturing Location: United States
Order Increments: 45 Tiles per carton (45 sq ft coverage)

Technical Specifications

Edge End: Eased Edge
Length: 12
Overall Thickness: 3.2
Size: 12 in x 12 in (305 mm x 305 mm)
Wear Layer Thickness: 0.125 in (3.2 mm)

Applications & Usage

Application Filter: Flooring
Installation: Full spread adhesive

Performance Metrics

ADA: Meets ADA Standards for Accessible Design Chapter 3 Section 302.1 - Floor surfaces shall be stable, firm and slip-resistant
Classification: ASTM F1066 Class 2 Through Pattern; ISO 10595 Type II
Flammability: Meets ASTM E648 Flame Spread - 0.45 W/cm2 or more Class I; Meets ASTM E662 Smoke Evolution - 450 or less; Meets CAN/ULC S-102.2
Light Blocking: Complete
Maintenance: No Polish - No Buff, Polish Optional
Slip Resistance: Meets ASTM D2047/UL 410 Static Coefficient of Friction - Greater than or equal to 0.5

Sustainability

Human Health

Human Health Impact: Health Product Declaration (HPD), CDPH Standard Method v1.2-2017, SCS Global FloorScore Certified
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Health

Climate Impact: Environmental Product Declaration (EPD)
GWP Functional Unit: kg CO2e/m2

Circular Economy

Circular Economy: Recycled Content - Post-Consumer, Health Product Declaration (HPD), Recycled Content, Manufacturer Take-Back Program, Environmental Product Declaration (EPD)

Certifications & Disclosures

Disclosure Level: 1000 ppm
Environmental Product Declaration: Product-Specific EPD
Ingredient Disclosure: Health Product Declaration (HPD)
LEED: May contribute to LEED Credits
VOC Emissions Testing Certificate: FloorScore Certified
