REHAU RAUVISIO Crystal | Product

Core Specs

General Information

Collection Name: Decorative Design Collection
Color Name: Menta 1684L
Manufacturer SKU: 380542-007
Price Range: $$$$$
Product Name: RAUVISIO Crystal
Warranty: 10 years for certain applications

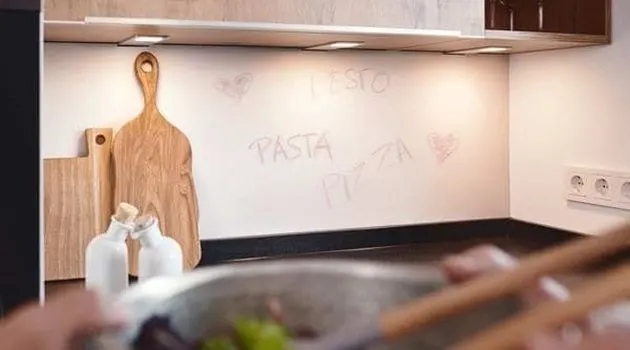

Manufacturer Notes: Can be drawn on using standard whiteboard markers

Material & Finish

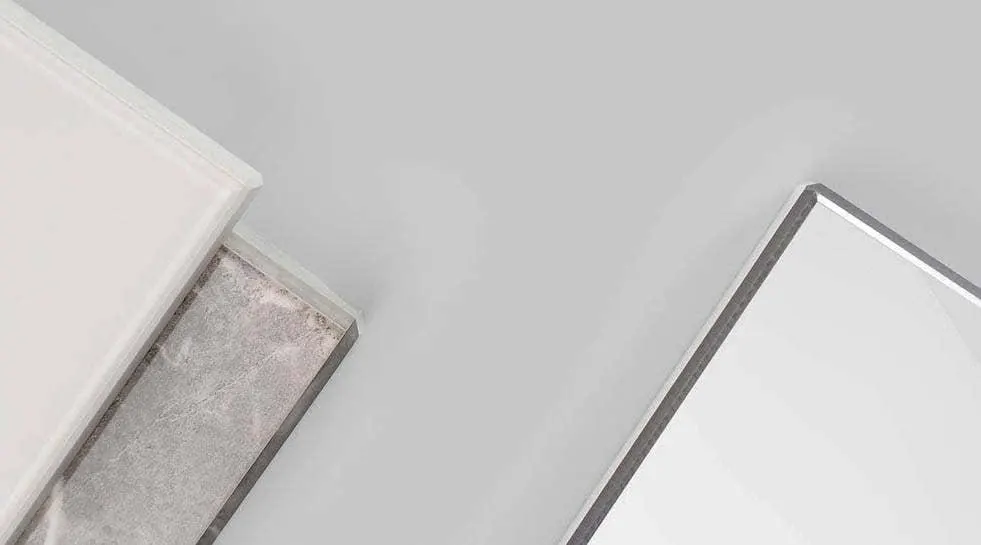

Construction: Offered as individual matching components (thin panel, pressed board and edgeband) or as finished, cut-to-size components
Content: A thermoplastic coextruded acrylic polymer material with a visual glass effect
Finish: High-gloss. Sealed with a hard coat finish
Format: Panel / Sheet

Availability & Procurement

Availability: Typically Stocked, Stocked in North America
Country Of Origin: Italy
Custom Capabilities: With the REHAU surface configurator, configure and order made-to-measure, invisible joint panels quickly and easily with no minimum order. Inquire with brand about individual color matching. Can be mirrored or magnetized by request
Lead Time: 1 week

Technical Specifications

Edge End: RAUKANTEX edgebanding recommended
Overall Thickness: 19
Product Features: Customizable
Size: 2800mm x 1300mm

Applications & Usage

Application Filter: Bath|Kitchen|Furniture|Wall|Wall/Backsplash

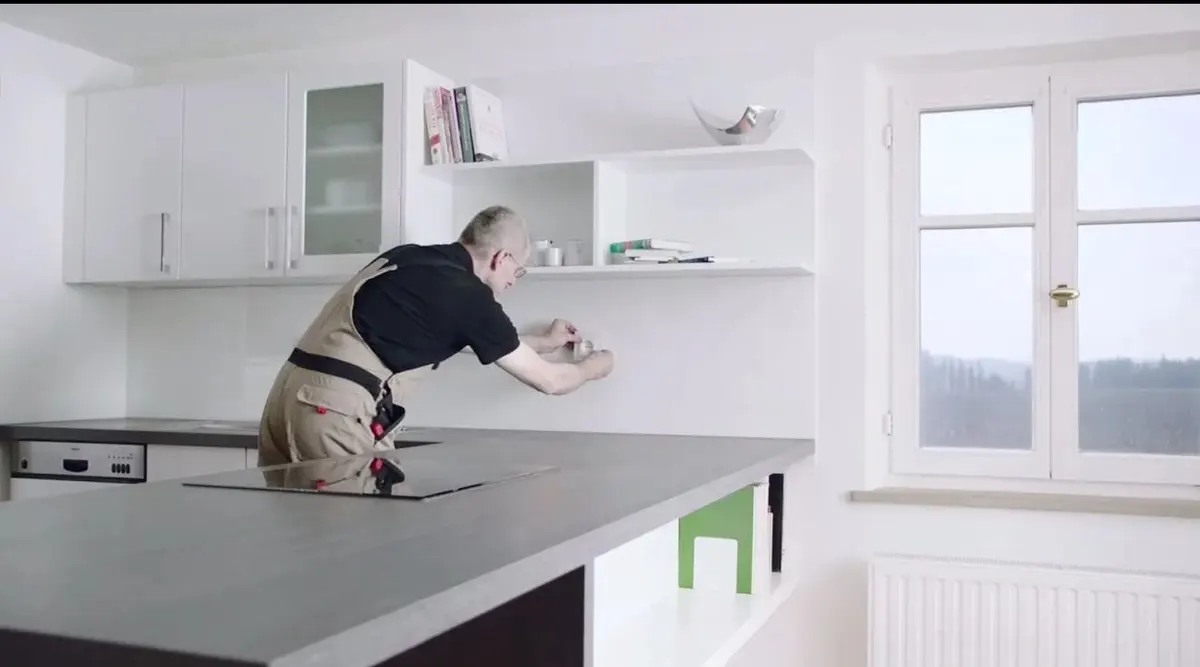

Installation: Can be machined with typical woodworking tools. Capable of being drilled, milled, sanded, chamfered, polished, and cut. Can be cold formed (minimum radius of 400 mm). Refer to Technical Information Guide for additional information
Recommended Adhesive: RAUVISIO Flat-Lam PUR, SikaBond® AT universal, or a single component PU hotmelt is recommended.
Suitable Substrates: Wooden substrates, lightweight boards or composite material substrates are suitable. MDF is recommended for a high-quality surface finish. The specially developed balancing sheet is perfectly color-matched to the acrylic sheet. The material thickness of the balancing sheet ensures minimal warpage of the board assembly.

Performance Metrics

Abrasion Wear Resistance: DIN 68861/T4 Scratch-resistance Tested. High-gloss Class 4C. Matte Class 4B
Antimicrobial Testing: Resistant to fungal and bacterial growth
Flammability: Categorized to DIN 4102-B2 as normal flame resistance
Hardness: DIN ISO 7619-1 Shore Hardness tested. 91±3
Light Blocking: Complete
Lightfastness: DIN EN ISO 4892-2, process B Tested. Level 7. DIN EN ISO 105 A02 Tested. Less than or equal to Level 4
Maintenance: Clean with a damp microfiber cloth and with a mild soap if needed. Do not dry-wipe the acrylic finish. Avoid abrasive cleaners, solvent-based cleaners and harsh chemicals. Do not use paper towels, brushes, or scouring pads
Water Absorption: Non-porous

Sustainability

Climate Health

Climate Impact: CARB Compliant, Programme for the Endorsement of Forest (PEFC) Certified

Ecosystem Health

Ecosystem Health: Programme for the Endorsement of Forest (PEFC) Certified

Social Health & Equity

Social Equity Impact: Programme for the Endorsement of Forest (PEFC) Certified
