REHAU RAUVISIO Ingrain | Product

Core Specs

General Information

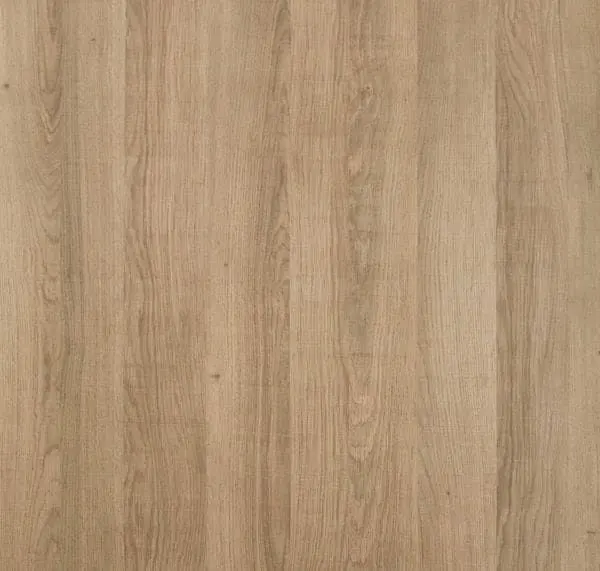

Color Name: Honeycomb Oak
Color Number: 1348
Manufacturer SKU: 1348
Price Range: $$$
Product Name: RAUVISIO Ingrain
Warranty: Limited Warranty

Material & Finish

Construction: Profile - PUR laminated face and back, REHAU LaserEdge, Board - PUR laminated face and back, Laminate - Continuous Pressure Laminate (CPL)
Content: Profile - Wood fiber laminate, multiple colors, Board - Wood fiber laminate, Multiple colors; Core - Particle board
Finish: Polished - Duo-gloss, Color matched

Availability & Procurement

Availability: Unavailable
Country Of Origin: United States

Technical Specifications

Edge End: Duo-Gloss REHAU LaserEdge
Overall Thickness: 4
Size: Pressed Panels: 49 in x 121 in x 3/4 in, 49 in x 121 in x 1/4 in; Cabinet Door - 3 in x 5 in (Min); Cabinet Door - 48 in x 119 in, Board - 49 in x 121 in x 19.5 mm, Laminate - 49 in x 120 in x 0.5 mm (Max); Cabinet Door - 8-7 / 8 in W x 11 in H (Min Shaker); Cabinet Door - 30 in W x 65 in H (Max Shaker); Top Edge - 1.0 mm Radius; Bottom Edge - 1.0 mm Radius; ABS Mirror gloss or Elegant matte - 15/16 in x 1.0 mm x 600 ft; ABS Mirror gloss or Elegant matte LaserEdge - 15/16 in x 1.2 mm x 600 ft; ABS Duo-edge LaserEdge - 43 x 1.0 mm x 100 M; CPL Laminate - 49 in x 121 in x 0.5 mm

Performance Metrics

Abrasion Wear Resistance: DIN 68861/T4 Scratch-resistance Tested. D/C result, per UNI EN 15186:2012, method B; Micro-Scratch Resistance - IHD-W-466 (Art. A) - Abrasion Resistance: D/C result, per UNI EN 15185:2011
Flammability: Fire Behaviour - DIN 4102/1 - B2 (normal combustibility)
Light Blocking: Unknown
Lightfastness: DIN EN ISO 4892-2, process B Tested. Level 6. DIN EN ISO 105 A02 Tested. Less than or equal to Level 4
Maintenance: Clean with a cotton dish towel and mild soap if needed. Avoid abrasive cleaners, solvent-based cleaners and harsh chemicals. Do not use brushes or scouring pads. REHAU is not responsible for any damage done by abrasive cleaning products or procedures

Sustainability

Human Health

Human Health Impact: CRI Green Label Plus Indoor Air Quality, Formaldehyde Free, Green Label Plus, Low Emitting/Low VOC

Climate Health

Climate Impact: CARB Compliant
