StaticWorx ShadowFX ESD - Solids | Product

Core Specs

General Information

Collection Name: Solids
Color Name: Huntington Ravine
Manufacturer SKU: 3-1619
Price Range: $$$$
Product Name: ShadowFX ESD - Solids
Warranty: Lifetime Warranty

Material & Finish

Backing: Permanent static-dissipative backing
Carpet Fiber Type: Type 6 6 Nylon
Construction: Tufted tip-sheared
Content: Nylon, Continuous Static Dissipative StaticWorx® 44 denier helix fiber
Dye Method Filter: Solution Dyed
Finish: Protekt2® Soil Stain Protection; Intersept® Preservative Protection
Format: Modular

Availability & Procurement

Availability: Unavailable
Country Of Origin: United States

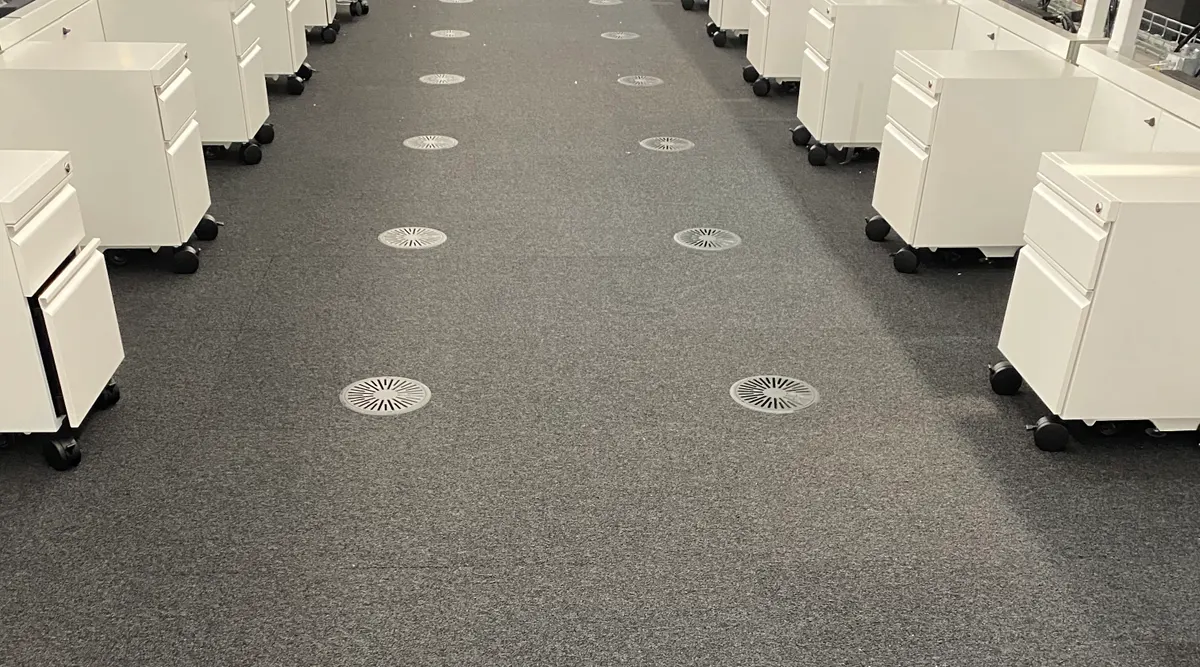

Custom Capabilities: Available in 2 ft x 2 ft for one-to-one access floor installation

Technical Specifications

Carpet Pile Height: 0.182 in Tufted Pile Height; 0.144 in Pile Thickness
Overall Thickness: 0.28
Pile Face Weight: 882
Yarn Tuft Details: 1/12 in gauge, 10.0 in tufted stitches per inch

Applications & Usage

Application Filter: Flooring|Flooring/Electrostatic Dissipative Flooring

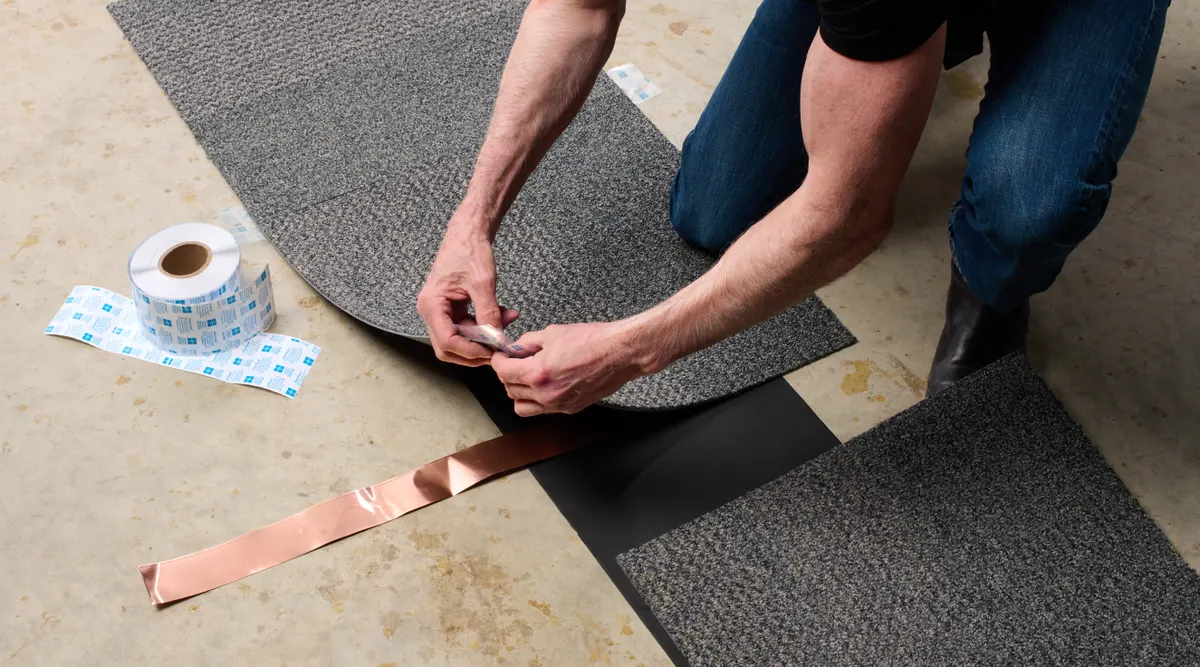

Installation: Use only StaticWorx-approved conductive adhesives. GroundTack pressure sensitive. TacTiles glue-free self-stick connectors for adhesive-free installation over raised access floors. Refer to Installation Instructions PDF for more details
Installation Direction: Monolithic

Performance Metrics

Flammability: ASTM E 648 Radiant Panel Class 1; ASTM E 662 Smoke Density = 450 ; Passes Methenamine Pill Test (DOC-FF1-70)
Light Blocking: Complete
Lightfastness: AATCC 16 – E - = 4.0 @ 60 AFUs
Surface Pile Density: 6,500 oz/yd³

Sustainability

Human Health

Human Health Impact: CDPH Standard Method v1.2-2017, CRI Green Label Plus Indoor Air Quality, Green Label Plus, Low Emitting/Low VOC
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Health

Emissions: Private Office Range of Total VOCs: 0.5mg/m³ or less; School Classroom Range of Total VOCs: 0.5mg/m³ or less
GWP Functional Unit: kg CO2e/m2

Circular Economy

Circular Economy: Recycled Content, Recycled Content - Post-Consumer, Recycled Content - Pre-Consumer

Certifications & Disclosures

LEED: May contribute to LEED Credits
VOC Emissions Testing Certificate: CRI Green Label Plus
