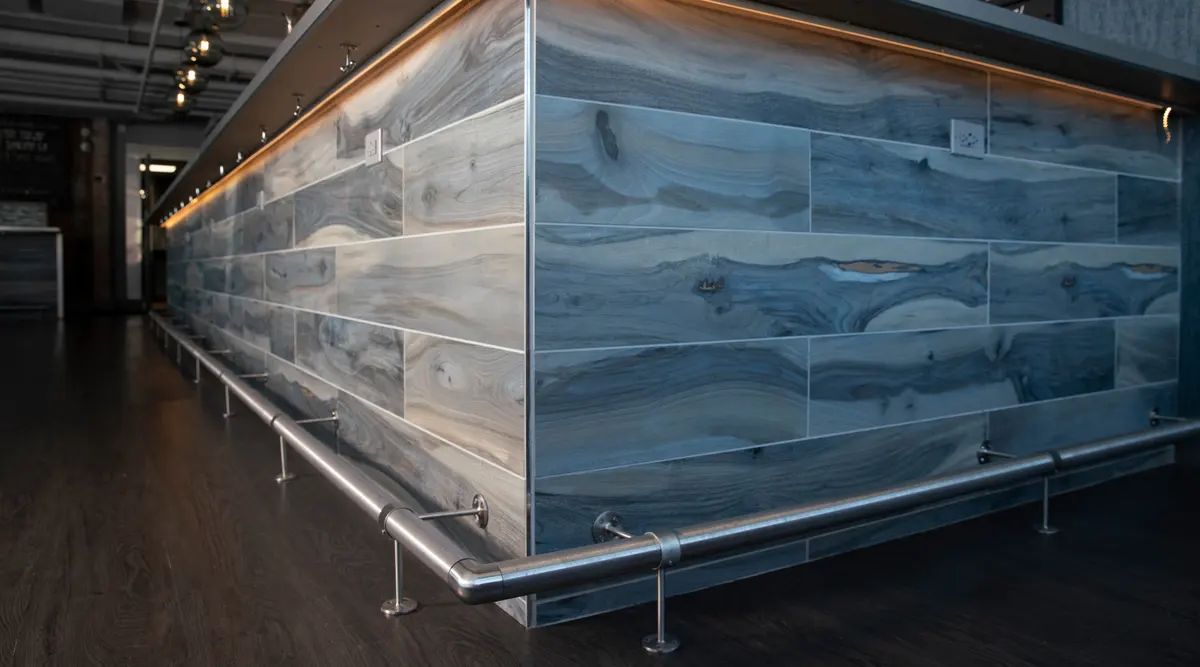

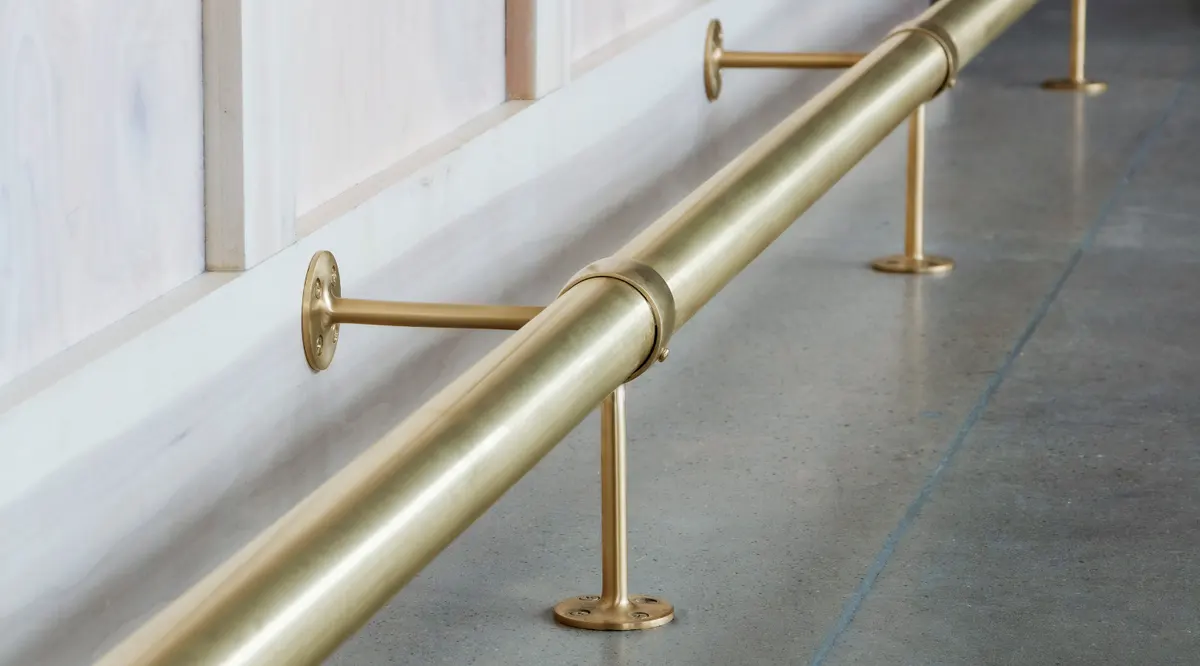

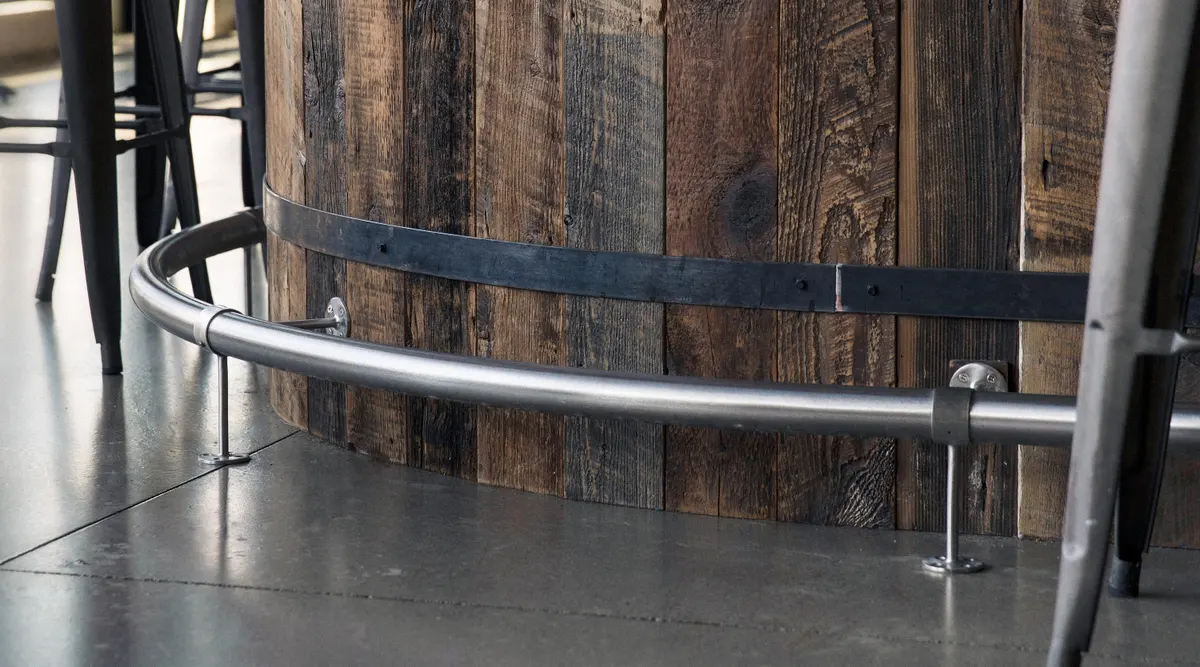

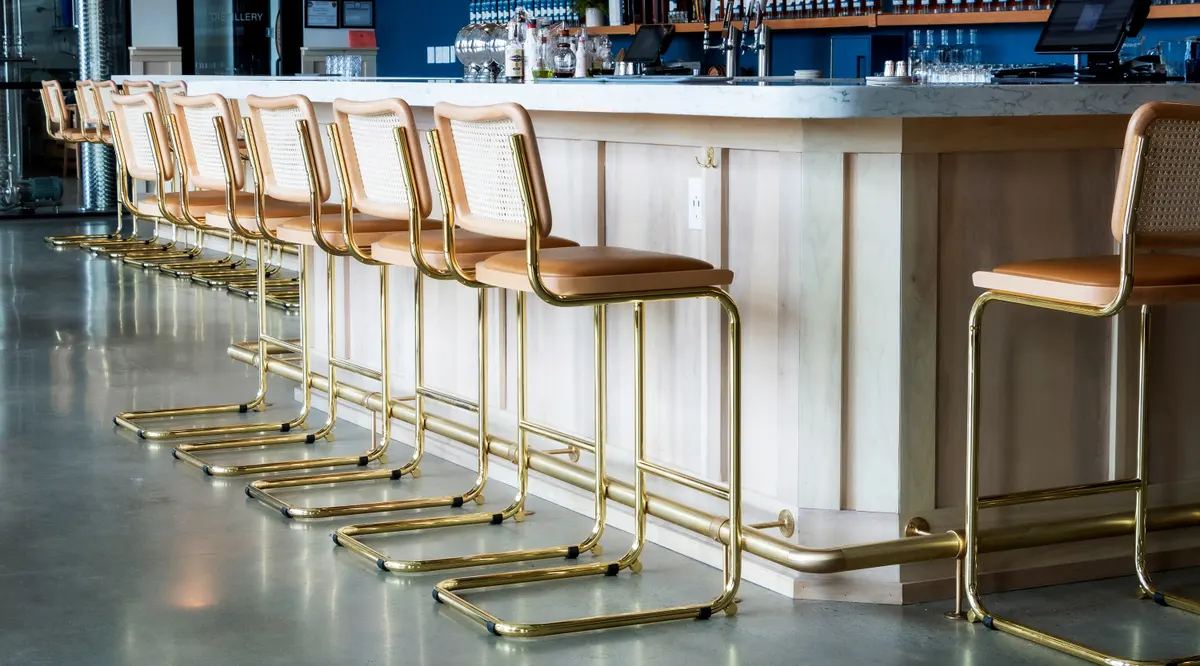

<ul> <li>Bracket arm mounts to the face of bar and floor</li> <li>Brackets should be used at both ends of rail tubing, plus one at every 4 ft increment</li> </ul>
Product Name

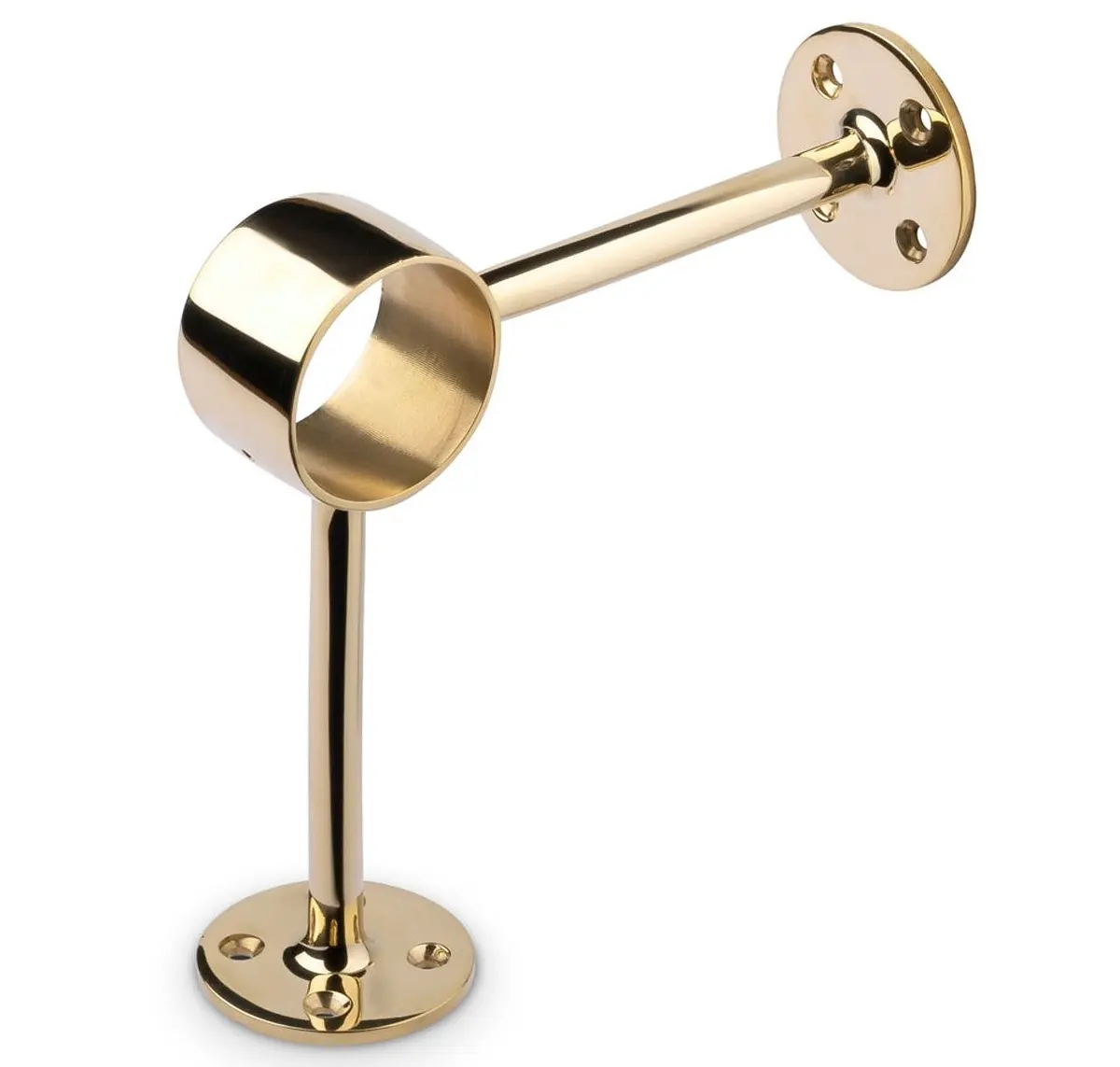

90 Degree Post Foot Rail Bracket - 2 in OD
Material & Finish
Content
Metal
Format
Modular
Availability & Procurement
Availability
Typically Stocked
Technical Specifications
Size
Bracket Width: 7.00 in, Bracket Height: 7.00 in, Opening Diameter: 2.01 in, Wall to Center of Tubing (Horizontal Center Point): 5.89 in, Floor to Center of Tubing (Vertical Center Point): 5.89 in
Applications & Usage
Application Filter
Flooring|Wall
Installation

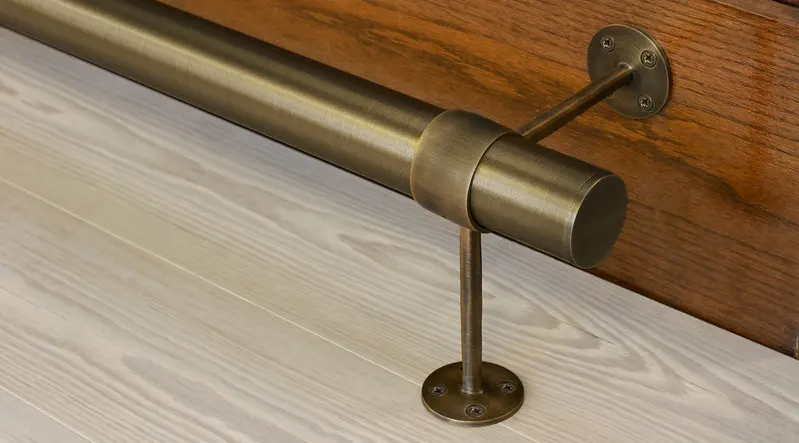

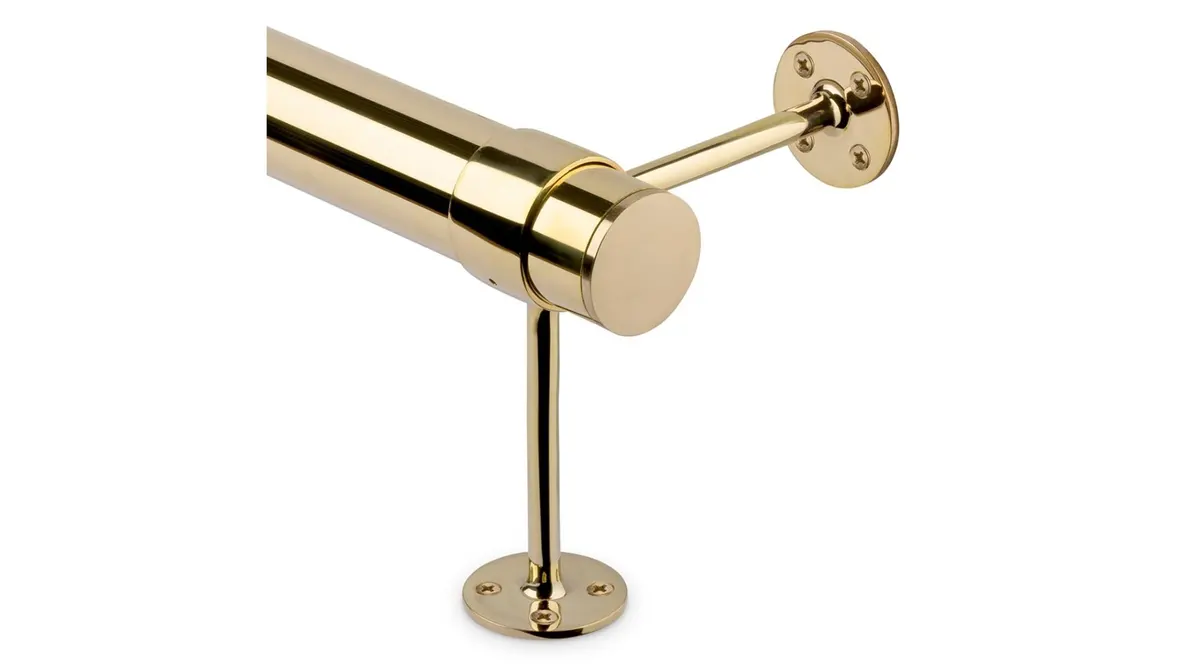

Measure & mark holes for mounting screws. Attach brackets to the face of the bar and floor with the 8 mounting screws. Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
