<ul> <li>Dimmable LED screw-in type E26 base A19 lamp; Lamps included for U.S. orders</li> <li>9.5w, 3000k, 800 lumen, 120v is standard </li> <li>Higher output options are 12.2w, 3000k, 1100 lumen, 120v and 17.5w, 3000k, 1600 lumen, 120v </li> <li>Fixtures are supplied with dimmable 120v LED lamps (U.S. only) and are compatible with TRIAC style dimmers such as a Lutron DV600P; Echo is not 0-10v dimming compatible </li> <li>Cylindrical frosted acrylic tube with removable white opal acrylic disk at bottom (for relamping). If direct (bottom) diffusion isn’t necessary, then disks can be removed permanently for increased light output</li> </ul>
Product Name

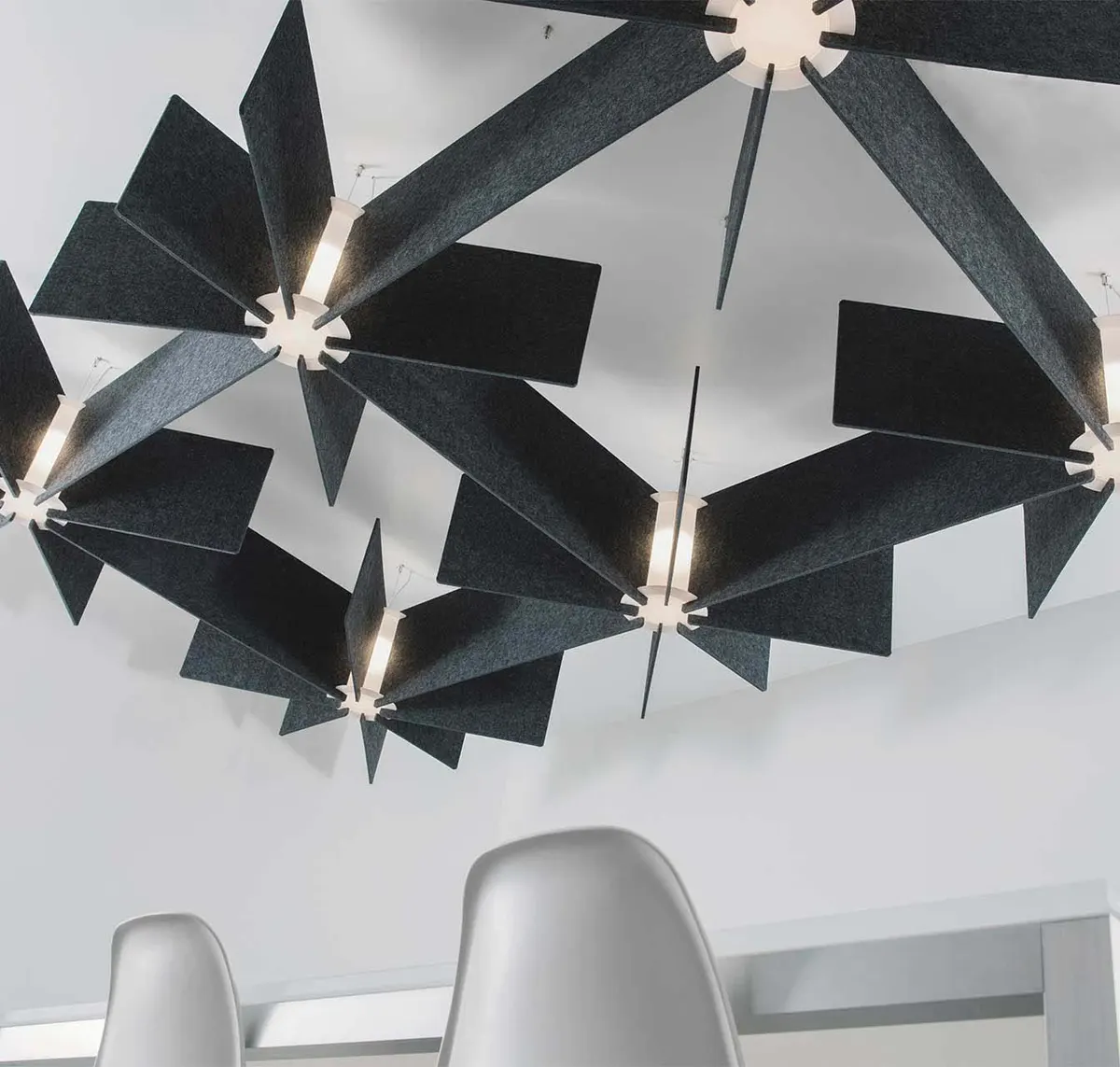

Acoustic Echo
Warranty
5 years
Material & Finish
Content
PET Felt
Availability & Procurement
Availability
Made to Order / Special Order
Country Of Origin
United States
Custom Capabilities
Custom sizing available upon request
Lead Time
6 weeks
Technical Specifications
Product Features
Customizable
Size
Available in 12 configurations with 8 or 12 fins. Refer to PDF attached for details
Applications & Usage
Application Filter
Ceiling|Lighting
Installation
12in-96in fully adjustable stainless steel aircraft cable suspension. Contact studio for additional lengths up to 20ft
Performance Metrics
Acoustics
NRC Rating of 1.15-1.30; ASTM C423; ISO 354
Light Blocking
Complete
Maintenance
The best way to remove airborne debris and dust from shades is to periodically vacuum. A Swiffer sheet or feathered duster can also be used for light dusting. Refer to PDF attached for details
