Acoustical Ceiling Cloud Transition

Name: Acoustical Ceiling Cloud Transition
Brand: Flannery, Inc.
SKU: 101954825

Metal Profiles

Ships from brand

Commercial

Cloud White

Sample size: 3.5 in x 5.8 in x 1 in

Ships in 2-5 days from brand

Product Features: Customizable
Size: "A" Height=4 in ; "B" Width=3/4 in; "A" Height=6 in ; "B" Width=3/4 in

Application Filter: Ceiling

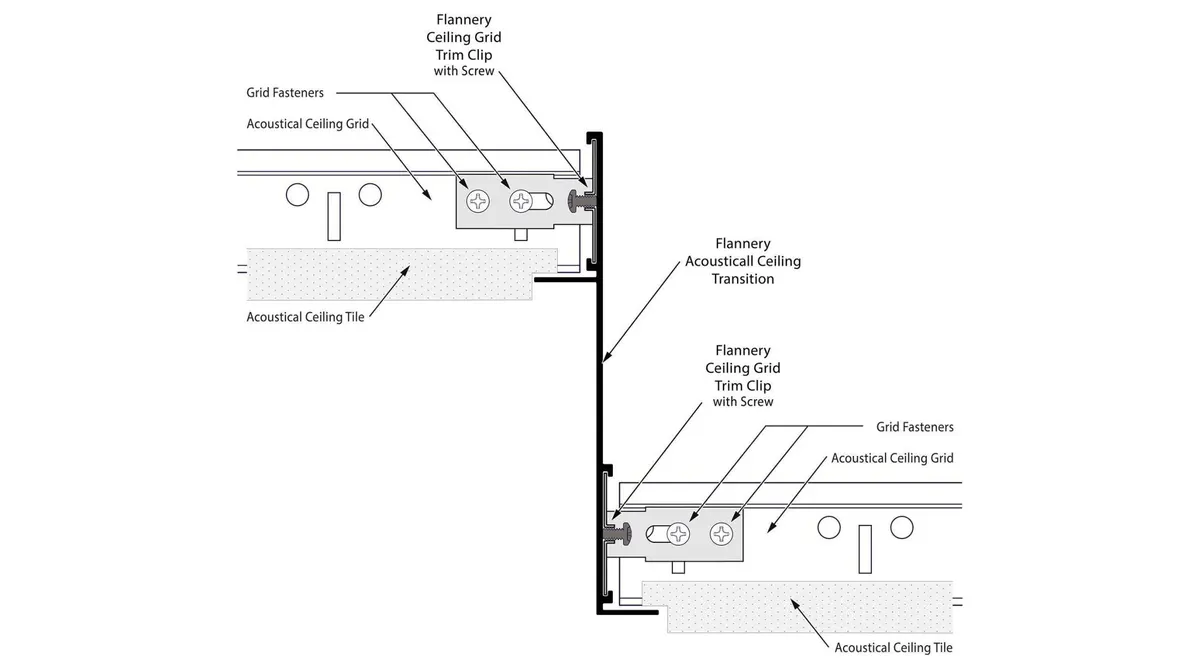

Installation: Connect Acoustical Ceiling Cloud Transition trims to the suspended ceiling grid using the Ceiling Grid Trim Clips included. Rotate the Ceiling Grid Trim Clip into the slots on the back of the Cloud Edge trim and tighten the lock screw. Then attach the Ceiling Grid Trim Clip to the acoustical ceiling grid. Repeat these steps again when attaching the lower half of the Acoustical Ceiling Cloud Transition trim to the other level of the acoustical ceiling grid. Use the included Ceiling Cloud Trim Splices to connect one piece of trim to the next for level and clean butt joints. All Cloud Edge Trims must be cut accurately and installed with tight, neat joints. Ceiling Cloud Splices, Use the included Ceiling Cloud Trim Splices to connect one piece of trim to the next for level and clean butt joints. All Cloud Edge trims must be cut accurately and installed with tight, neat joints. Manufacturer recommends that a carbide tip blade along with blade lubricant be used when cutting any aluminum trim
