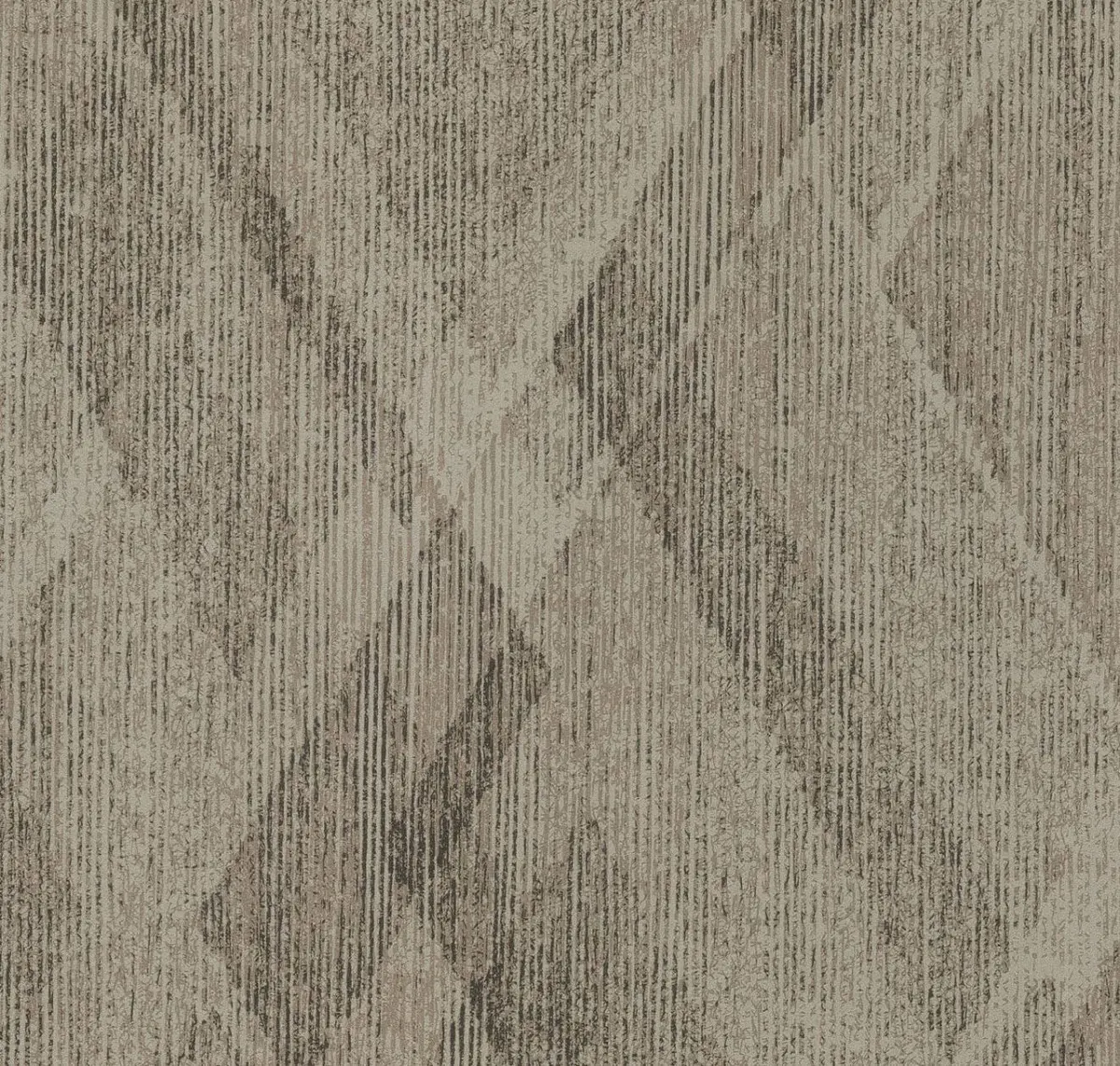

Printed patterns are shown at a reduced scale from representative segments of large sheets. Colors may differ slightly from the actual product
Material & Finish
Construction
Manufactured in a flat press by laminating paper saturated in melamine resin with phenolic-impregnated kraft layers at high pressure and heat. Panels are trimmed to size and the backs are sanded to facilitate bonding to a substrate. Material thickness is determined by the number of kraft layers bonded together
Content
Melamine-saturated decorative paper laminated to a phenolic-impregnated kraft paper core
Finish
Textured/Suede (SD). Alternatively, choose from 26 other finish options
Format
Panel / Sheet
Availability & Procurement
Availability
Typically Stocked, Limited Stock, Made to Order / Special Order, Stocked in North America
City Of Origin
Auburn
Country Of Origin
United States
Custom Capabilities
Other widths and thicknesses available upon request. ChemGuard, Hi-Wear, Fire-Rated, Marker Board, ThickLam, and ThruColor types available on request.
Technical Specifications
Dimensional Stability
Tested to standard NEMA/LD 3-2005 for dimensional change. Results varied between 0.25% - 0.30% in the machine direction and 0.45% - 0.60% in the cross direction depending on product type and thickness.
Edge End
Edges should be filed smooth and oriented towards the substrate to help prevent stress cracks and to minimize chipping
Impact Resistance
Tested to standard NEMA/LD 3-2005 for ball impact resistance. Results varied between 40in-66in depending on product type and thickness
Overall Thickness
48
Product Features
Customizable
Size
30 in x 96 in, 30 in x 120 in, 30 in x 144 in, 48 in x 96 in, 48 in x 120 in, 48 in x 144 in, 60 in x 96 in, 60 in x 120 in, 60 in x 144 in
Use carbide-tipped blades and router bits for cutting purposes. Kepp feed rates slow and tool speed high. The inside corners of cutouts should have a minimum radius of 0.125in and be filed smooth. When fasteners are required, it is advisable to drill an oversized hole through the laminate first. These strategies reduce the likelihood of stress cracks. Refer to the Postforming Technical Bulletin for postforming guidance
Recommended Adhesive
Solvent or water-based contact cement, white glue (PVA), epoxy, or hot melt glue. Consult your adhesive supplier for specific application requirements
Suitable Substrates
Medium to high density fiberboard, particleboard, or metals are suitable substrate options. Do not glue directly to plaster walls, gypsum wallboard, or concrete. The use of a backing sheet is recommended to minimize warpage. Apply to the opposite side of the substrate. The thickness of the backing sheet should be relatively equal to the thickness of the decorative laminate on the face of the assembly.
Performance Metrics
Abrasion Wear Resistance
Tested to standard NEMA/LD 3-2005 for wear resistance. Result of 1,000 cycles
Flammability
Tested to standard ASTM E84, UL 723 and CAN/ULC-S102-M. Results dependent on the HPL product type, bonding substrate, and adhesive. See Technical Bulletin for additional information
Flexural Strength
F39 Bending Radius: 14 mm (NEMA/LD 3-2005 3.14) F28 Bending Radius: 11 mm (NEMA/LD 3-2005 3.14)
Light Blocking
Complete
Lightfastness
Tested to standard NEMA/LD 3-2005 for Light Resistance. Resulted in no effects
Maintenance
Refer to Care and Maintenance Guide PDF attachment for details
Stain Resistance
Tested to standard NEMA/LD 3-2005 3.4 for Stain Resistance. Resulted in No effects for Stain 1-10. Resulted in No Effects for Stains 11-15.
Water Resistance
Tested to standard NEMA/LD 3-2005 3.5 for Boiling Water Resistance. Resulted in No Effects
Sustainability
Human Health
Human Health Impact
UL GREENGUARD GOLD, Declare Product Label - LBC Red List Approved, UL GREENGUARD, Low Emitting/Low VOC, CDPH Standard Method v1.2-2017
VOC Emissions Testing Methodology
CDPH / CHPS 01350 Compliant
Climate Health
Emissions
Low emitting
Ecosystem Health
Ecosystem Health
Forest Stewardship Council (FSC) Certified|Forest Stewardship Council (FSC) Certified - Chain of Custody
Social Health & Equity
Social Equity Impact
Forest Stewardship Council (FSC) Certified, Forest Stewardship Council (FSC) Certified - Chain of Custody
Circular Economy
Circular Economy
Declare Product Label - LBC Red List Approved, Forest Stewardship Council (FSC) Certified
