Ascend Peaks Acoustic Baffle Array

Name: Ascend Peaks Acoustic Baffle Array
Brand: SoundPly
SKU: 101179577

Suspended Ceilings

Overnight

Commercial & Residential

Manufacturer SKU: ASCEND_PEAKS
Price Range: $$
Product Details: <ul><li> MicroPerfection Technology is a groundbreaking method of sound absorption that increases effectiveness as noise levels rise. The result is a more comfortable, natural feeling environment</li><li>Patented SPCoreô Technology is the reason why SoundPly products are remarkably stronger, more stable, and weigh significantly less than other acoustic products</li></ul>
Product Name: Ascend Peaks Acoustic Baffle Array
Sample Note: Please select one product sample and a wood option for color reference purposes
Subbrand Name: Navy Island
Warranty: 1 year from date of delivery
Manufacturer Notes: Hanging kits to be ordered separately

Construction: Microperforated; Baffles contain either a non-combustible rockwool or fiberglass core; A thin (less than .025 inches) layer of veneer, paint, or film finish is applied
Content: Wood

Length: 4.4
Size: Leg lengths available in 6 in, 10 in, 12 in, 15 in, up to 24 in. Lengths available in 48 in, 60 in, 96 in, 120 in, 144 in
Total Weight: 2.0-3.5 lbs per sq ft

Application Filter: Ceiling

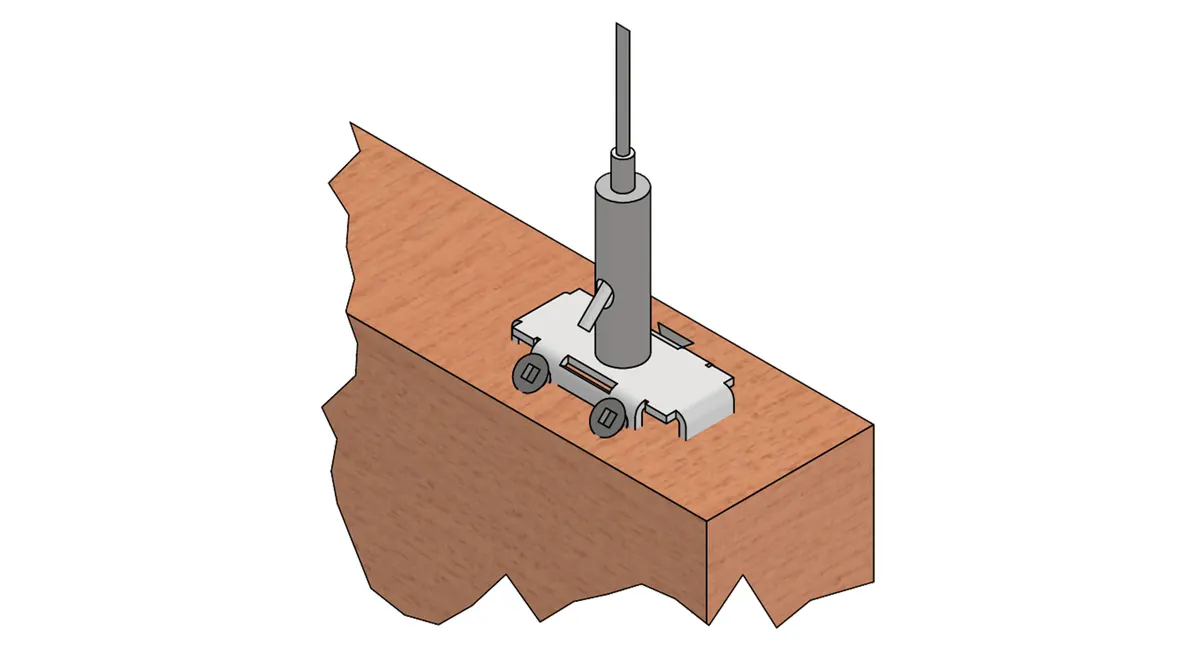

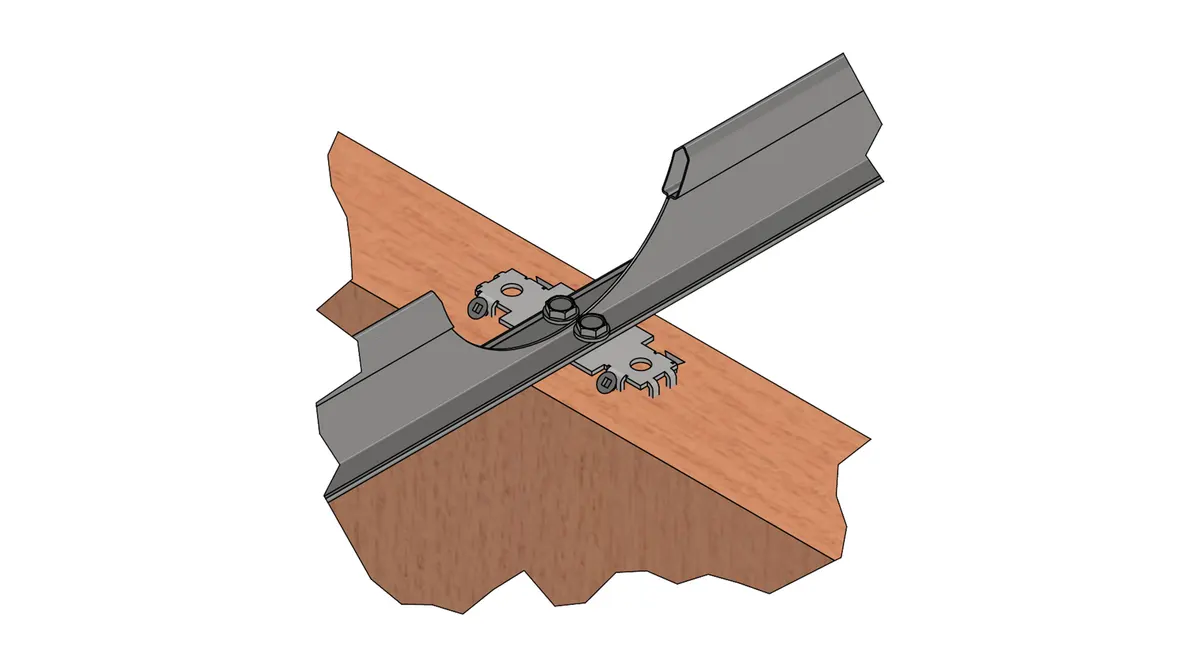

Installation: Direct or Cable Suspension. Refer to the Installation PDF for more details

Acoustics: ASTM C423 Type F-6 Mounting, RF Core has NRC 0.90 and LR Core has NRC 0.80
