<ul> <li>Attaches to the face of the bar from the rear</li> <li>Brackets should be used at both ends of rail tubing, plus one at every 4 ft increment</li> <li>Mounting screws & bolt assembly for back of bar included</li> </ul>
Product Name

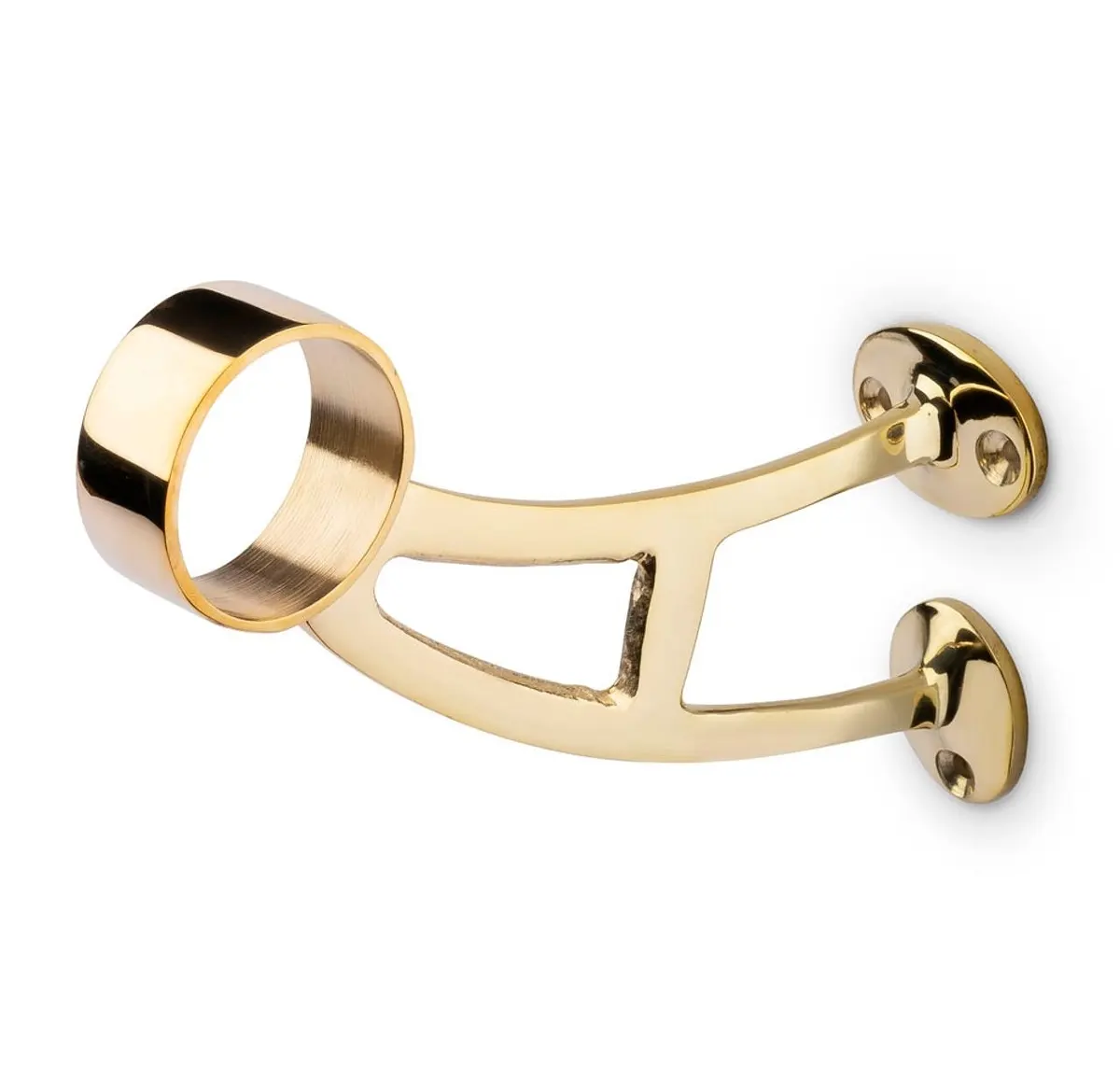

Bar Mount Foot Rail Bracket - 2 in OD
Material & Finish
Content
Metal
Format
Modular
Availability & Procurement
Availability
Typically Stocked
Technical Specifications
Size
Bracket Width: 8.00 in, Bracket Height: 6.76 in, Opening Diameter: 2.01 in, Wall to Center of Tubing (Horizontal Center Point): 6.94 in, Floor to Center of Tubing (Vertical Center Point): 5.70 in
Applications & Usage
Application Filter
Flooring|Wall
Installation
Measure & mark holes for mounting screws and for the threaded bolt. Drill hole in bar diewall for the threaded rod. Attach bracket from behind bar face using rod and secure with bolt and washer. Attach brackets to the face of the bar with the 3 mounting screws. Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
