Acoufelt design engineers stand ready to serve on your design team, marrying their deep understanding of the art and science of sound management to your vision with custom cutting, printing, shaping, and technical advice to soundscape your designs
Lead Time
3-6 Weeks
Manufacturing Location
United States
Technical Specifications
Product Features
Customizable
Size
Height: 4 in up to 12 in H (1 in in crements); Width: 15 in; Depth: 2 in, 3 in; Length: 48 in, 96 in
Total Weight
12 mm, 0.49 lb./ft² (±10%)
Applications & Usage
Application Filter

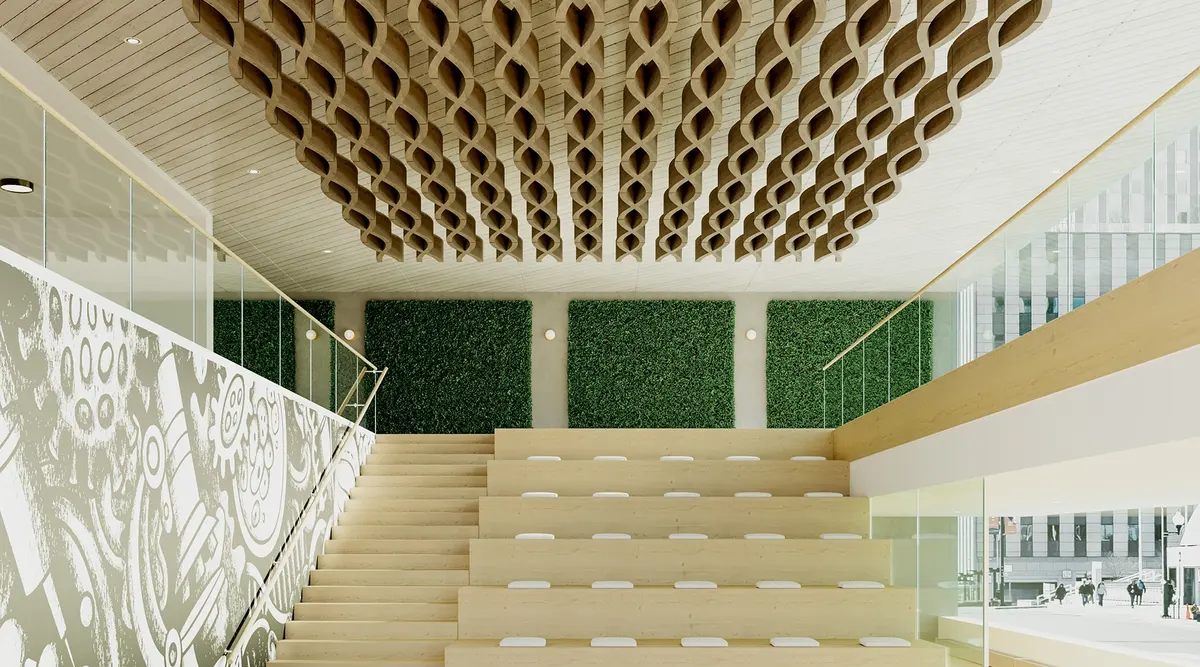

Ceiling
Performance Metrics
Acoustics
NRC Rating - 1.65; Test Method: ASTM E795-16; Install Method: J-600; Rating Method: ASTM C423-17; Mounting Method: Sample tested 5 baffles 110 in L x 12 in D x 3 in T, hanging 600mm from floor and 152mm from each other; SAA Rating: 1.68
Light Blocking
Complete
Sustainability
Human Health
Human Health Impact
Low Emitting/Low VOC, Formaldehyde Free, Health Product Declaration (HPD)
VOC Emissions Testing Methodology
CDPH / CHPS 01350 Compliant
Climate Health
Climate Impact
ISO 14001 Environmental Management System (EMS), Sustainability Action Plan, Environmental Product Declaration (EPD), 100% Recyclable
