Intended for commercial project specification only.
Series Name
Light Emitting
Warranty
1 Year
Material & Finish
Construction

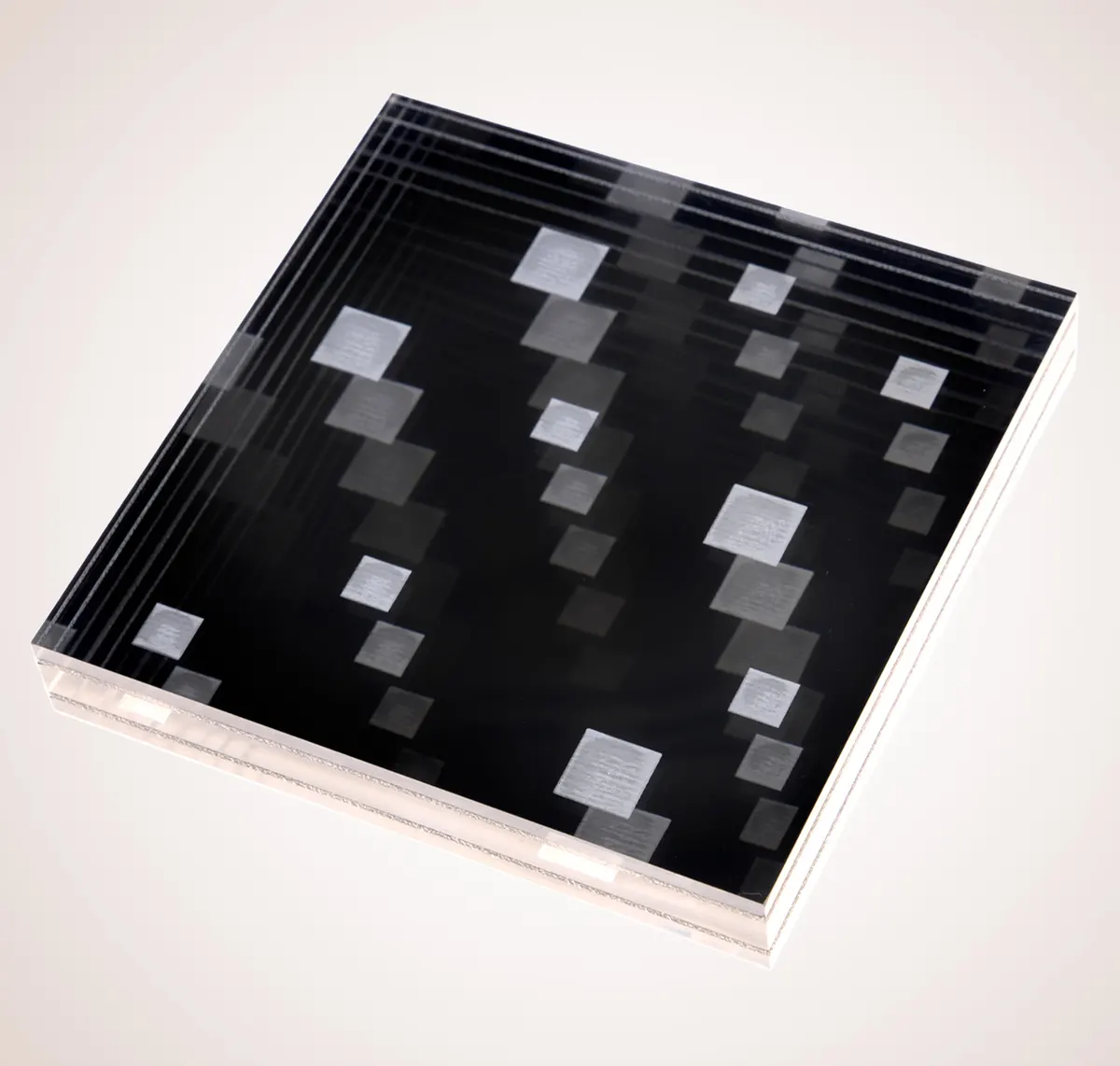

An acrylic core is laminated between two glass panels. The core contains a pattern
Content
Acrylic
Finish
Mirror, Transparent
Format
Panel / Sheet
Availability & Procurement
Availability
Made to Order / Special Order
City Of Origin
Ypsilanti
Country Of Origin
United States
Lead Time
Differs due to customization. Contact manufacturer for additional information
State Of Origin
Michigan
Technical Specifications
Dimensional Stability
ASTM D696 Coefficient of linear thermal expansion 0.000005 in/in ?° F
Impact Resistance
Passes ANSI Z97 Safety Glass Impact Test
Overall Thickness
8
Total Weight
2 lbs/sq. ft - 5.25 lbs/sq. ft. (10 kg/m2 - 26 kg/m2)
Applications & Usage
Application Filter
Countertop|Decor|Partition|Wall
Installation
Installation method varies by application. It is recommended that installation be completed by a trained professional. See Horizontal Panel Installation PDF and Vertical Installation Guide Z-Clips PDF for more details.
Performance Metrics
Flammability
Acrylic clad option rated ASTM E84 Class C. Polycarbonate clad option rated ASTM E84 Class B. See EPD for additional information
Hardness
Mohs Scale 5-6.5
Light Blocking
Complete
Maintenance
Wipe down regularly with a microfiber cloth in conjunction with water/dish soap solution or a glass cleaner, such as Sparkle Glass Cleane. Windex is not recommended. For many interior vertical applications, a periodic dusting is all that is required. Do not use solvents, alcohols, highly alkaline cleaners, or strong chemicals or abrasives like Windex, Ajax, and 409
Sustainability
Human Health
Human Health Impact
CDPH Standard Method v1.2-2017, Health Product Declaration (HPD), Low Emitting/Low VOC
VOC Emissions Testing Methodology
CDPH / CHPS 01350 Compliant
Climate Health
Climate Impact
Environmental Product Declaration (EPD)
Emissions
CAL 01350 Tested. No VOC emissions during manufacture or life cycle of product
Circular Economy
Circular Economy
Environmental Product Declaration (EPD), Health Product Declaration (HPD)
