<ul><li>Integrated lighting results in clean design as a stand-alone fixture or in conjunction with SoundPly Panels, Planks, Baffles or Beams</li><li>Patented SPCore acoustic technology delivers industry's highest sound absorption measurably better than felt, foam, or fabric</li><li>Smooth dimming down to minimum 1% (0-10v)</li><li>Simple to install suspension and mounting hardware</li></ul>
Product Name
Cella Lit Intersect Acoustic Baffle Array
Sample Note
Please select one product sample and a wood option for color reference purposes
Subbrand Name
Navy Island
Warranty
1 year Housing; 5 year Luminaire
Manufacturer Notes
Hanging kits to be ordered separately
Material & Finish
Construction
Microperforated; Baffles contain either a non-combustible rockwool or fiberglass core; A thin (less than .025 inches) layer of veneer, paint, or film finish is applied
Content
Wood
Availability & Procurement
Availability
Made to Order / Special Order
City Of Origin
Saint Paul
Country Of Origin
United States
Lead Time
6-8 weeks from completed shop drawings
Manufacturing Location
Minnesota, United States
Technical Specifications
Length
4.4
Total Weight
2.0-3.5 lbs per sq ft
Applications & Usage
Application Filter
Ceiling|Lighting
Installation

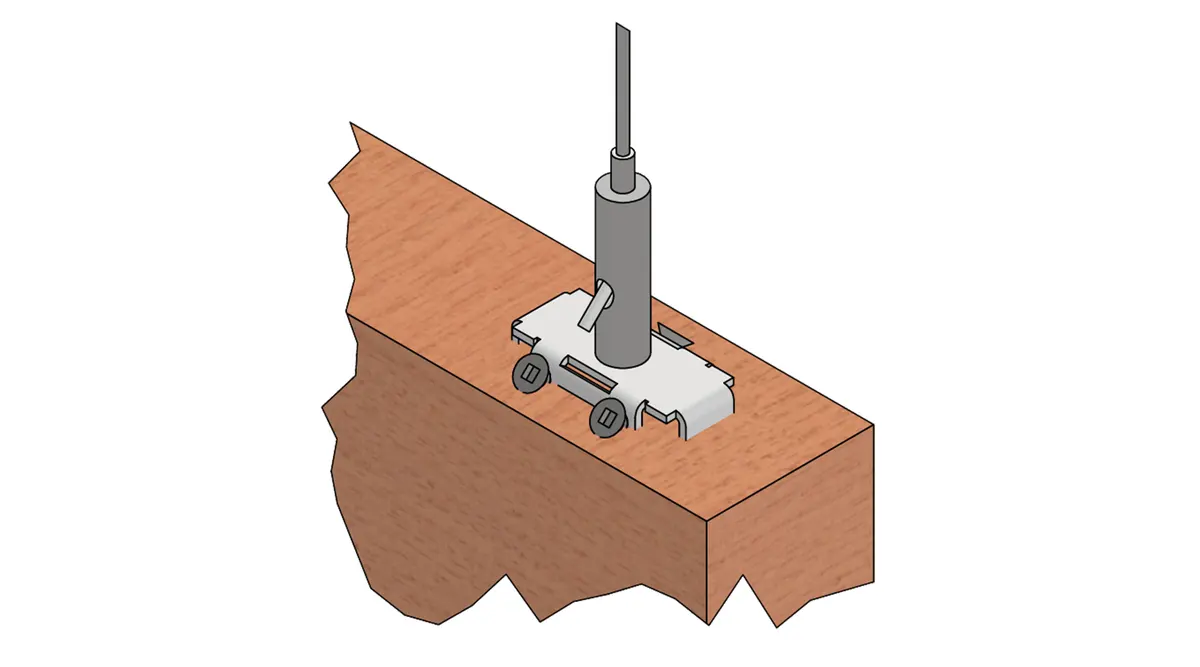

Pendant, suspended by aircraft cable. Refer to the Installation PDF for more details
Performance Metrics
Acoustics
ASTM C423 Type F-6 Mounting, RF Core has NRC 0.90 and LR Core has NRC 0.80
Light Blocking
Complete
Maintenance
Wipe clean with slightly damp cloth. Avoid scrubbing or applying heavy pressure. Routine cleaning and dust removal can be acomplished with a soft bristle brush and vacuum. Refer to the Maintenance PDF attached for more details
Sustainability
Human Health
Human Health Impact
Antimicrobial free, CDPH Standard Method v1.2-2017, Crumb Rubber Free, Crystalline Silica Free, Ethylene Glycol Free, Halogenated Flame Retardants Free, Health Product Declaration (HPD), Hexavalent Chromium Free, Intertek Clean Air Certified, Intertek Clear Air - Gold, PFAS free, PFOS Free, Precautionary List Free, Radon Free, REACH Compliant, SCS No Added Formaldehyde, SCS No Added Urea Formaldehyde
VOC Emissions Testing Methodology
CDPH / CHPS 01350 Compliant
Ecosystem Health
Ecosystem Health
Forest Stewardship Council (FSC) Certified|Forest Stewardship Council (FSC) Certified - Chain of Custody|Forest Stewardship Council (FSC) Certified - Responsible Forestry
Social Health & Equity
Social Equity Impact
Forest Stewardship Council (FSC) Certified, Forest Stewardship Council (FSC) Certified - Chain of Custody, Forest Stewardship Council (FSC) Certified - Responsible Forestry, Made in USA, SBE: Small Business Enterprise
Sustainability Action Plan
Sustainability Action Plan
Circular Economy
Circular Economy
Forest Stewardship Council (FSC) Certified, Health Product Declaration (HPD), Recycled Content, Recycled Content - Post-Consumer, Recycled Content - Pre-Consumer
