<ul> <li>Exposes the door's hinge</li> <li>Designed to optimize space and organization</li> <li>Multiple colors and finishes for doors and bodies</li> <li>Panels and doors are scratch-resistant</li> <li>Various lock options</li> <li>Easy to install and flexible configurations</li> <li>Doors open 180 degrees by means of self-lubricating hinges</li> <li>Throughout the length of each door, profiles are equipped with rubber gaskets, acting as shock absorbers</li> <li>Door numbering is laser printed on stainless steel plates or, on special order, printed/etched directly onto the cHPL doors</li> <li>Standard lockers include an adjustable base consisting of leveler legs, as well as an optional base</li> <li>All locker components come with pre-machined holes for fasteners and extrusions</li> <li>Made of non-porous materials that maintain hygienic environments</li> </ul>
Product Name

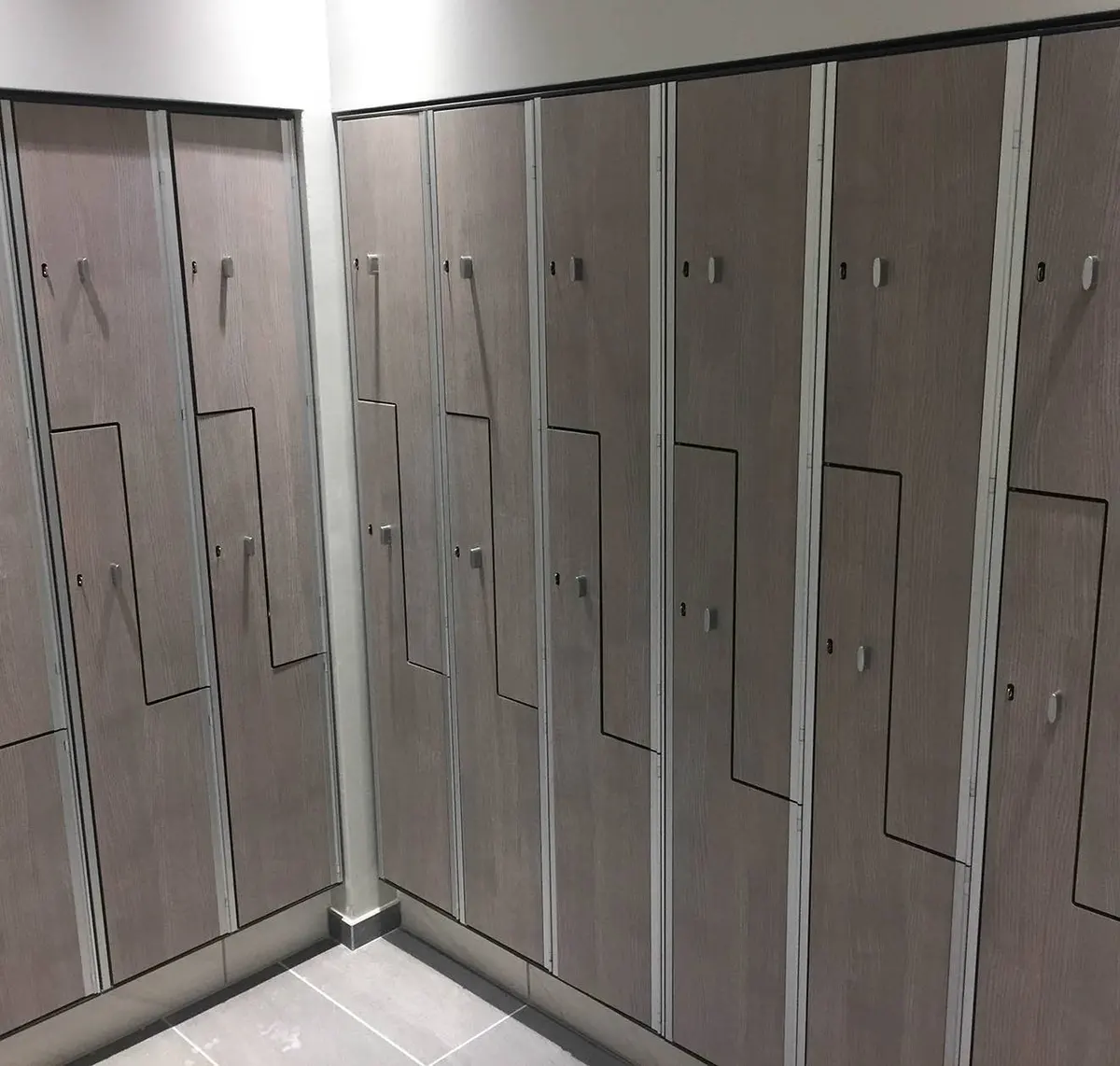

chplLOCKERS > Exposed Hinge
Sample Note
Intended for commercial specification only.
Series Name
CARVART By Soema
Warranty
2 year limited warranty
Material & Finish
Content
Laminate
Availability & Procurement
Availability
Made to Order / Special Order
Country Of Origin
Italy
Custom Capabilities
Highly configurable. Specify custom sizes, finishes, colors, printed graphic, locks, numeric face plates, ventilation holes, internal coat racks, hat shelves and shoe shelves available by request. Choose between a flat or sloping hood. CARVART has a solution for virtually any project’s design, structural or performance needs
Technical Specifications
Product Features
Customizable
Size
A series of lockers can consist of an “unlimited” number of columns. The total length of a series of lockers is given by the sum of the width of each column plus 7/16? to be added at the beginning and at the end of the series. Choose a height of 73.25in or 37.25in. Overall depth is 19.8125in. Refer to local code and structural requirements for material thickness recommendation (CARVART can accommodate 0.25in nominal). Additional information available within the Specification sheet
