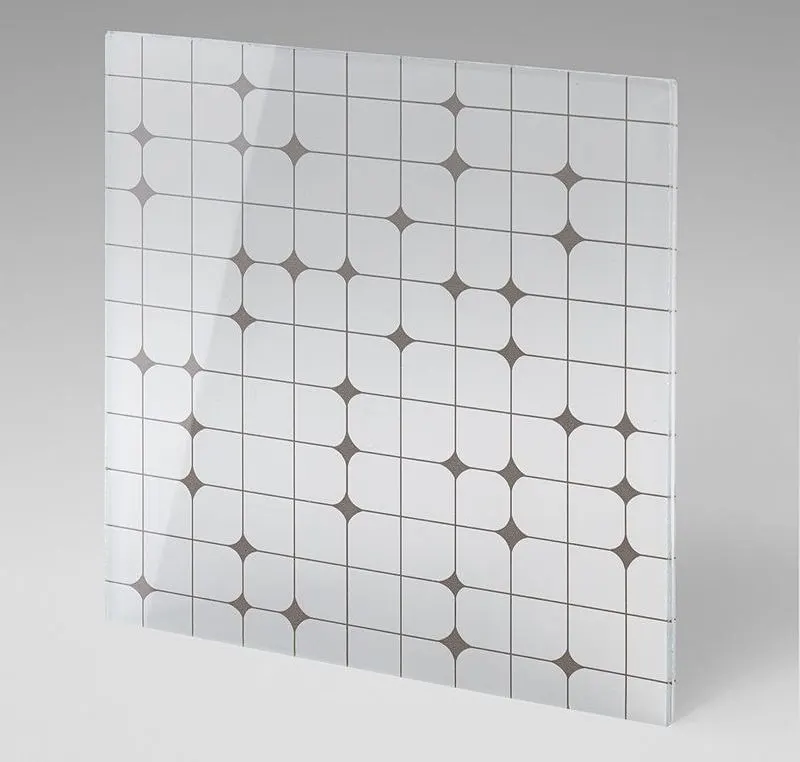

Decorative polyurethane interlayers are laminated between two glass panels
Content
Laminated, Low-Iron
Finish
Satin is an etched finish that provides diffusion and privacy. Mirror available as one side, annealed only
Format
Panel / Sheet
Availability & Procurement
Availability
Made to Order / Special Order
Country Of Origin
United States
Custom Capabilities
Custom select color, pattern, interlayer, and type of glass
Lead Time
5 weeks
Manufacturing Location
Salt Lake City, Utah
Technical Specifications
Edge End
Options include Seamed, Flat, Pencil, Bullnose, Mitered, Beveled, and Waterjet edge profiles. Not all edge profiles are available on tempered lites. In exterior applications, fully glazed (framed and sealed) designs are highly recommended
Overall Thickness
0.8125
Product Features
Customizable
Size
Up to 48 in x 120 in for Color, 60 in x 120 in for Digital; Minimum size available is 8 in x 12 in
Applications & Usage
Application Filter
Decor|Partition
Performance Metrics
Flexural Strength
ASTM D790 tested for Flexural Strength. Result of 12,000 psi.
Light Blocking
Complete
Maintenance
All dirt and residues that appear on interior or exterior glass surfaces should be cleaned thoroughly. Cleaning should begin with soaking the glass surfaces with clean water and soap to loosen dirt and debris. Using a mild, non-abrasive commercial window washing solution, uniformly apply the solution to the glass surfaces with a brush, strip washer or other non-abrasive applicator. Immediately following the application of the cleaning solution, a squeegee should be used to remove all cleaning solution from the glass surface. Care should be taken to ensure that no metal parts of the cleaning equipment come in contact with the glass surface. All water and cleaning solutions should be dried from the window gaskets and seals to avoid degradation of these materials
