10 year warranty; Excludes kinetic or custom applications
Material & Finish
Construction

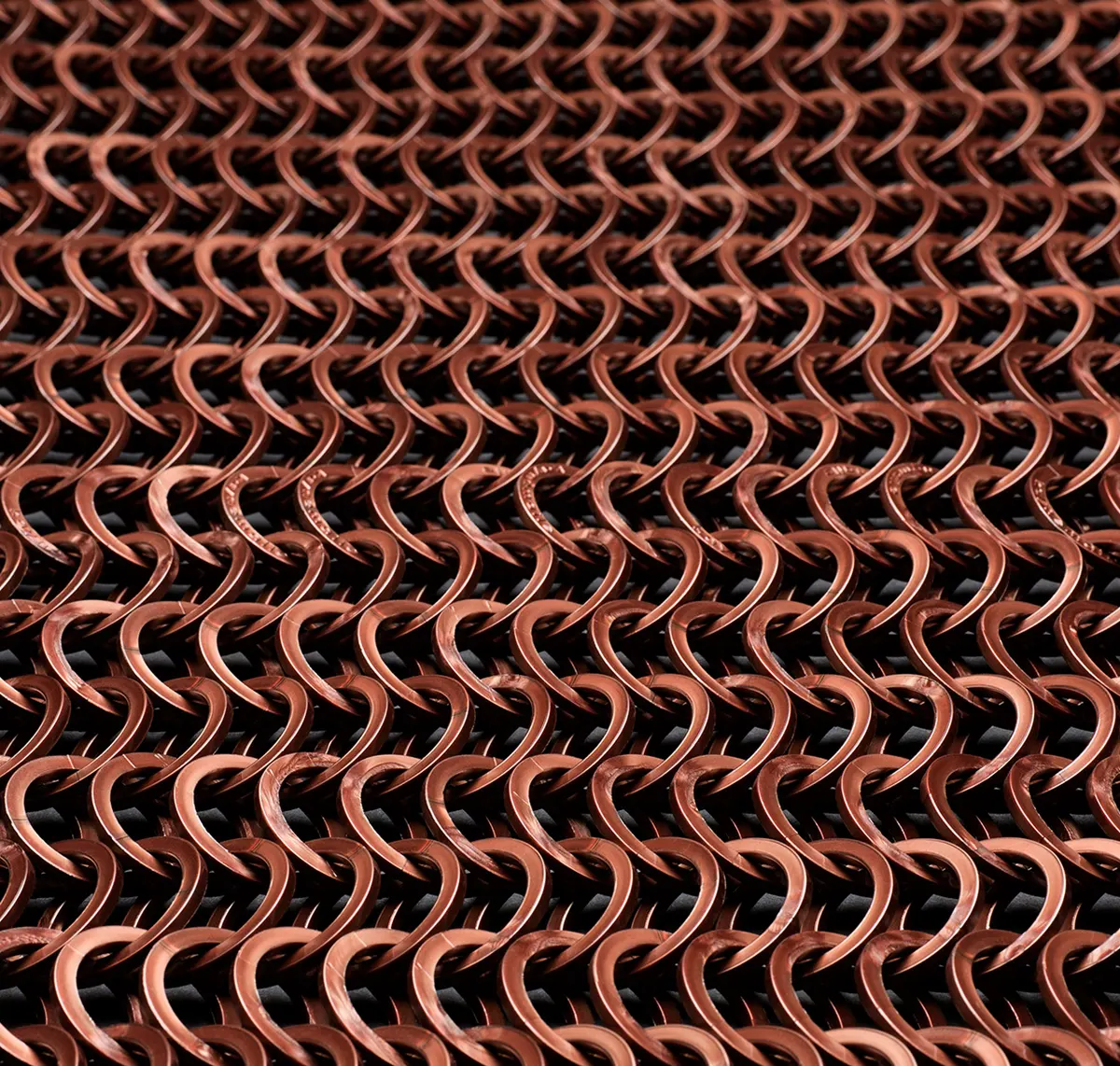

Interlinked rings
Content
100% UV Stabilized Makrolon® RE Polycarbonate
Finish
Gloss
Opacity Level Openness
The visual open area is approximately 25%. The physical open area is approximately 80%. This means air compliant movement can be maintained in interior spaces
Availability & Procurement
Availability
Made to Order / Special Order
Country Of Origin
New Zealand
Custom Capabilities
Unlimited in size. Kaynemaile exterior mesh comes in a range of solid colors
Lead Time
Lead times are confirmed on quotation. Expect 3-6 weeks depending on application
Technical Specifications
Diameter
1.1
Impact Resistance
Astron burst testing with a point load area of approx. 32mm (1.5") on small 140 x 140mm (5 1/2" x 5 1/2") samples show a peak resistance of 279kg (615lb). Note: The accumulated strength of seamless mesh increases proportionately with the size of the panel
Overall Thickness
15
Product Features
Customizable
Size
Kaynemaile's RE/8 mesh screens are not restricted by panel size - screens can be made to any height or width without joins or gaps
Refer to Installation Instructions PDF attachment for details
Performance Metrics
Flammability
ASTM E84 Class A, Passes NFPA 285, NFPA 286, NFPA 268, Conforms with section 803.12 stability at 200°F, Flame Spread Index - 5, Smoke Developed Index - 350, Compliant with 2018 IBC section 2606 CC1 Classification, Achieved a Group 1S in the AS/ISO 9705, ASTM D 2843: Smoke Index - 70.9, ASTM 635 HB-CC1, The FR-V0 material is rated as self-extinguishing. ASTM D 1929 Self-Ignition Temperature 968°F (520°C, ASTM D 1929 Flash Ignition Temperature 842°F ((450°C)
Light Blocking
Unknown
Lightfastness
Material is UV stabilized and independently lab tested by the Building Research Association of New Zealand (BRANZ). Results show the minimal deterioration of the mesh after 2000 hours of continuous testing
Maintenance
Refer to Care, Maintenance and Warranty Information PDF attachment for details
Performance
Cd = 0.8, which is 40% less than an equivalent two-dimensional or woven mesh
Sustainability
Human Health
Human Health Impact
CDPH Standard Method v1.2-2017, Low Emitting/Low VOC, Zero VOC
VOC Emissions Testing Methodology
CDPH / CHPS 01350 Compliant
Climate Health
Climate Impact
100% Recyclable, ISCC Certified, Life Cycle Assessment (LCA)
