Moz Designs Inc. Corrugated | Product

Core Specs

General Information

Collection Name: Corrugated

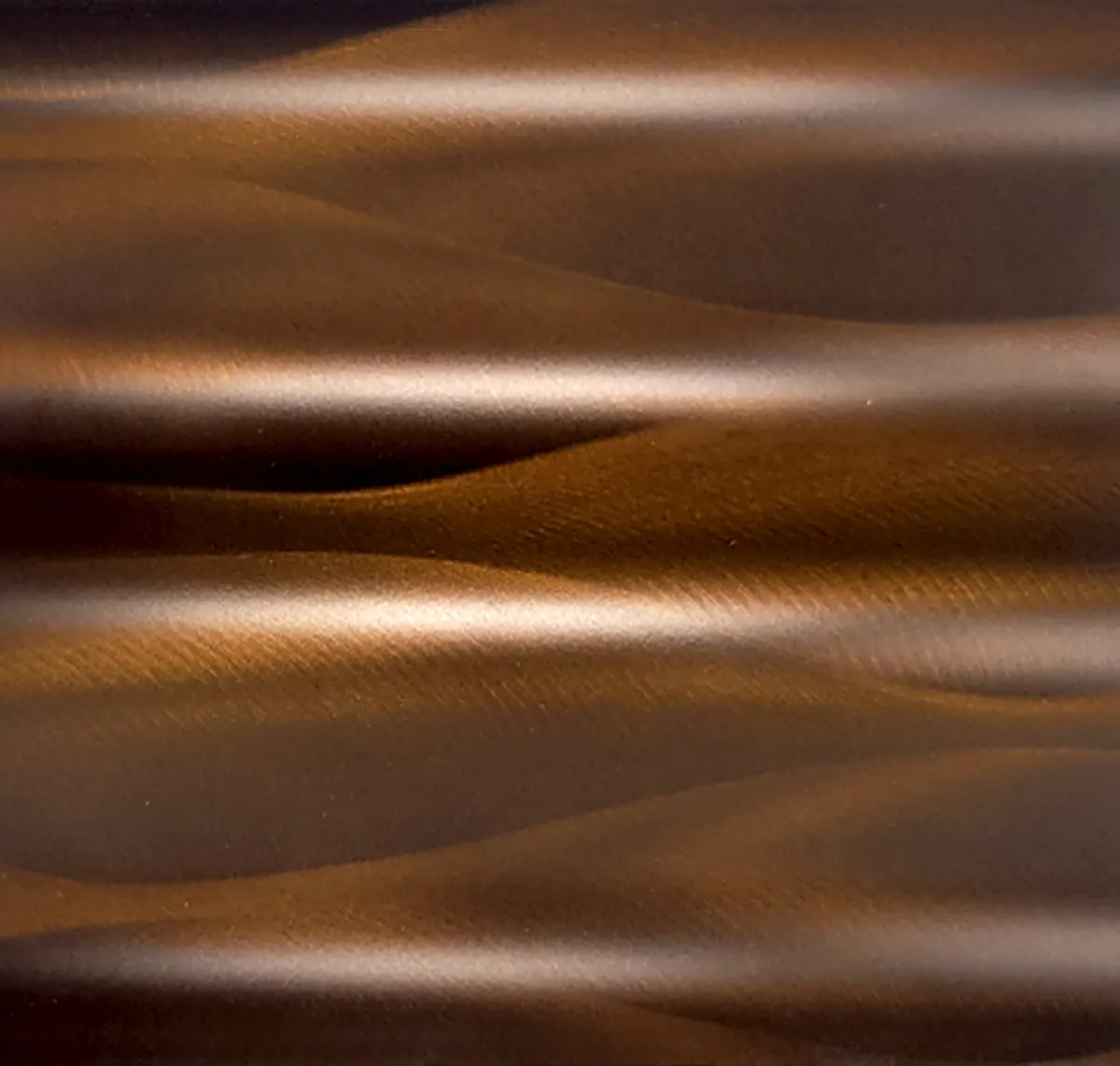

Color Name: Classic Medium Bronze Kelp Flat
Manufacturer SKU: M10010514
Price Range: $$
Product Name: Corrugated
Warranty: 5 year warranty for exterior applications. Ultra Durable Exterior finishes offer a 10 to 20 year warranty. For additional information, refer to warranty section of Technical Spec document.

Material & Finish

Construction: Corrugated and digitally printed
Content: Solid-Core Aluminum
Finish: Standard Polycoat Finish (Available in Gloss, Matte)
Format: Panel / Sheet

Availability & Procurement

Availability: Made to Order / Special Order
City Of Origin: Oakland
Country Of Origin: United States
Custom Capabilities: Custom options available upon request
Lead Time: Standard 3-4 week lead time on all orders with fewer than 20 sheets. Larger orders will receive a custom lead time
State Of Origin: California

Technical Specifications

Length: 4
Overall Thickness: 8
Product Features: Customizable
Size: 44.5 in x 96 in or 44.5 in x 120 in with a 0.625 in profile
Total Weight: 0.04in = 0.6 lbs/sqft

Applications & Usage

Application Filter: Awning & Umbrella|Awning & Umbrella/Awning|Ceiling|Facade|Ornamentation|Partition|Furniture|Stair & Elevator|Wall
Installation: A mechanical fastening systems is recommended for install. Product is not post-formable. It is not recommended to curve sheets beyond a 2ft radius. Surface cracking or de-lamination may occur. All bending beyond this tolerance must be factory built prior to color/pattern application. Welding is never recommended under any circumstance. The corrugated material can be cut, trimmed and notched using standard woodworking tools with carbide cutting blades.
Suitable Substrates: Use a substrate with a high resistance to dimentional change, such as plywood, high-density particleboard or high-quality fiberboard. To prevent warping in environments where temperatures may fluctuate drastically or high humidity is present, it is recommended to apply an equal strength material to the back of the substrate.

Performance Metrics

Flammability: Class A rating according to the ASTM E84-16 Standard Test for Surface Burning Characteristics of Building Materials
Light Blocking: Complete
Maintenance: For general cleaning, use a damp, soft cloth with mild, non-abrasive soap and water. Low concentration ammonia based cleaning agents such as glass cleaners may also be used. Do not treat with rubbing compounds or lacquer thinner

Sustainability

Human Health

Human Health Impact: Low Emitting/Low VOC, Health Product Declaration (HPD)

Climate Health

Climate Impact: CARB Compliant

Social Health & Equity

Social Equity Impact: Made in USA

Circular Economy

Circular Economy: Recycled Content, Health Product Declaration (HPD)
