<ul> <li>Barz® baffles are now available with Brilliance™ lighting - a fully integrated linear LED lighting solution; Still fully accesible panelized cassette system with torsion spring grid attachment</li> <li>Fully customizable</li> <li>Fully integrated lighting reduces coordination & installation time with easy-to specify BOM</li> <li>Create custom ambient experiences with high-end lighting options, including Circadian and tunable white, Lighting calculation & design support available</li> <li>Voltage: 24 VDC</li> <li>Dimming: Dimmable, 0-10V, DALI, DMx</li> <li>Efficacy: 67 Lm/W</li> <li> Lighting Color Options: 35000K; 4000K; TW (Tunable White 2700K-5200K); BIOS Wellness Lighting</li> <li>Maximum Run Length: 48 ft</li> </ul>
Product Name

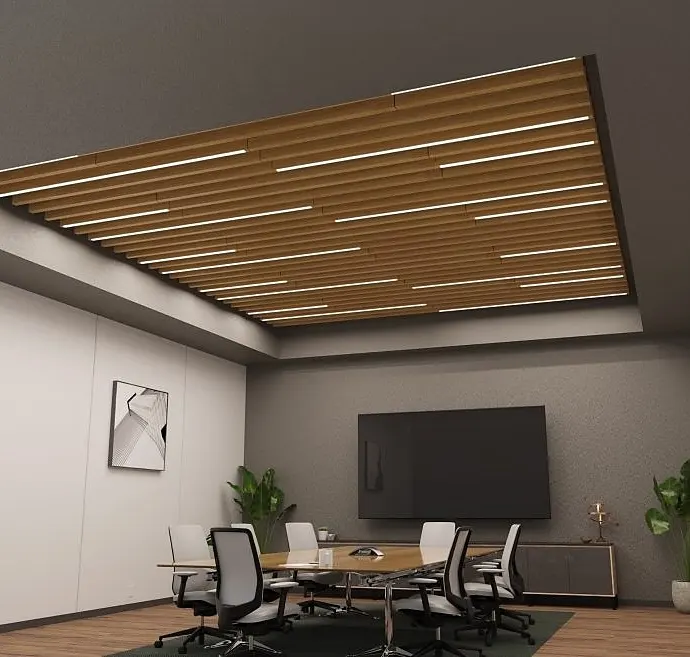

Design Solutions - Barz® + Brilliance™
Warranty
30 Years Limited Warranty
Material & Finish
Construction
Standard/ Custom Perforation
Content
Wood Look, Metal, Painted Metal
Availability & Procurement
Availability
Unavailable
Technical Specifications
Size
Maximum length - 8 ft, Maximum width - 10 in /Max Height 12 in, Minimum width is 2 in/min height of 4 in
Applications & Usage
Application Filter
Ceiling
Installation
Refer to Installation Guide PDF for details
Performance Metrics
Acoustics
0.70 - 0.90 NRC
Light Blocking
Complete
Sustainability
Human Health
Human Health Impact
CDPH Standard Method v1.2-2017, Low Emitting/Low VOC
