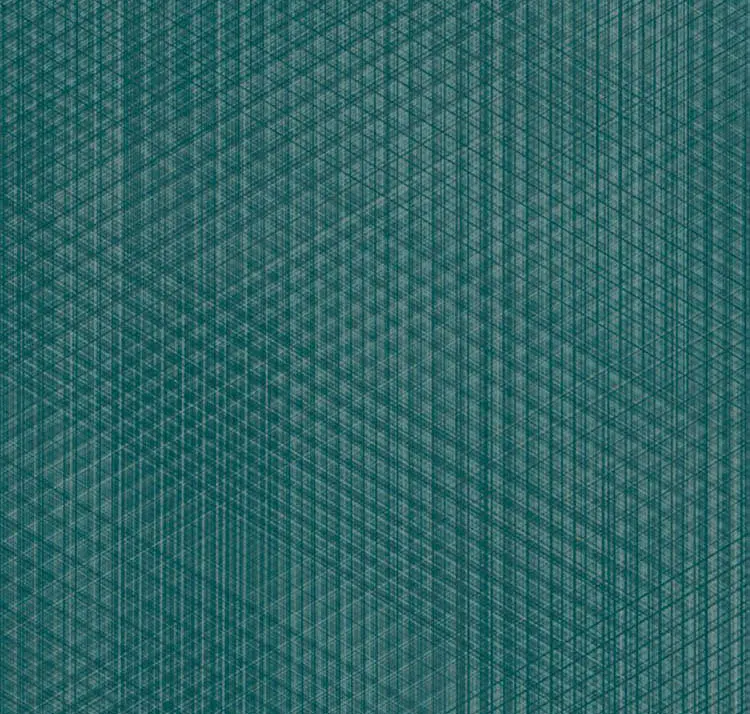

Interface Drawn Lines | Product

Core Specs

General Information

Collection Name: Drawn Lines
Color Name: Aquamarine
Color Number: A00906
Manufacturer SKU: A00906058020502XX0S
Price Range: $$$
Product Name: Drawn Lines
Warranty: 15 Year Standard LVT Warranty

Material & Finish

Backing: Commercial Grade
Construction: High Performance Luxury Vinyl Plank
Content: Vinyl
Finish: Ceramor
Format: Modular

Availability & Procurement

Availability: Typically Stocked, Stocked in North America
Country Of Origin: Republic of Korea
Lead Time: Can vary per order. Please contact your sales rep for details
Manufacturing Location: South Korea

Technical Specifications

Dimensional Stability: Passes ASTM F2199
Length: 1
Overall Thickness: 4.5
Size: 25 cm x 1 m (9.845 in x 39.38 in)
Wear Layer Thickness: 22 mil

Applications & Usage

Application Filter: Flooring
Installation: Glue Down. Refer to Installation attachment for details

Performance Metrics

Abrasion Wear Resistance: Passes ASTM F1914
Acoustics: ASTM E492-09 - 57 IIC
ADA: ADA Compliant
Classification: ASTM F1700 - Class III Printed Vinyl Tile
Color Stability From Heat: Passes ASTM F1514
Compression: ASTM F970 - 1500 psi
Flammability: ASTM E648 Radiant Flux - Class l; ASTM E662 Smoke Density = 450
Flexural Strength: Passes ASTM F137
Light Blocking: Complete
Lightfastness: Passes ASTM F1515
Maintenance: Refer to Maintenance attachment for details
Slip Resistance: ASTM D2047 >0.55 wet/dry

Sustainability

Human Health

Human Health Impact: CDPH Standard Method v1.2-2017, Formaldehyde Free, Health Product Declaration (HPD), Low Emitting/Low VOC, NSF/ANSI 332 Certified Resilient Floor Coverings, Phthalates free, SCS Global FloorScore Certified, UL GREENGUARD, UL GREENGUARD GOLD
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Health

Climate Impact: CARB Compliant, Environmental Product Declaration (EPD), ISO 14001 Environmental Management System (EMS), NSF/ANSI 332 Certified Resilient Floor Coverings, Sustainability Action Plan, UN Global Compact
GWP Functional Unit: kg CO2e/m2
LCA Optimization Plan: true

Ecosystem Health

Ecosystem Health: ISO 14001 Environmental Management System (EMS)

Social Health & Equity

Organizational Commitments: UN Global Compact, ISO 14001
Social Equity Impact: UN Global Compact
Sustainability Action Plan: ESG/CSR

Circular Economy

Circular Economy: Environmental Product Declaration (EPD), Health Product Declaration (HPD), Manufacturer Take-Back Program, Recycled Content, Recycled Content - Pre-Consumer

Certifications & Disclosures

Disclosure Level: 1000 ppm
Environmental Product Declaration: Product-Specific EPD
Ingredient Disclosure: Health Product Declaration (HPD)
LEED: May contribute to multiple IEQ and MR credits
VOC Emissions Testing Certificate: FloorScore Certified
