Drip Screed

Name: Drip Screed
Brand: Flannery, Inc.
SKU: 101954899

Metal Profiles

Overnight

Commercial & Residential

Clear Anodized

Sample size: 1.8 in x 5.6 in x 2.2 in

Arrives tomorrow

Size

(12 in)

Product Features: Customizable
Size: "A" Width=1/2 in ; "B" Width=1 in ; "C" Height=3/4 in; "A" Width=3/4 in ; "B" Width=1/2 in ; "C" Height=1/2 in; "A" Width=3/4 in ; "B" Width=3/4 in ; "C" Height=3/4 in; 7/8 in W, 1 in W, 1/2 in W, 3/4 in W, 7/8 in W

Application Filter: Facade|Wall

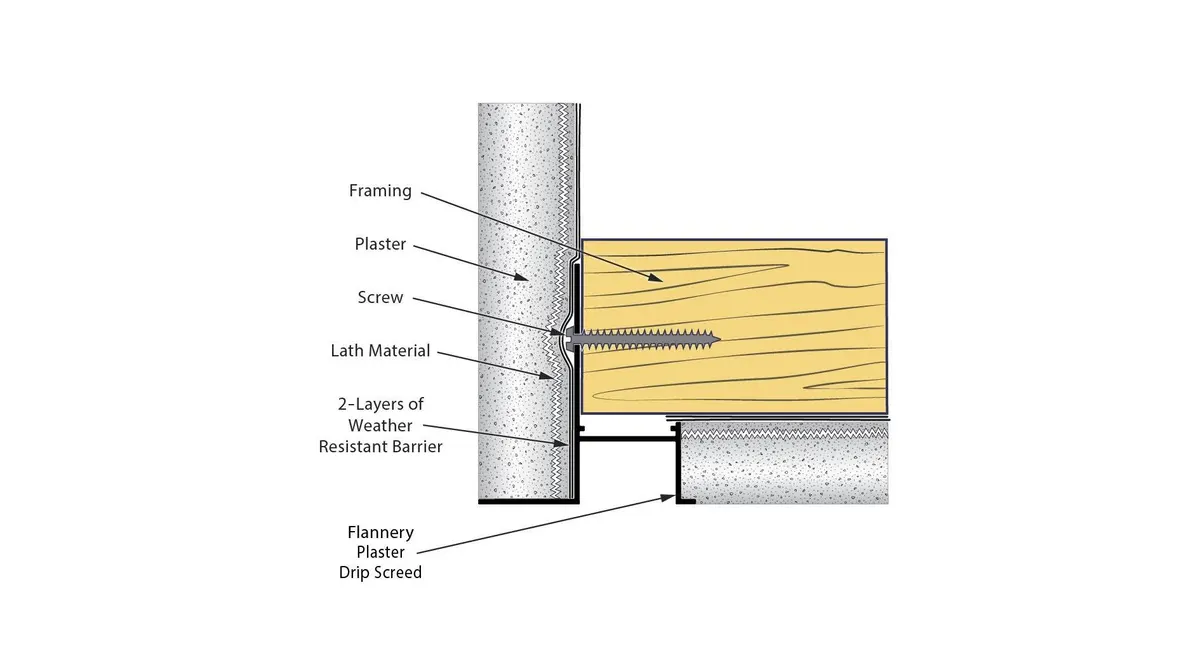

Installation: Install all Drip Screeds using full ten-foot lengths wherever possible. Attach Drip Screeds to the framing with nails, screws, or other approved fastening methods. Building paper or the weather resistant barrier must be installed over the vertical attachment flange of the Drip Screed. All plaster trims must be cut accurately and installed with tight, neat joints. All nailing flanges must be covered with lath and all butt joints must be sealed. Manufacturer recommends that a carbide tip blade along with lubricant be used when cutting any aluminum trims. Flannery offers an Aluminum Alignment Splice to ease the installation process and create crisp and clean butt joints and lines for its 7/8 Drip Screed (DS 875-875)
