Drywall Ceiling Cloud Edge

Name: Drywall Ceiling Cloud Edge
Brand: Flannery, Inc.
SKU: 101954911

Metal Profiles

Overnight

Commercial

Cloud White

Sample size: 2.4 in x 3.4 in x 0.8 in

Arrives tomorrow

Product Features: Customizable
Size: "A" Height=2 1/2 in ; "B" Width=7/8 in; "A" Height=4 in ; "B" Width=7/8 in; "A" Height=6 in ; "B" Width=7/8 in

Application Filter: Ceiling

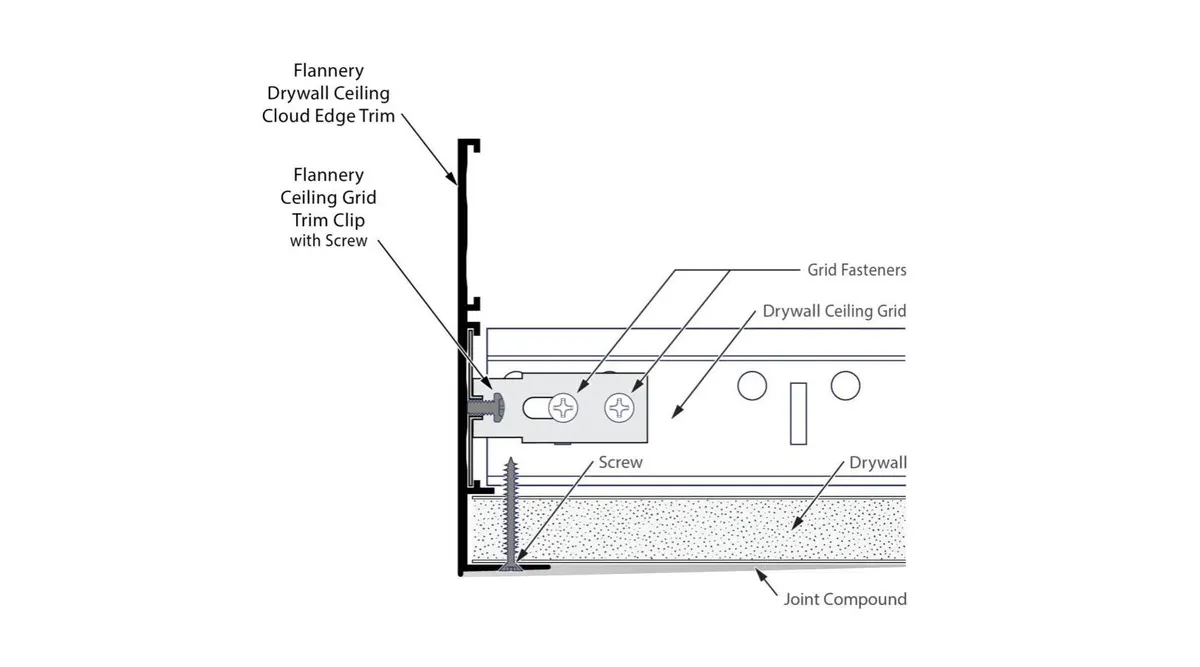

Installation: Connect Drywall Ceiling Cloud Edge trims to the suspended ceiling grid using the Ceiling Grid Trim Clips included. Rotate the Ceiling Grid Trim Clip into the slots on the back of the Cloud Edge trim and tighten the lock screw. Then attach the Ceiling Grid Trim Clip to the suspended drywall ceiling grid. Insert the drywall in behind the Drywall Ceiling Cloud Trim's thinning mud flange when attaching it to the suspended drywall ceiling grid. Insert a fastener through the trim's flange, drywall edge, and into the grid system. Apply the compound joint over the flange and feather accordingly. Use the included Ceiling Cloud Trim Splices to connect one piece of trim to the next for level and clean butt joints. All Cloud Edge Trims must be cut accurately and installed with tight, neat joints. Ceiling Cloud Splices, Use the included Ceiling Cloud Trim Splices to connect one piece of trim to the next for level and clean butt joints. All Cloud Edge trims must be cut accurately and installed with tight, neat joints. Manufacturer recommends that a carbide tip blade along with blade lubricant be used when cutting any aluminum trim
