PLEASE NOTE: ecoustic® Infill is optional and sold separately. The total weight per ft2 of all ecoustic® Sculptwood Ceiling Tiles is within the maximum weight rating of most proprietary grid systems. Check the weight of tile specified is within the grid hanger and spanning capability of the nominated grid. New ceiling grids must be installed to comply with manufacturer’s specifications. When using existing ceiling tile grids, installers must confirm the structural adequacy of the grid and install additional grid hangers as required to meet structural engineer’s specifications
Material & Finish
Content
Wood
Availability & Procurement
Availability
Made to Order / Special Order
Country Of Origin
Australia
Custom Capabilities
Custom Exposed Tee suspended ceiling grid systems, with nominal 24in x 24in, 48in x 24in, and custom grid dimensions
Lead Time
5-7 weeks
Technical Specifications
Product Features
Customizable
Size
23.8in x 23.8in (605mm x 605mm); 47.8in x 23.8in (1215mm x 605mm)
Applications & Usage
Application Filter
Ceiling
Installation

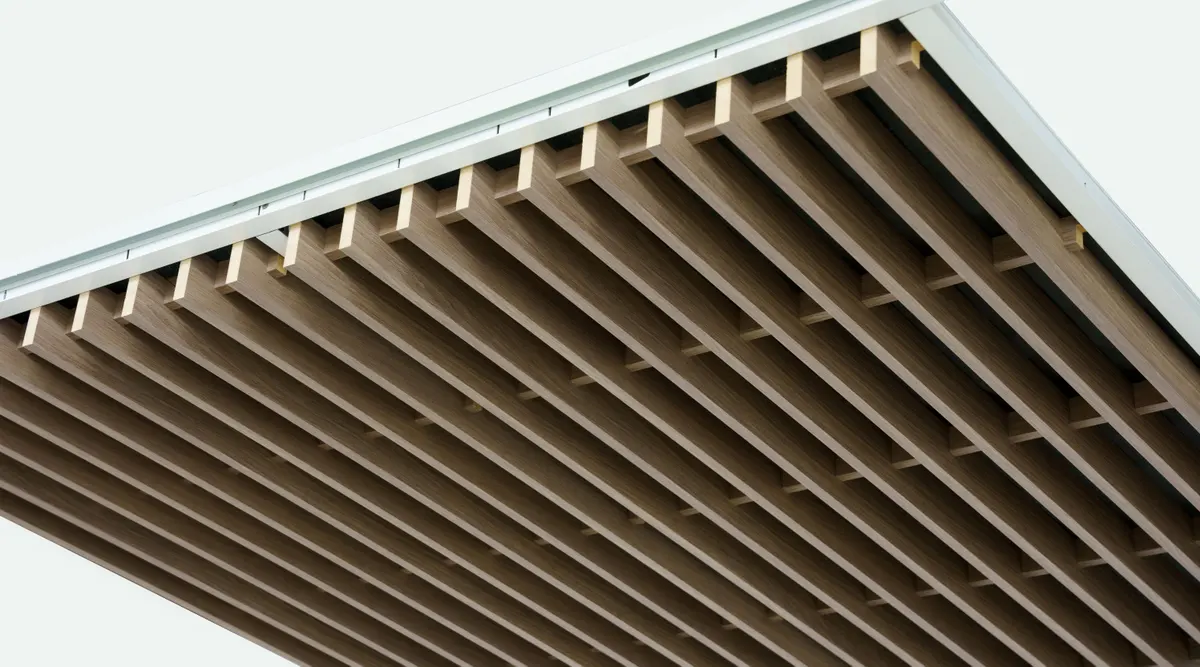

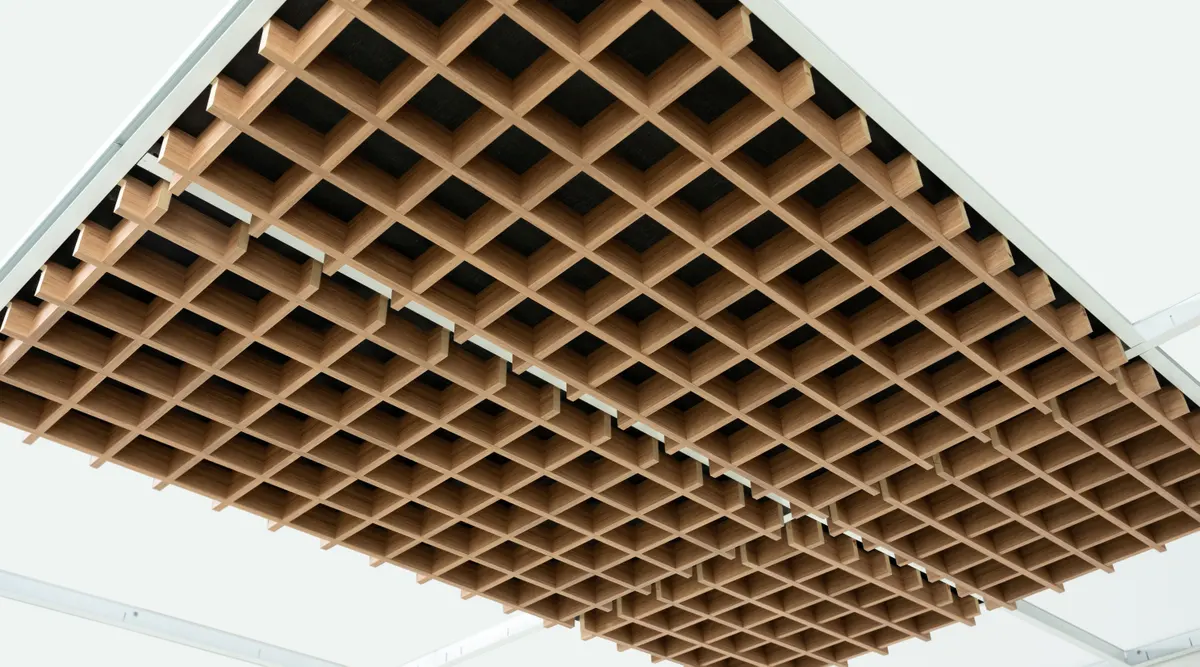

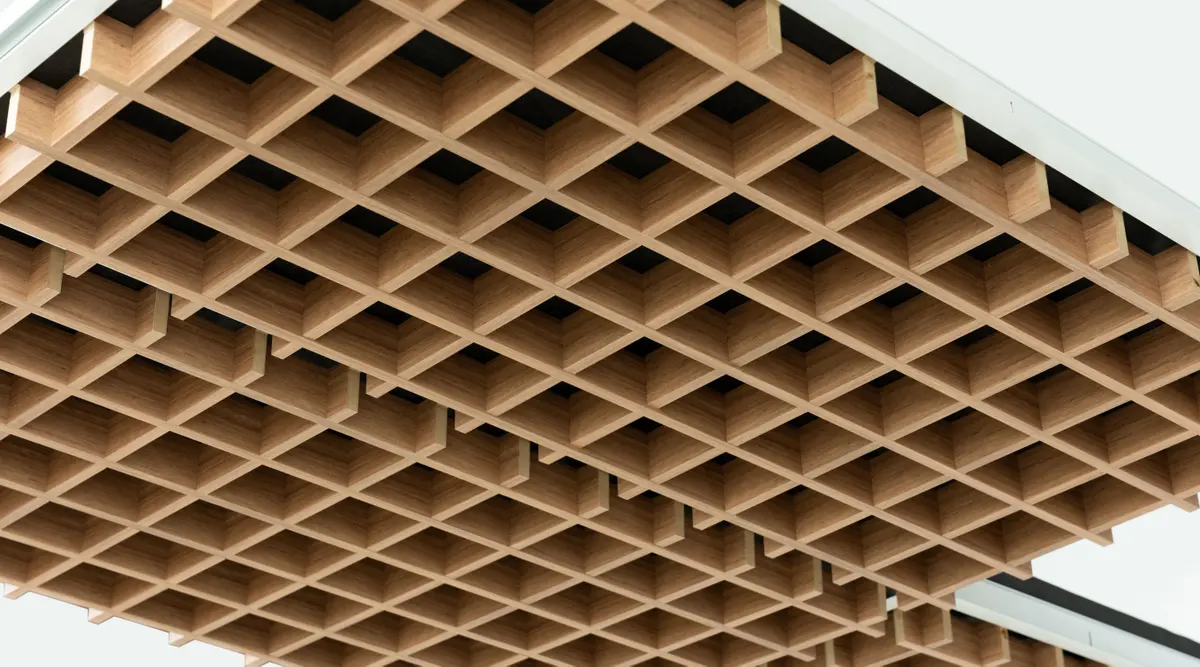

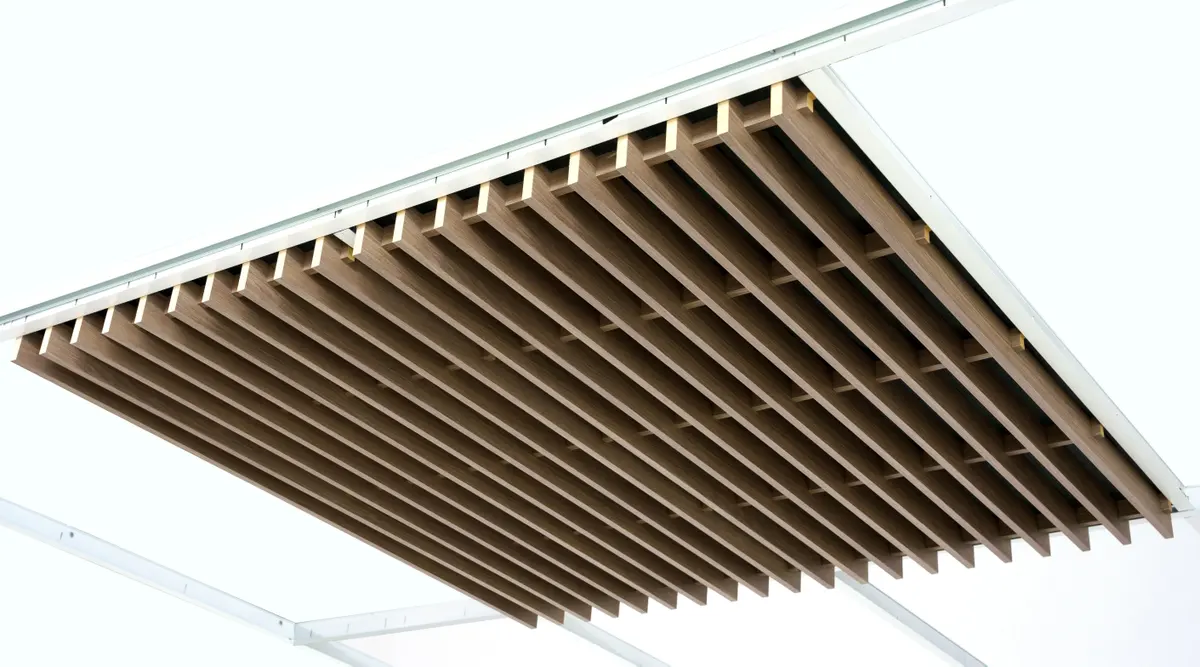

Sculptwood tiles are supplied flat-packed for efficient transportation and are simple and quick to assemble. The ceiling tiles are easy to install into suspended ceiling grids, and can be easily removed to gain access to building services. Refer to Installation & Care PDF for details
Performance Metrics
Acoustics
0.65 – 0.75 (Base NRC) and a 0.90 (with Ecoustic Infill)
