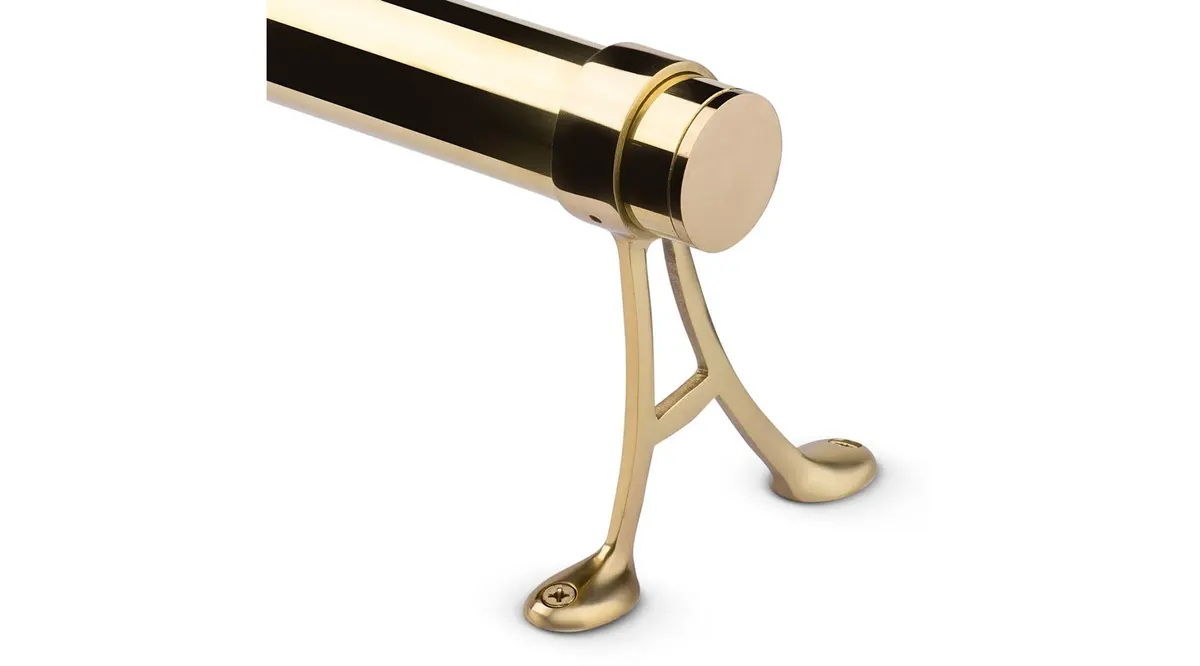

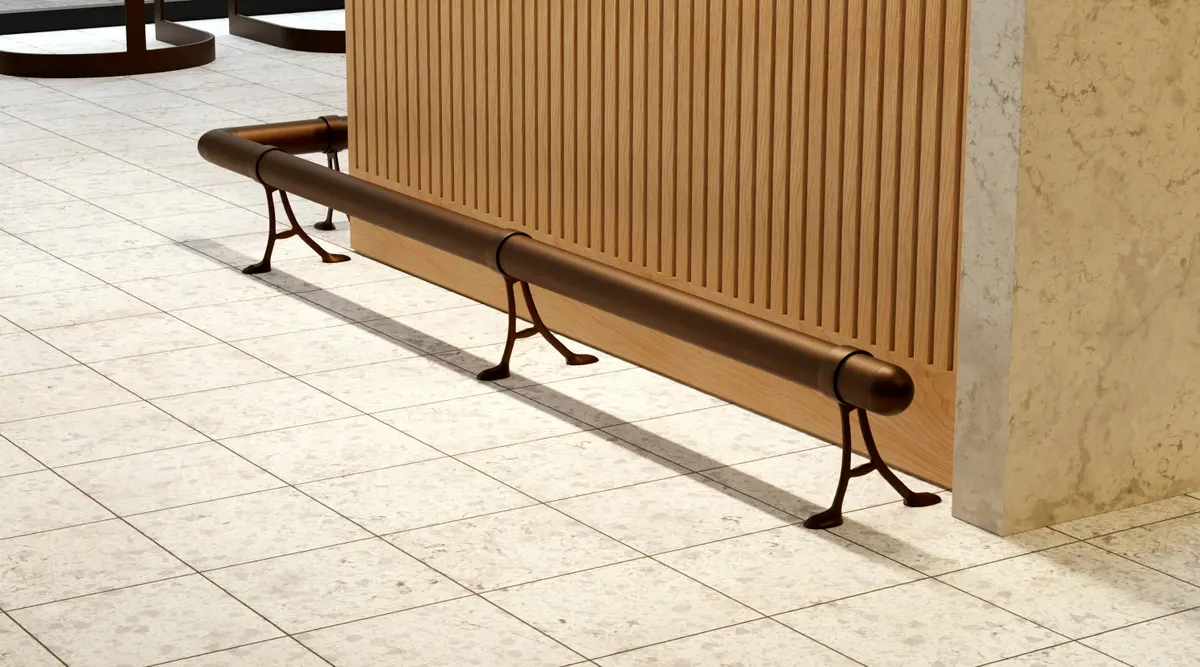

<ul> <li>Two feet at bottom of bracket screw directly into floor</li> <li>Brackets should be used at both ends of rail tubing, plus one at every 4 ft increment</li> <li>Mounting & self-drilling screws included</li> </ul>
Product Name

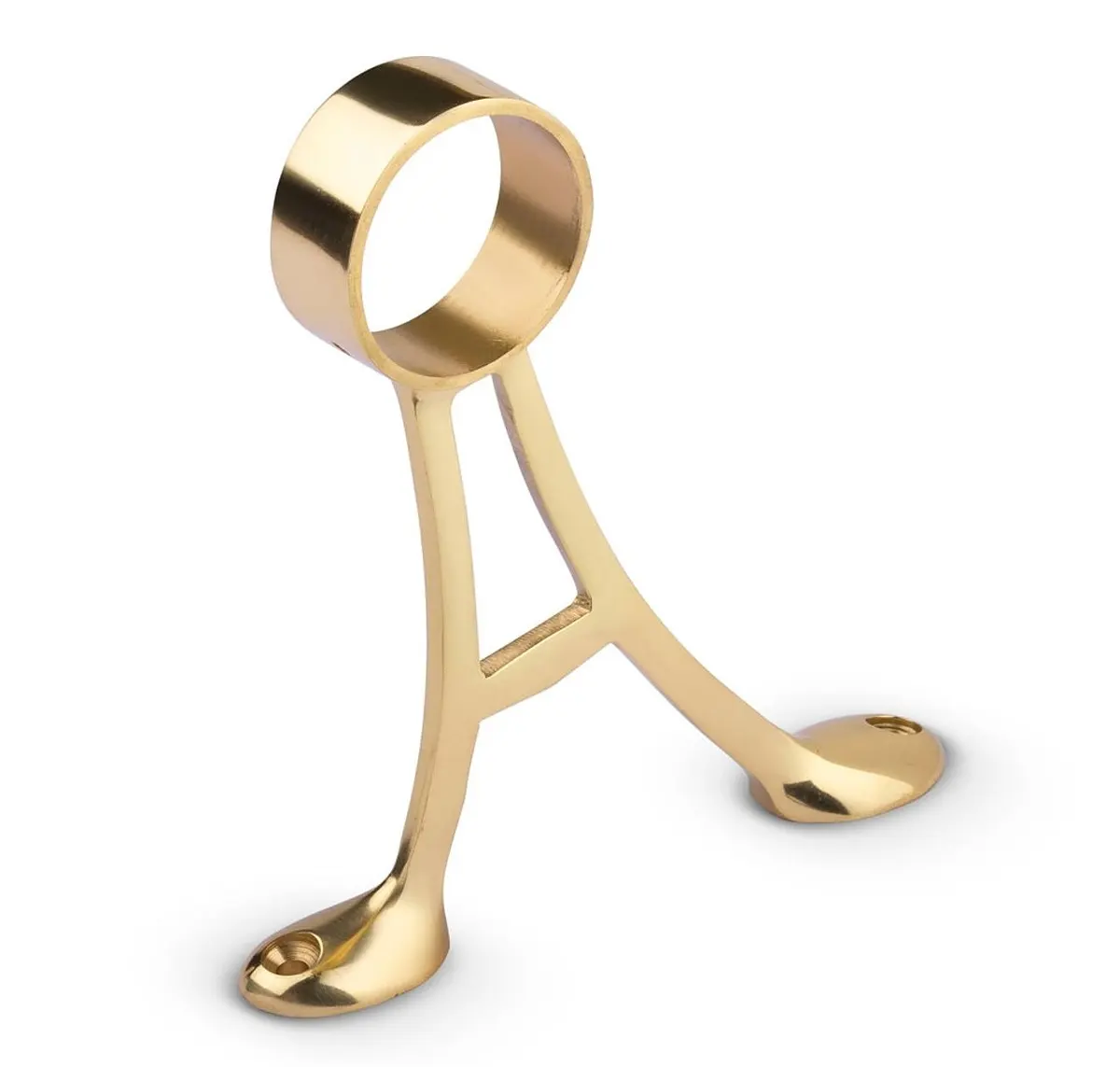

Floor Mount Foot Rail Bracket - 2 in OD
Material & Finish
Content
Metal
Format
Modular
Availability & Procurement
Availability
Typically Stocked
Technical Specifications
Size
Bracket Width: 6.75 in, Bracket Height: 7.00 in, Opening Diameter: 2.01 in, Floor to Center of Tubing (Center Point): 5.88 in
Applications & Usage
Application Filter
Flooring|Wall
Installation
Measure & mark holes for mounting screws. Attach brackets to the floor with the appropriate mounting screws. Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
