J+J Flooring Framework | Product

Core Specs

General Information

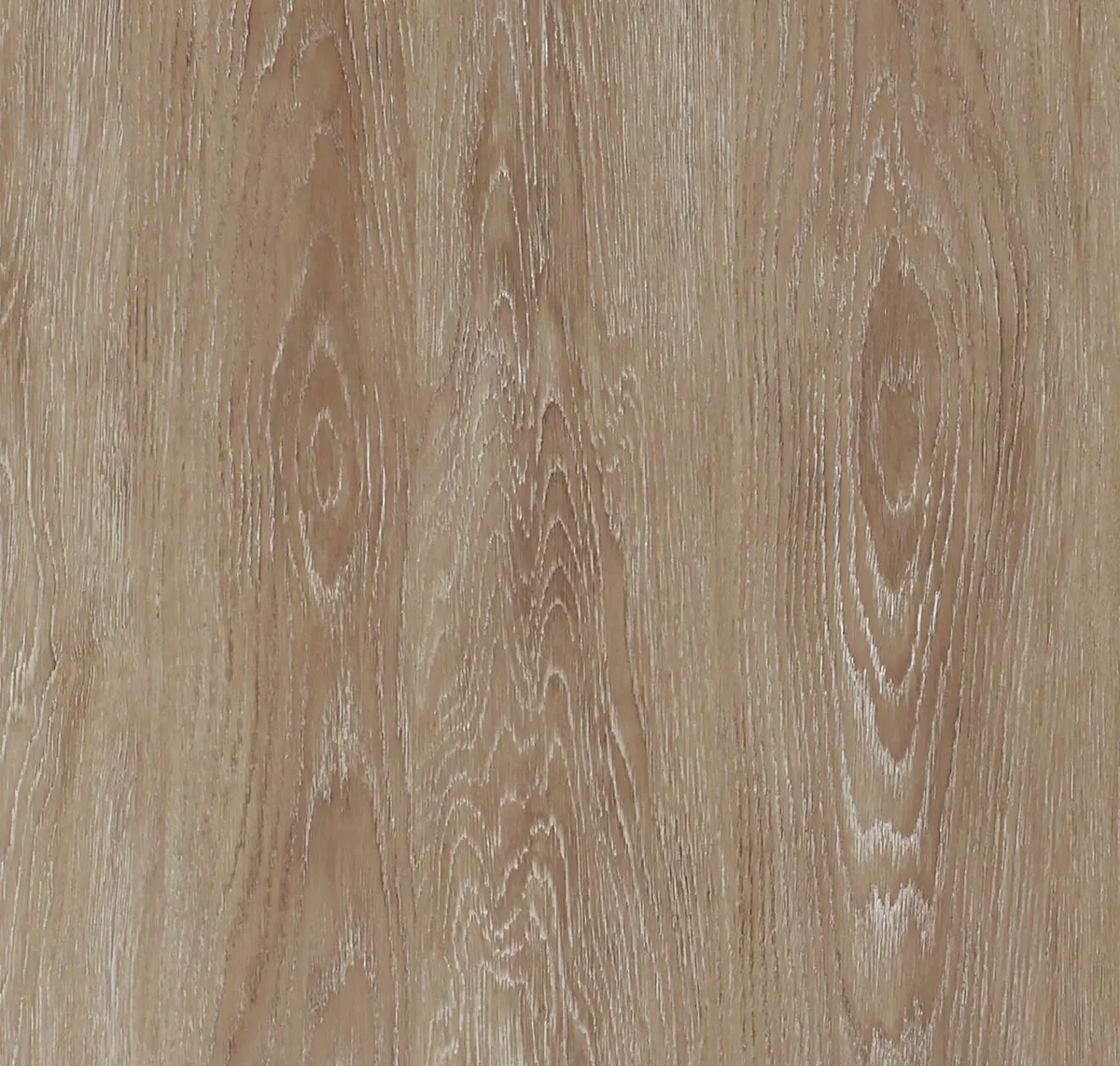

Color Name: Pier
Manufacturer SKU: KV50011010_9X6___II
Price Range: $$$
Product Name: Framework
Sample Note: Intended for commercial and multi-unit residential project specification only.
Warranty: 10 Year LVT Warranty

Material & Finish

Backing: Commercial Grade
Construction: Heterogeneous LVT
Content: Vinyl
Finish: Enhanced UV Urethane with Ceramic Bead, ZPT (Zinc Protective Technology)
Format: Modular, Plank

Availability & Procurement

Availability: Typically Stocked, Stocked in North America
Country Of Origin: Republic of Korea
Manufacturing Location: South Korea
Order Increments: 24 sqft/carton, 5.53 lbs/piece, 44.25 lbs/carton, 8 pcs/box, 52 boxes/pallet

Technical Specifications

Dimensional Stability: Passes ASTM F2199 Dimensional Stability
Length: 48
Overall Thickness: 5
Size: 9 in x 48 in (22.86 cm x 22.86 cm)
Wear Layer Thickness: 20 mil

Applications & Usage

Application Filter: Flooring
Installation: Full spread or loose lay with perimeter glue. Refer to Installation attachment for details

Performance Metrics

ADA: Compliant for Accessible Routes
Classification: Class III Printed Film Vinyl Plank - Type B (embossed)
Color Stability From Heat: Passes ASTM F1514 Resistance to Heat
Compression: Passes ASTM F1914 Residual Indentation; Passes ASTM F970 Static Load
Durability: Heavy Duty
Flammability: Passes ASTM E648 Critical Radiant Flux - Class 1; Passes ASTM E662 Optical Smoke Density
Flexural Strength: Passes ASTM F137 Flexibility
Light Blocking: Complete
Lightfastness: Passes ASTM F1515 Resistance to Light
Maintenance: Refer to Maintenance attachment for details
Slip Resistance: Passes ASTM C1028 Slip Resistance

Sustainability

Human Health

Human Health Impact: CDPH Standard Method v1.2-2017, Low Emitting/Low VOC, SCS Global FloorScore Certified, Global Reporting Initiative (GRI), Health Product Declaration (HPD)
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Health

Climate Impact: Sustainability Action Plan, Life Cycle Assessment (LCA), Environmental Product Declaration (EPD), NSF/ANSI 140 Certified Carpet - Compliant, ISO 14001 Environmental Management System (EMS), ESG/CSR, Product-Specific EPD, CARB Compliant, ISO 14025 Type III environmental declaration programmes, EC3, 100% Recyclable, Global Reporting Initiative (GRI)
Emissions: TVOC - 0.5 mg/m3 or less
GWP Functional Unit: kg CO2e/m2
LCA Optimization Plan: true

Ecosystem Health

Ecosystem Health: ISO 14001 Environmental Management System (EMS)

Social Health & Equity

Organizational Commitments: ISO 14001
Social Equity Impact: Global Reporting Initiative (GRI)
Sustainability Action Plan: Sustainability Action Plan, ESG/CSR

Circular Economy

Circular Economy: Manufacturer Take-Back Program, Environmental Product Declaration (EPD), Third-Party Partnership for Recovery and Cycling, NSF/ANSI 140 Certified Carpet - Compliant, 100% Recyclable, Product-Specific EPD, EC3, Health Product Declaration (HPD)

Certifications & Disclosures

Disclosure Level: 1000 ppm
Environmental Product Declaration: Product-Specific EPD
Ingredient Disclosure: Health Product Declaration (HPD)
LEED: May contribute to LEED Credits
VOC Emissions Testing Certificate: FloorScore Certified
