Volume control operates best at 45–80 psi, delivering smooth, consistent performance within the recommended pressure range; Rough accommodates wall thicknesses from 2 1/8 in to 2 3/4 in, depending on trim selection, for greater installation flexibility; RP100304 extension kit extends rough installation depth up to 3 1/4 in, to accommodate thicker wall applications; Rough sold separately-required to complete installation; CALIFORNIA PROP 65 WARNING This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Wash hands after installing or removing the product; Must also order R35600 Rough-In; 90° handle rotation controls volume only; Volume control flows up to 16.2 gpm @ 60 psi; Maximum flow 8.2 gpm @ 60 psi per volume control when paired with Sensori Thermostatic trim; Volume controls are required for every outlet and every set of body sprays (up to max flow); All parts are replaceable from the front; Recommended working pressure of 45-80 psi; Volume control only; must be used with temperature control device; Rough can accommodate up to 3 1/4" wall thickness; NOTE: some applications may require stem extended RP100304
Product Name

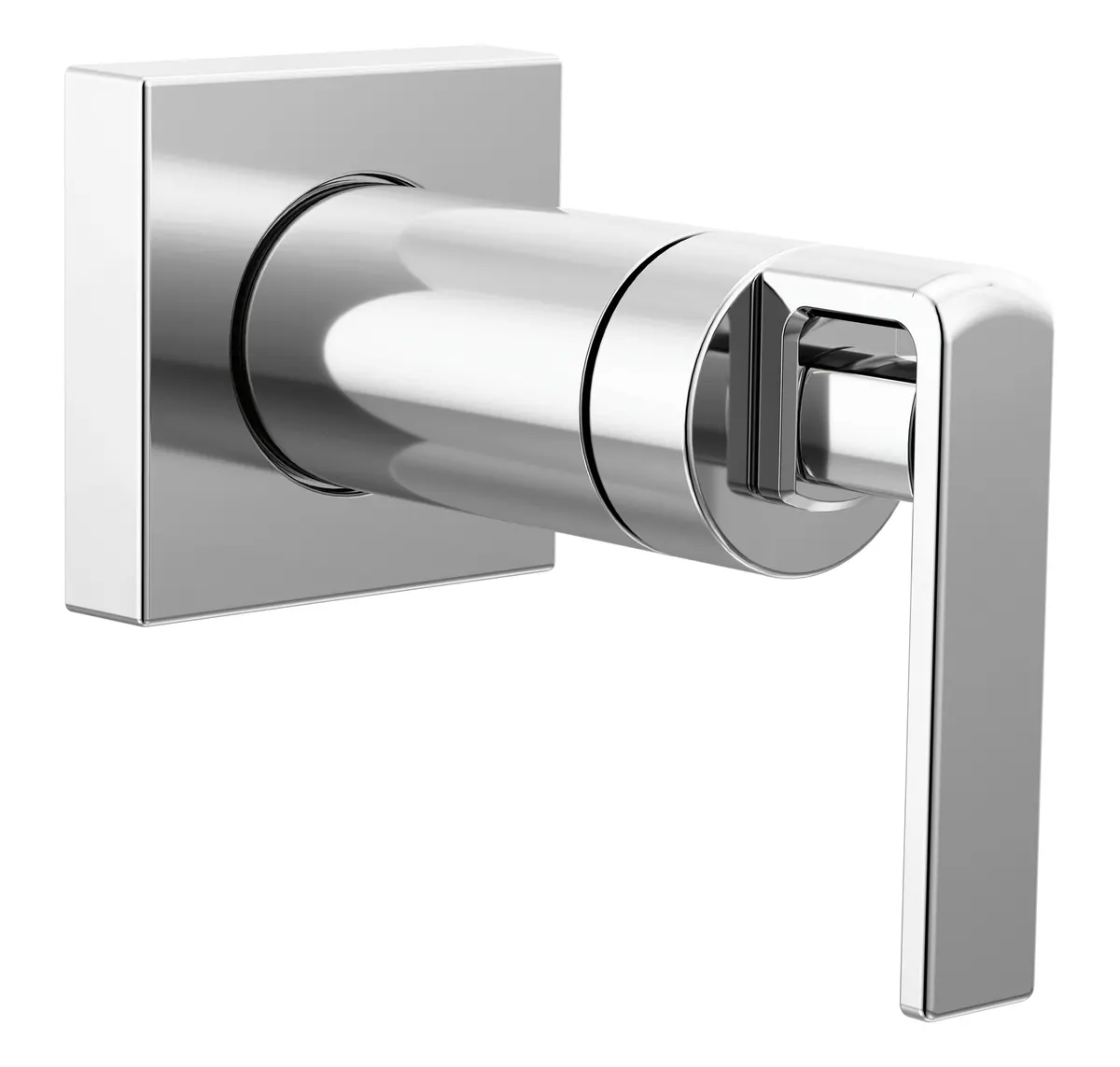

Frank Lloyd Wright®: Sensori® Volume Control Trim With Gap Lever Handle
