Decorative surface papers are impregnated with melamine resin and pressed over Kraft paper core sheets that are impregnated with phenolic resin. The layers are bonded via high pressure and heat, trimmed, and sanded to facilitate bonding
Content
Wood/cellulose fiber (kraft, decorative, and overlay paper layers), phenolic resin, melamine resin
Finish

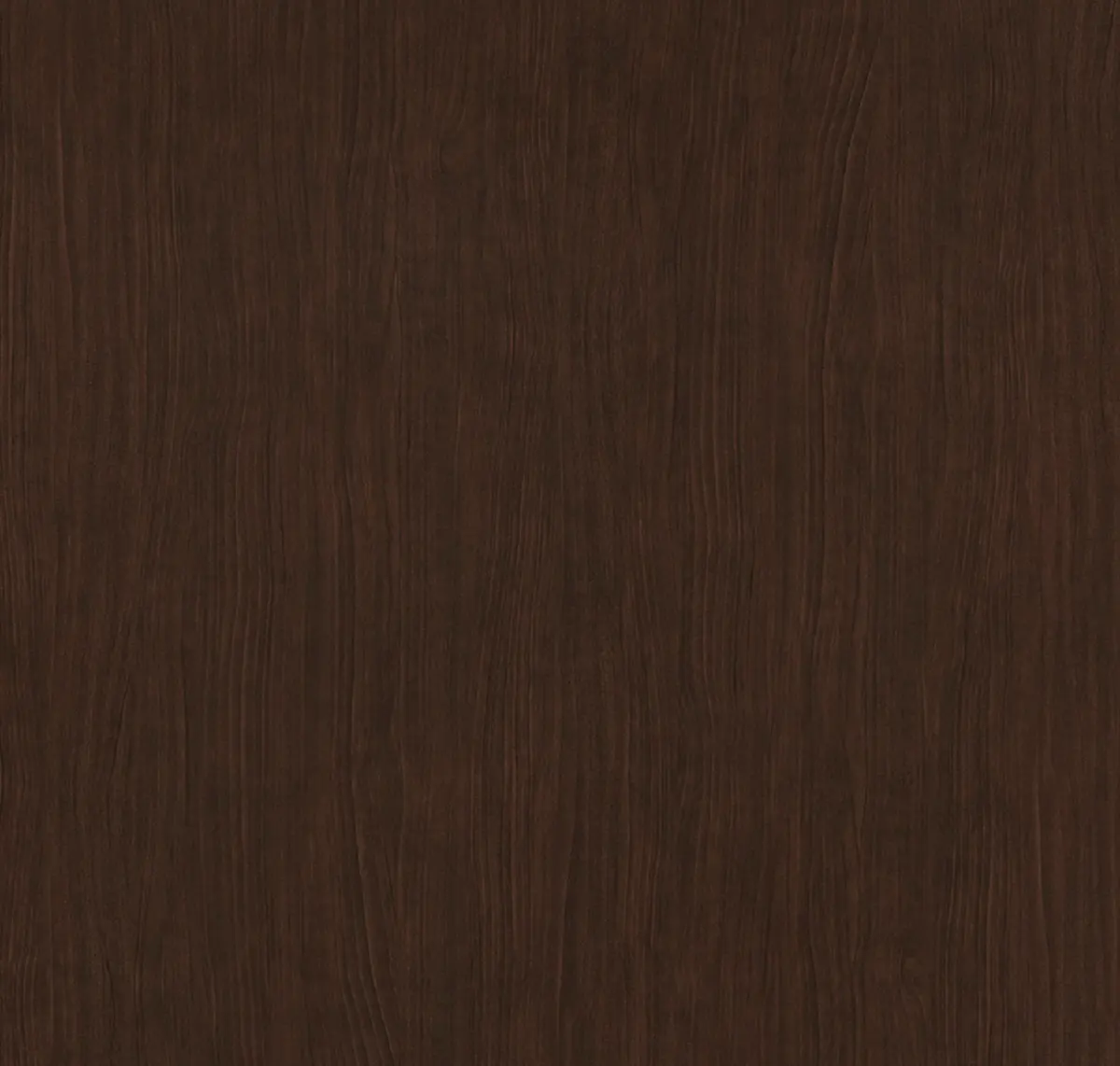

Legno (Finish code: LE)
Format
Panel / Sheet
Availability & Procurement
Availability
Typically Stocked, Made to Order / Special Order
City Of Origin
Fletcher
Country Of Origin
United States
Custom Capabilities
Available in various grades, including Vertical Surface (VGP) Type A3, Postforming (HGP) Type A4. Available upon request: Antimicrobial laminate
Lead Time
Available in stock. Lead times may vary for factory order combinations. Inquire with a sales representative for more info
Technical Specifications
Dimensional Stability
ISO 4586 - Machine Direction 0.5% Cross Direction 0.8%
Impact Resistance
ISO 4586 - 40 in (A3), 55 in (A4)
Overall Thickness
4
Product Features
Customizable
Size
4ft x 8ft, 5ft x 12ft
Total Weight
Type A3=0.186 lbs/sqft, Type A4=0.260 lbs/sqft, Type A5=0.322 lbs/sqft
Applications & Usage
Application Filter
Countertop|Door|Kitchen|Furniture|Wall
Installation
Not a structural material and must be joined to a suitable substrate. Fasten mechanically or adhere with adhesives. Utilizing a balancing sheet opposite of the material may be required. Carbide-tipped saw and router blades should be used for cutting
Recommended Adhesive
Recommended adhesives are permanent types, such as urea and polyvinyl acetate (PVA), and contact types. Wilsonart adhesives are recommended for most bonding conditions.
Suitable Substrates
Suitable substrates may include but are not limited to particleboard, medium density fiberboard or plywood with one A-face. High-pressure laminate, plaster, concreteand gypsum board should not be considered suitable substrates. Basic Types laminate may not be used as structural members.
Performance Metrics
Abrasion Wear Resistance
400 cycles (ISO 4586)
Flammability
ASTM E-84 Class B
Light Blocking
Complete
Lightfastness
ISO 4586 Light Resistance - Slight Effect
Maintenance
Arborite HPL's non porous characteristics will withstand most types of cleaners and disinfectants without compromising the integrity of the surface design. Refer to our Care & Maintenance instructions and Cleaners & Disinfectants list
Stain Resistance
ISO 4586 - Stain 1-10 No Effect Stain 11-15 Slight Effect
Water Resistance
ISO 4586 Boiling Water Resistance - No Effect
Sustainability
Human Health
Human Health Impact
UL GREENGUARD, UL GREENGUARD GOLD, Low Emitting/Low VOC, CDPH Standard Method v1.2-2017, Health Product Declaration (HPD)
