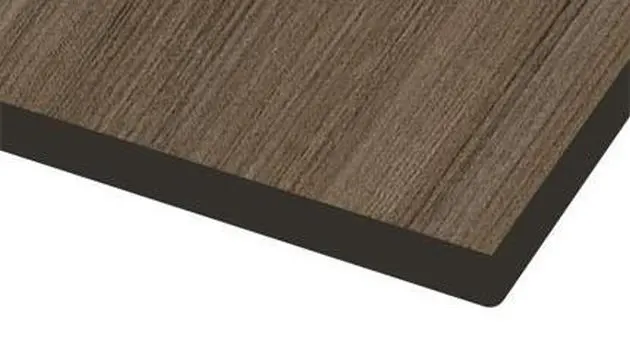

Super-fine layers of Kraft paper are bound together with a phenolic resin and pressed into slabs that are cut, routed, sanded and fabricated into countertops
Content
A nonporous composite material, fabricated from layers of Kraft paper and phenolic resin
Finish
Luster
Format
Panel / Sheet
Availability & Procurement
Availability
Typically Stocked
City Of Origin
Fletcher
Country Of Origin
United States
Lead Time
7 – 10 business days
State Of Origin
North Carolina
Technical Specifications
Dimensional Stability
ISO 4586 tested for Dimensional Stability. Result of 0.3% in the machine direction and 0.7% in the cross direction.
Edge End
Typical shapes in woodworking and Solid Surface applications are obtainable with Wilsonart® Thinscape® Composite Tops, including filleted, thumbnail, flat, and reverse-knife edge profiles
Impact Resistance
ISO 4586 tested for Impact Resistance by a Large Diameter Ball. Result of greater than 78in
Overall Thickness
0.5
Size
30 in x 120 in, 30 in x 144 in, 60 in x 120 in, and 60 in x 144 in
Total Weight
3.77 lbs/sqf
Applications & Usage
Application Filter
Bath|Countertop|Kitchen|Furniture
Installation
Prior to install, ensure cabinets are leveled. Provide supports every 24in and for overhangs. Shims may be used for assistance. Carbide-tipped saw and router blades should be used for cutting. Use the tool at high speed and feed slowly. Install biscuit slots and biscuits for mitered corners if required. To avoid cracking, radius all corners. Edges should be routered smooth. Postforming is not recommended or approved. Refer to Fabrication Manual for additional information
Recommended Adhesive
Mechanical fasteners are not acceptable. Use a two-part acrylic epoxy adhesive for bonding seams. Devcon Plastic Welder Plexus MA300 or Loctite Epoxy Plastic Bonder work well. 100% silicone sealant is recommended for securing slabs to installation substrates and filling gaps between slabs and terminating substrates. In wet environment applications use mildew-resistant product.
Suitable Substrates
Do not install over a solid substrate. Air movement must be allowed to reach the top and bottom of the slab. Warpage may occur due to changes in temperature and humidity. Where a full substrate is required holes can be cut in the substrate to allow for air movement.
Performance Metrics
Abrasion Wear Resistance
EN438 tested for Scratch Resistance. Result of 3N. ISO 4586 tested for Surface Wear Resistance. Meets or exceeds 400 cycles
Crazing Resistance
EN438 tested for Crazing Resistance. Grade of 5 for the surface. Grade of 4 for the core.
Flammability
ASTM E-84 Class B
Flexural Strength
EN ISO 178/ASTM 790 tested for Flexural Strength. Result of greater than or equal to 180 Mpa in the machine direction and greater than or equal to 130 Mpa in the cross direction.
Light Blocking
Unknown
Maintenance
To clean the surface, use a damp cloth or sponge and a mild soap or detergent. Rinse thoroughly with warm water and wipe dry. Avoid acidic or abrasive cleaners. A diluted bleach solution can be used as a disinfectant. Reference the Care & Maintenance Guide for additional information
Tensile Strength
EN ISO 527/ASTM 638 tested for Tensile Strength. Result of greater than or equal to 140 Mpa in the machine direction and greater than or equal to 100 Mpa in the cross direction.
Water Resistance
EN438 tested for Boiling Water Immersion and Water Vapor Resistance. Grade of 4
Sustainability
Human Health
Human Health Impact
CDPH Standard Method v1.2-2017, Low Emitting/Low VOC, UL GREENGUARD, UL GREENGUARD GOLD
