Graphite Elm

Name: Graphite Elm
Brand: Formica
SKU: 100326218

Laminate

Overnight

Commercial & Residential

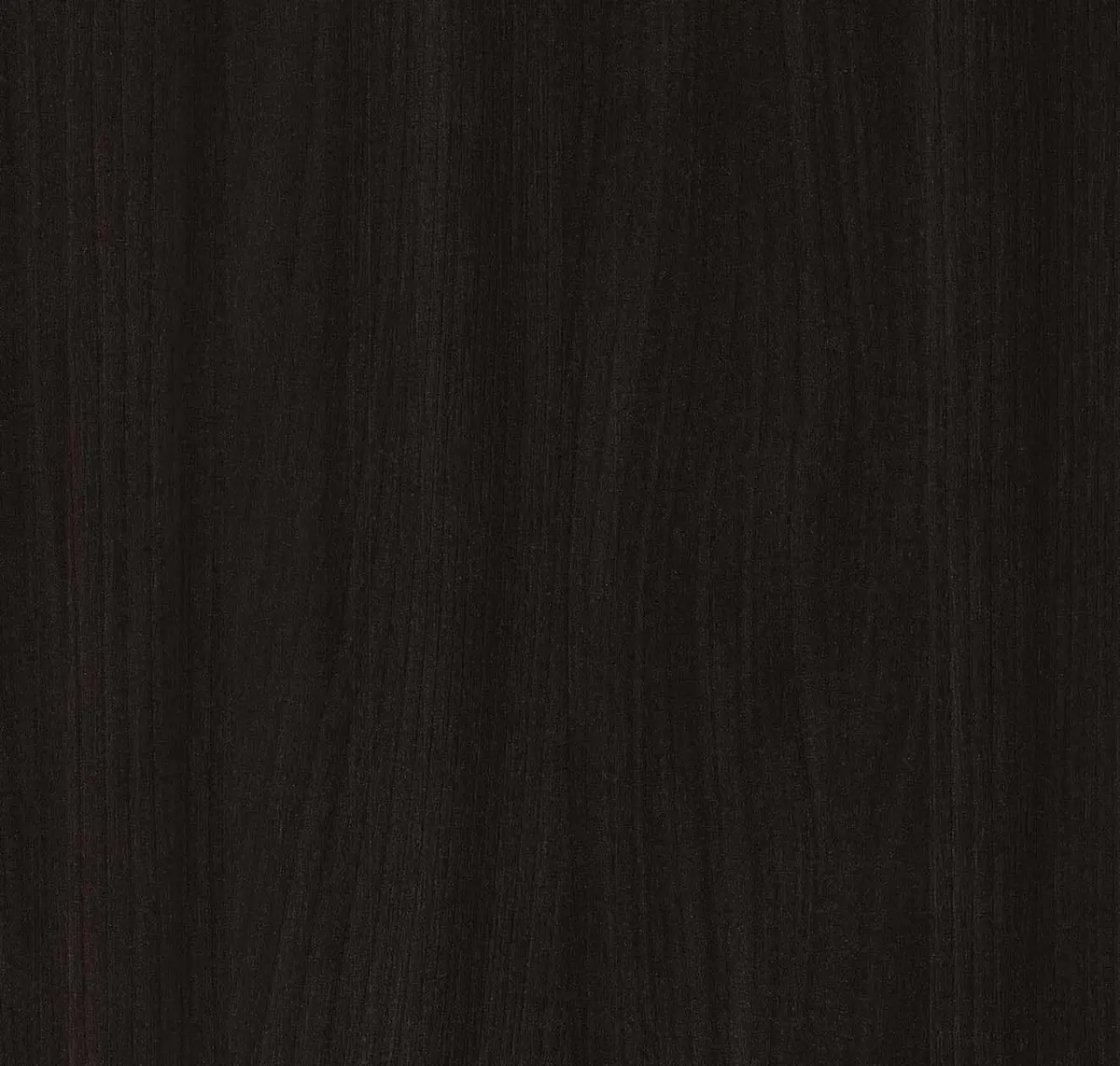

Graphite Elm

Sample size: 3 in x 5 in x 0 in

Arrives tomorrow

Collection Name: Woodgrain
Manufacturer SKU: 5796-NG
Price Range: $$
Product Name: Graphite Elm
Warranty: Limited warranty for one year from the date of purchase. Please reference Formica Use and Care Guide/Warranty attachment for additional information

Construction: Melamine-impregnated decorative surface papers are combined with phenolic-treated kraft paper in a press, where they are fused via high pressure and heat
Content: Kraft Paper, Phenolic Resin, Melamine Resin
Finish: Natural Grain - Premium (Finish Code: NG)
Format: Panel / Sheet

Availability: Typically Stocked
Country Of Origin: United States
Custom Capabilities: Also available in made-to-order sizes and finishes. Inquire with brand or local brand representative

Dimensional Stability: Postforming grade laminate is hygroscopic and therefore capable of absorbing moisture from the atmosphere. Grade 12 (HGP) = 1.1% (max) change in both Machine and Cross Directions. Grade 20 (VGP) = 1.4% (max) change in both Machine and Cross Directions.
Edge End: Square edge fabrication comes standard (the core edge of the top surface is exposed). Formica's IdealEdge®, is available in four versatile profiles that eliminate the square edge brown line
Impact Resistance: LD3 3.8 Ball Impact Resistance Tested. Grade 12 (HGP) = 30in (min) result. Grade 20 (VGP) = 20in (min) result.
Overall Thickness: 20
Product Features: Customizable
Size: The most common sheet sizes are 4x8,10 ft, 5x10,12 ft, and 2.5x12 ft. Please reach out to your local Formica representative regarding made-to-order sizes and finishes
Total Weight: Grade 12 (HGP) = 0.252 lbs/sqft. Grade 20 (VGP) = 0.180 lbs/sqft

Application Filter: Countertop|Kitchen|Furniture|Wall
Recommended Adhesive: Contact, semi-rigid (PVAc), or rigid (urea, resorcinol) adhesives may be used. Certain combinations of finish, substrate, and adhesive can cause telegraphing. Inquire with brand for additional information.
Suitable Substrates: In most applications, the laminate must be bonded to MDF, a #45 density particleboard, or similar substrate. A marginal substrate such as plywood may be used, however it must meet APA standards and be “A” faced, hardwood veneer or multi-ply core plywood. Do not adhere directly to plaster, drywall, or concrete. Panel assemblies should be laminated with the appropriate backing sheet to minimize warpage. Formica® Brand backing sheets (grade 91/BKV or 92/BKH) are recommended for less critical applications. Optimum balancing is obtained by bonding the same surface laminate on both sides of the assembly with the same adhesive. Always align sanding marks in the same direction.

Abrasion Wear Resistance: LD3 3.13 Tested - Minimum 400 Cycles
Flammability: Passes FMVSS 3022. ASTM E84 results vary between Class B and C, depending on substate and adhesive use. Refer to Fire Rating Tech Brief attachment
Light Blocking: Complete
Maintenance: Use a soft, damp, cotton cloth and a mild liquid detergent or household cleaner. Avoid abrasives and cleaners containing acid or alkali. Suitable disinfectants include those that utilize quaternary ammonium, isopropanol, bleach, or hydrogen peroxide
Stain Resistance: LD3 3.4 Tested. No effect from reagents 1-10. Moderate effect from reagents 11-15

Human Health Impact: Health Product Declaration (HPD), Low Emitting/Low VOC, Precautionary List Free, RoHS Compliant, UL GREENGUARD, UL GREENGUARD GOLD, CDPH Standard Method v1.2-2017
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Impact: EC3, Environmental Product Declaration (EPD), Life Cycle Assessment (LCA)
Emissions: A low-emitting material per GREENGUARD evaluation. Formaldehyde may be released in minute but detectable amounts when material is shipped/stored in bulk quantities or during sanding/cutting/machining operations

Social Equity Impact: Build America, Buy America Act (BABAA) Compliant, Forest Stewardship Council (FSC) Certified, Forest Stewardship Council (FSC) Certified - Chain of Custody, Made in USA

Circular Economy: Forest Stewardship Council (FSC) Certified, Recycled Content, Recycled Content - Post-Consumer, Recycled Content - Pre-Consumer, USDA Biopreferred®, USDA Certified Biobased Product
