Decorative surface papers impregnated with melamine resins are pressed over Kraft paper core sheets impregnated with phenolic resin. Sheets are bonded together under high pressure and heat. Finished sheets are trimmed and back-sanded to facilitate bonding to substrate
Content
Phenolic resin-impregnated Kraft paper sheets and decorative surface papers impregnated in melamine resin
Finish

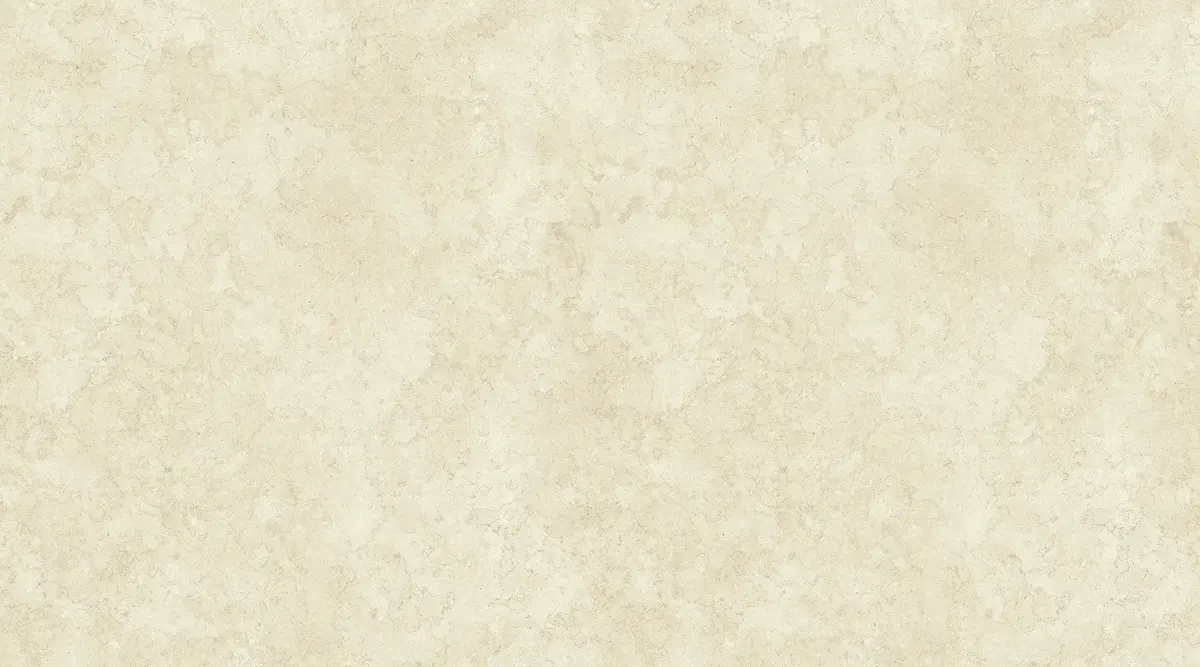

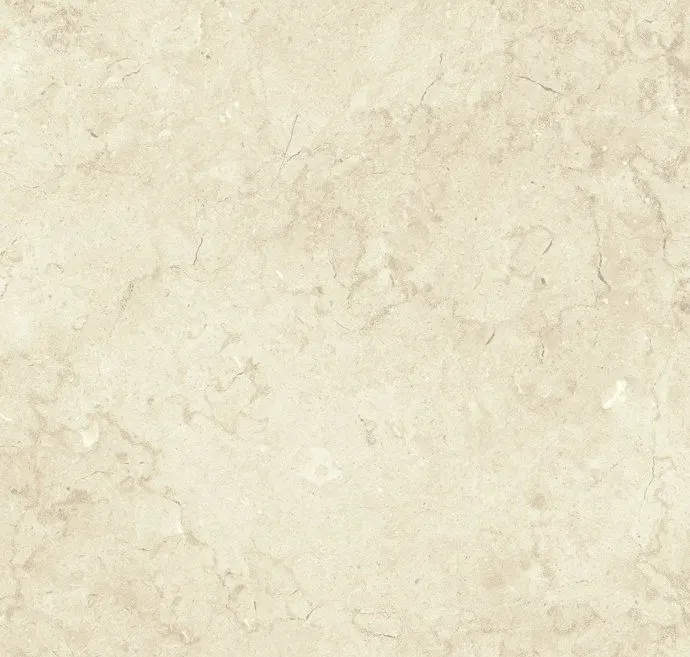

52 Quarry
Format
Panel / Sheet
Availability & Procurement
Availability
Typically Stocked
Country Of Origin
United States
Custom Capabilities
Highly customizable. Special projects deserve special laminates. A range of specialty surface solutions are available. AEON™ Technology improves durability. Antimicrobial Protection helps guard against the growth of mold and mildew. High Wear increases abrasion resistance for high-traffic commercial projects. Traceless™ is anti-fingerprint. Chemsurf® provides exceptional chemical resistance. Fire-Rated Laminates meet or exceed well-known fire codes. Wilsonart X You enables personalization. Some colors and patterns can be made into writable surfaces
Lead Time
Lead time will vary depending on order combinations
Technical Specifications
Dimensional Stability
ISO 4586 tested for Dimensional Stability. Product Type 107 (HGS) = 0.3% in the machine direction and 0.7% in the cross direction. Product Type 335 (VGP) and Product Type 350 (HGP)= 0.5% in the machine direction and 0.8% in the cross direction.
Edge End
Options include beveled, crescent, and mitered edges. Edgebands are also available for cabinets, doors, drawers, shelves, tables, and countertops. Refer to attached documents or contact your local rep for additional information
Impact Resistance
ISO 4586 tested for Impact Resistance. Product Type 335 Vertical Grade Postforming Laminate (VGP) = 40in. Product Type 350 Horizontal Grade Postforming Laminate (HGP) = 55in.
Overall Thickness
350
Product Features
Customizable
Size
48 in x 96 in, 60 in x 96 in, 60 in x 120 in, 60 in x 144 in
Installation varies depending on application. Carbide-tipped saw and router blades should be used for cutting. Use the tool at high speed and feed slowly. To avoid cracking|radius all corners. Edges should be routered smooth. Refer to Spec Sheet attachment for additional information
Recommended Adhesive
Wilsonart® H20 Contact Adhesive works well in postforming applications. Use Wilsonart® 1730/1731 Contact Adhesive for non-postforming applications. Wilsonart® PVA Adhesive is ideal for bonding decorative laminate to wood substrates|in cold press|hot press|and postforming applications. For best results|apply adhesives at temperatures at or above 65 degrees F. Adhesives are UL GREENGUARD Gold Certified|quality for LEED points|and comply with SCAQMD and OTC regulations.
Suitable Substrates
Not structural — must be bonded to a suitable substrate such as particleboard|MDF|or plywood (with at least one A-face). Not recommended for direct application to plaster|concrete walls|or gypsum wallboard.
Performance Metrics
Abrasion Wear Resistance
ISO 4586 tested for Surface Wear Resistance. Result Meets or Exceeds 400 Cycles for Type 335, 330 products
Antimicrobial Note
Antimicrobial Protection (silver ion additive) is available as a factory order option on -38 and -60 finish laminates and comes standard on all HD® finishes.
Flammability
ASTM E 84 tested. Class A / Class 1
Light Blocking
Complete
Lightfastness
ISO 4586 tested for Light Resistance. Slight effect for Type 335, 330 products
Maintenance
To clean the surface, use a damp cloth or sponge and a mild soap or detergent. Rinse thoroughly with warm water and wipe dry. Avoid acidic or abrasive cleaners. A diluted bleach solution can be used as a disinfectant. Reference the Care & Maintenance Guide for additional information
Stain Resistance
ISO 4586 tested for Stain Resistance. No effect from Reagents 1-10 and Slight effect from Reagents 11-15 for Type 335, 330 products
Water Resistance
ISO 4586 tested for Boiling Water Resistance. Slight effect on glossy surfaces. No effect on other finishes.
Sustainability
Human Health
Human Health Impact
CDPH Standard Method v1.2-2017, Declare Product Label, Declare Product Label - LBC Red List Approved, Health Product Declaration (HPD), Low Emitting/Low VOC, SCS Indoor Advantage Certified, SCS Indoor Advantage GOLD, UL GREENGUARD, UL GREENGUARD GOLD
