<ul><li>Column lets you customize your shower with a showerhead and handshower</li> <li>Designed for new installations or retrofit to replace an existing installed shower arm</li> <li>Diverter at base of column makes for easy toggling between handshower and showerhead</li> <li>Slidebar bracket allows you to adjust the height and angle of the handshower</li> <li>Showerhead</li> <li>handshower, and shower hose are sold separately to allow for customized decor and functionality</li> <li>KOHLER® finishes resist corrosion and tarnishing</li></ul>
Product Name

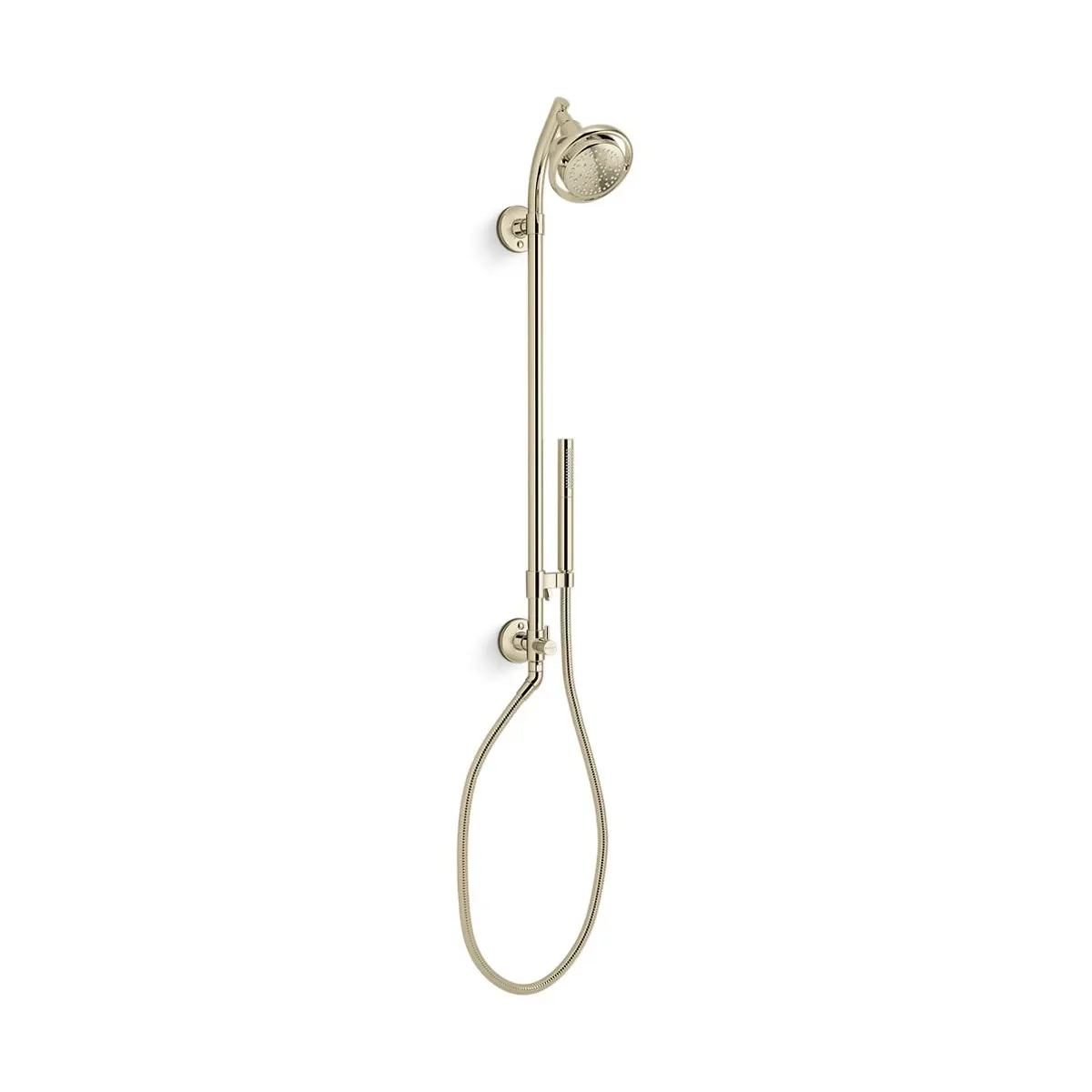

Hydrorail®-S Bath/Shower Column
Sample Note
Please note samples are for reference of color and finish only.
Warranty
Limited Warranty
Manufacturer Notes
All product dimensions are nominal. Install this product according to the installation instructions. Order deep roughing-in kit 1194630 if the distance from the elbow to the finished wall surface is between 2-7/8” (73 mm) to 4” (102 mm). Order shallow roughing-in kit 1187917 if the distance from the elbow to the finished wall surface is less than 1-3/8” (35 mm). A 3” (76 mm) escutcheon/mounting collar is supplied to fit a 1” (25 mm) to 1-1/4” (32 mm) supply connection hole diameter. Order 1194302 large escutcheon/mounting collar kit if the supply connection hole diameter is between 1-1/4” (32mm) to 2-1/4” (57 mm)
Material & Finish
Content
Metal
Format
Modular
Availability & Procurement
Availability
Confirm Stock Level with Sales Rep
Technical Specifications
Product Features
ADA Compliant
Applications & Usage
Application Filter
Bath
Installation
Wall-mount bath or shower installation, Installs in less than 60 minutes without changes to in-wall plumbing (subject to condition of existing installation), May require additional service parts based on installation type (see installation guide for details), Includes an adapter that will fit with most installations but may require one or more kits (sold separately), Includes an adapter that will fit with most installations but may require K-1194630, K-1187917 or K-1194302
