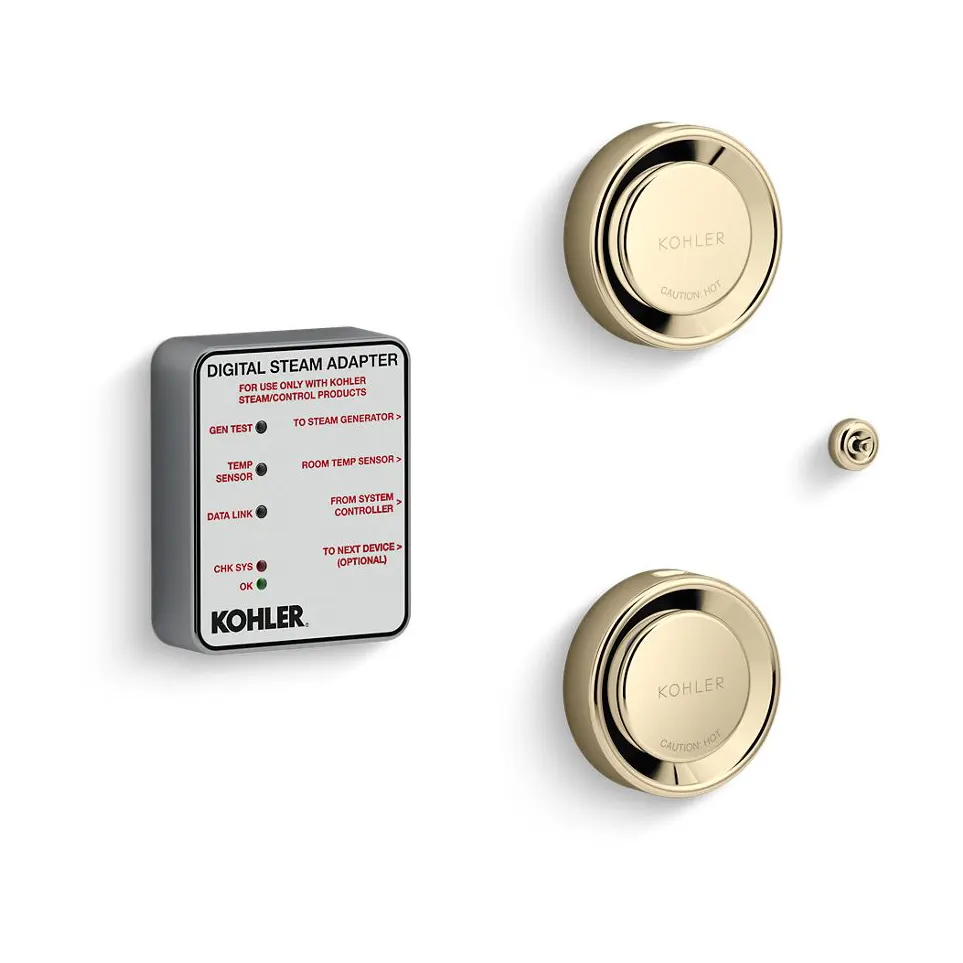

<ul><li>Allows Kohler Invigoration® steam generator to be controlled via the DTV+™ and Anthem™ showering system</li> <li>For use with Kohler Invigoration® Steam Generators between 18 and 30 kilowatts</li> <li>Adjustable temperature settings between 90°F and 125°F</li> <li>Aromatherapy reservoir on steam heads</li> <li>Includes two steam heads</li> <li>temperature sensor</li> <li>and adapter</li> <li>Circular steam head design allows steam to be evenly dispensed throughout shower</li> <li>20-minute safety shutoff</li> <li>Quick-connect RJ-12 cord and connector for simplified installation and service</li> <li>Not compatible with other manufacturers' steam generators</li> <li>Mounting arm and gasket included</li> <li>KOHLER® finishes resist corrosion and tarnishing</li></ul>
Product Name
Invigoration® Series Tandem Digital Steam Adapter Kit
Sample Note
Please note samples are for reference of color and finish only.
Warranty
Limited Warranty
Manufacturer Notes
All product dimensions are nominal. Install this product according to the installation instructions. Risk of scalding. Do not locate the steam head near a seat or bench, as the steam head is hot during operation and may scald the user if touched. The temperature sensor should be mounted on the wall opposite the steam head. The steam head should be located as far from the seating area as possible. Locate the steam head 6" (152 mm) above the floor and at least 4-1/2" (114 mm) from the threshold
Material & Finish
Format
Modular
Availability & Procurement
Availability
Confirm Stock Level with Sales Rep
Technical Specifications
Length
4
Size
4 in x 3-1/4 in
Applications & Usage
Application Filter
Bath
Installation
Requires DTV+™ or Anthem™ showering components (sold separately)
