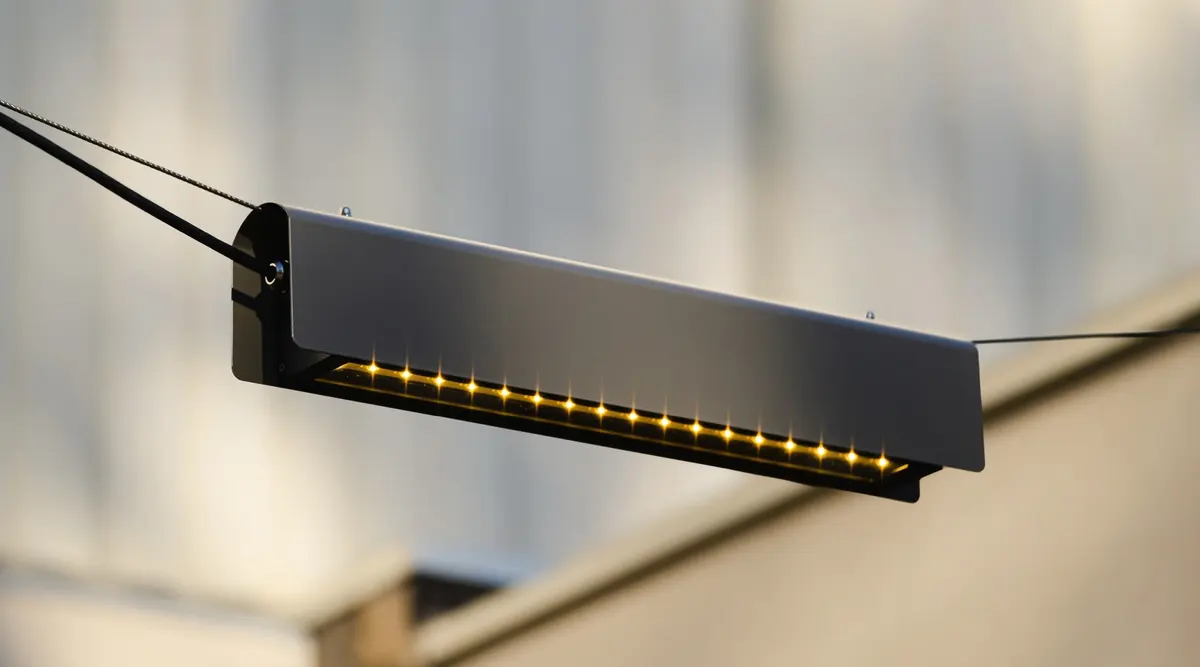

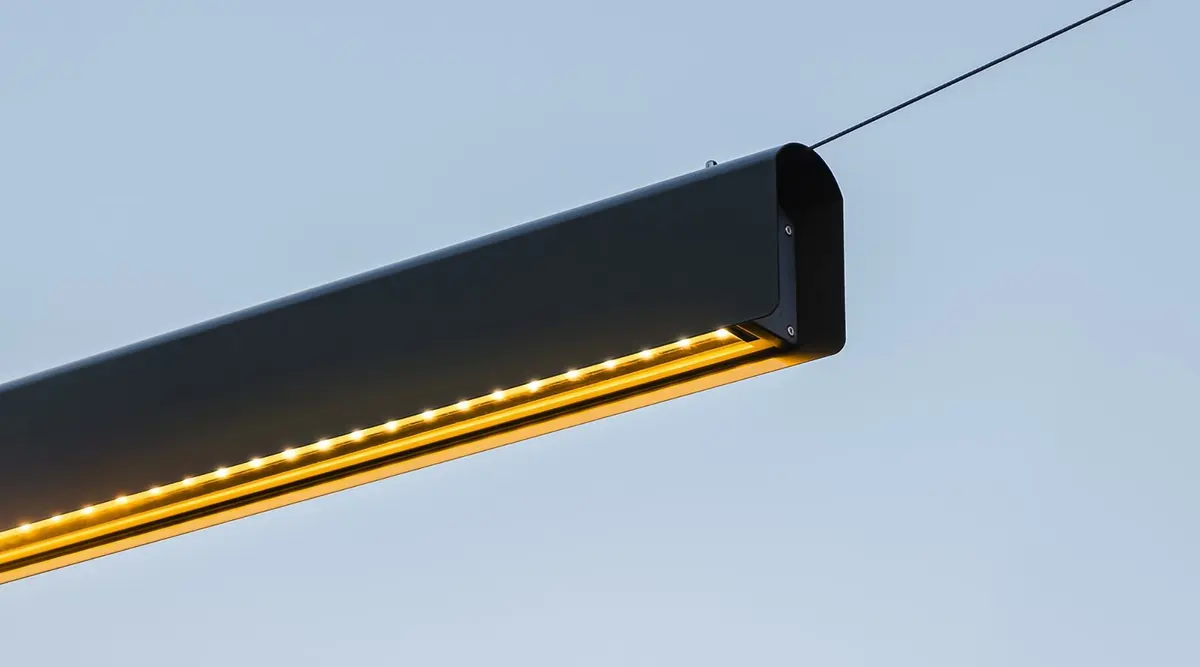

<ul><li>Light Engine - High powered LEDs mounted to a RoHS compliant circuit board with PMMA optics affixed to each LED on the board</li></ul><ul><li>IIAvailable in 2700K, 3000K, and 4000K. >80 CRI across all available color temperature</li></ul><ul><li>I LED Configuration - 18 LEDs, 36 LEDs</li></ul><ul><li>IElectrical - 120V - 277V, 50/60 Hz electronic driver. 0-10V dimming as standard (DALI dimmable upon request). -40°C start temperature</li></ul>
Product Name
Louis
Warranty
Urbidermis guarantees the composition and performance features of all material that shape the product for a period of three years. Electrical components including LED boards and electronic drivers are guaranteed for a period of five years
Material & Finish
Content

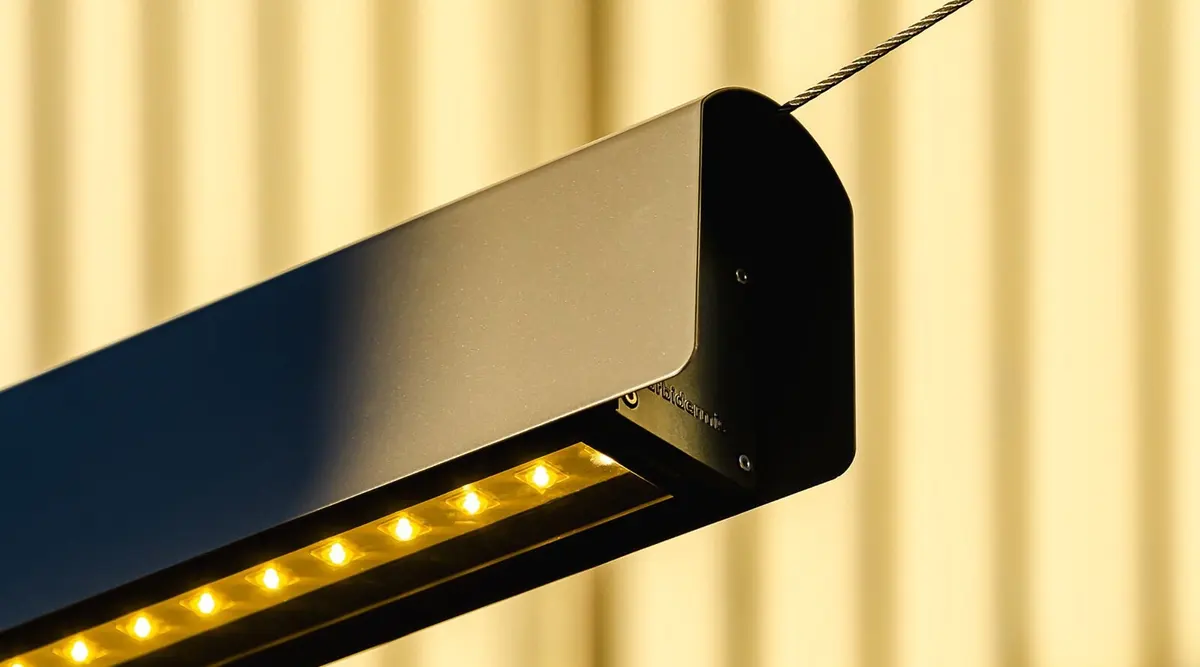

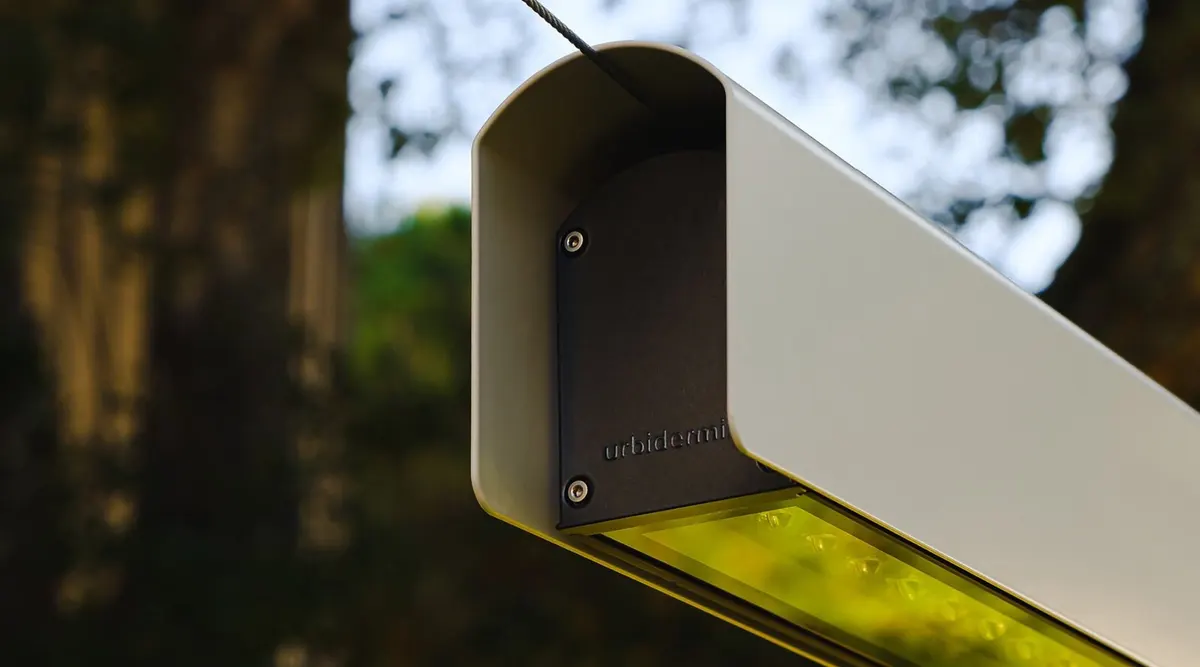

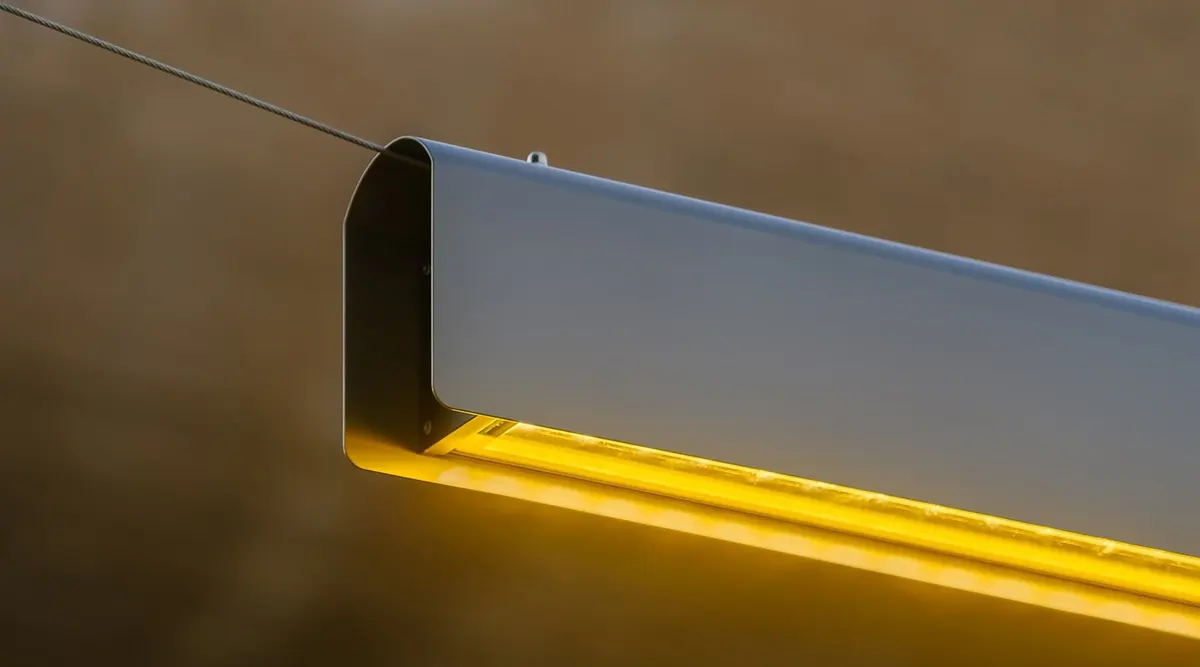

Luminaire made of extruded aluminum. End caps are cast aluminum, anodized. Powdercoat finish is suitable for marine/coastal environments Tempered optical glass diffuser with silicone sealing gaskets. Stainless steel hardware and metal cord seal
Availability & Procurement
Availability
Confirm Stock Level with Sales Rep
Technical Specifications
Size
26 in L, 48 in L
Total Weight
18 LED: 9.7 lbs, 36 LED: 17.6 lbs
Applications & Usage
Application Filter
Lighting
Installation
Refer to Installation Guide PDF for more details
Performance Metrics
Light Blocking
Complete
Maintenance
Louis is designed and engineered to live a long, useful life in outdoor spaces without the use of chemical cleaners to maintain the finish. The durability, longevity and low maintenance of our products contribute to responsible stewardship of the earth’s resources. Clean with a smooth cloth. Do not use ammonia products, solvents, abrasives, etc
Sustainability
Human Health
Human Health Impact
CE Certified, Low Emitting/Low VOC, RoHS Compliant
Climate Health
Climate Impact
100% Recyclable, CE Certified, Certified B Corporation
