Natural White Oak - Grooved Sandwich Panel

Name: Natural White Oak - Grooved Sandwich Panel
Brand: MCM Acoustical
SKU: 101599353

Wood

Overnight

Commercial

Natural Maple

Sample size: 4.5 in x 7.8 in x 1.2 in

Arrives tomorrow

Color

(Natural Maple)

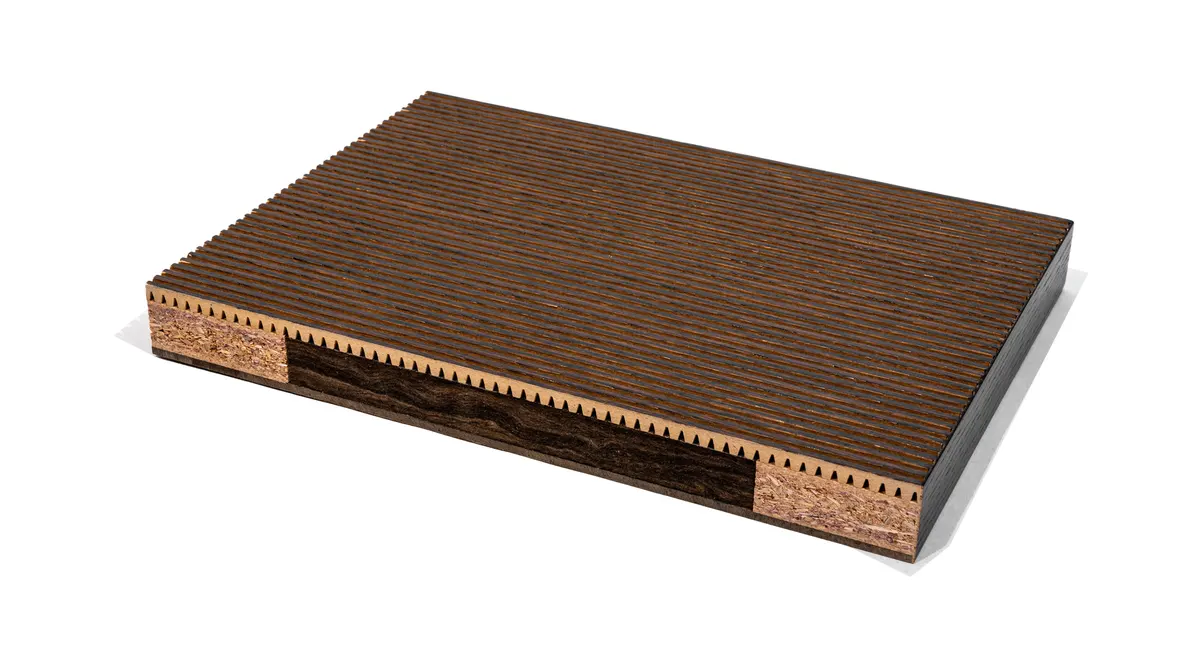

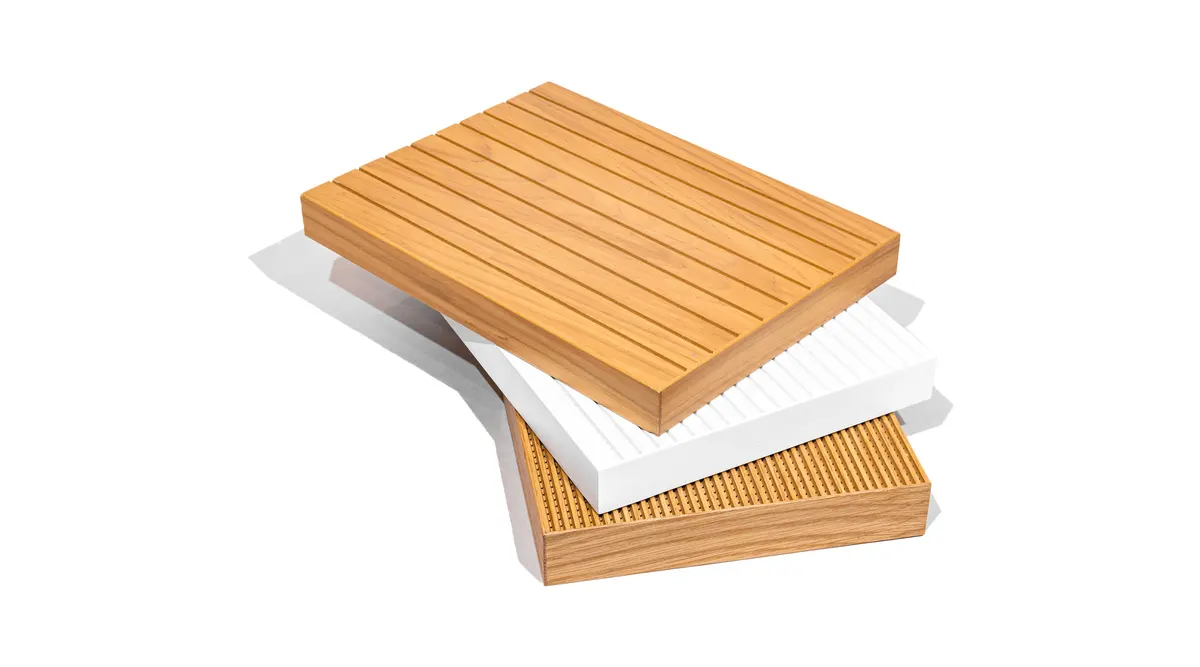

Construction: Wood veneer with rigid fiberglass core to absorb noise; Grooved
Content: Wood Veneer
Format: Panel / Sheet
Wood Species: Maple, Walnut, Cherry, White Oak

Edge End: Edgebanded with matching veneer
Size: 5 ft x 10 ft (1.5 m x 3 m); Standard groove spacings are 3/16 in (5 mm), 3/8 in (10 mm), and 5/8 in (15 mm)

Application Filter: Ceiling|Wall
Installation: CELING PANEL - DIRECT MOUNTING SYSTEM: MCM Acoustical's Direct Mounting system is designed to attach ceiling panels directly to ceiling grid using z-clips; Panels weigh between 3 and 4 pounds per square foot, so use heavy-duty C-channels and furring channels; Suspend the Grid with #12 Gauge hanger wire or equivalent; Hang wire directly from building structure with a maximum spacing of 4ft.; Attach plywood strips with z-clip track across furring channels as per assembly drawing, available on request; Assembly drawing available in download section; WALL PANEL - DIRECT MOUNTING SYSTEM: MCM Acoustical's Direct Mounting system is designed to attach wall panels directly to wall substrate using z-clips; Wall substrate can be 3/4 in thick x 3 in wide plywood strip or hat / furring channel screwed directly to wall frame; Aluminum z-clip tracks are screwed to wall substrate; Aluminum z-clips are attached to the back of the wall panels with wood screws provided. Typically mounting holes are factory located and pre-drilled. Spacing between clips must not exceed 24 in in both directions vertical and horizontal; Aluminum z-clip attached to the back of wall panel interlock with Aluminum z-clip track attached to wall substrate; Assembly drawing available in download section

Flammability: The Grooved Sandwich Panels are Class A fire rated interior wood finish products as per ASTM E84 and CAN/ULC S102 tested in an accredited NVLAP test facility as a finished composite product using Class A components
Light Blocking: Complete
Maintenance: Clean the uncovered wooden surfaces of MCM Acoustical products following the cleaning guidelines provided by the manufacturer

Circular Economy: Forest Stewardship Council (FSC) Certified, Recycled Content, Recycled Content - Pre-Consumer

LEED: As all products are custom-fabricated, LEED credit opportunities are project by project. For detailed information, please contact MCM Acoustical
