Limited warranty for one year from the date of purchase
Material & Finish
Construction
High Pressure Laminate
Content
Kraft Paper, Melamine Resin, Phenolic Resin
Finish

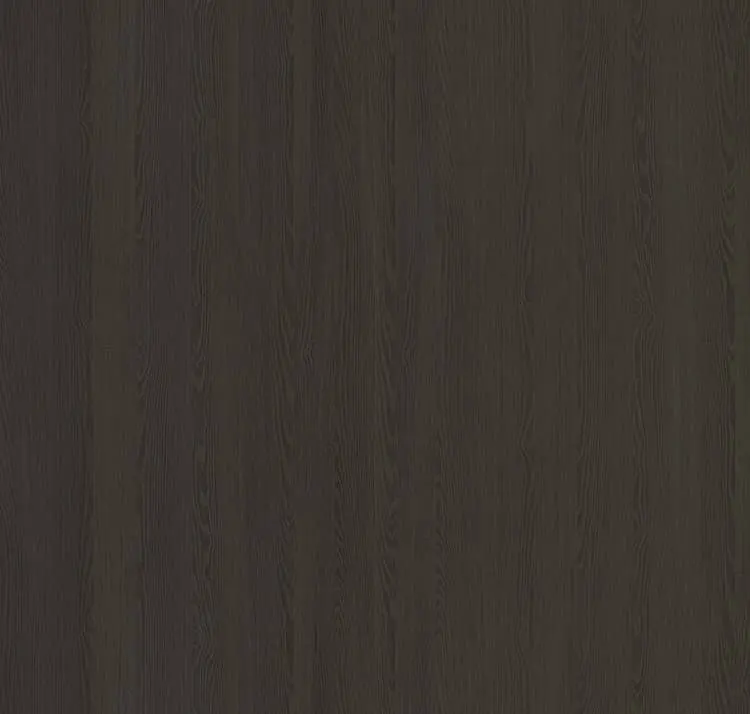

Pure Grain (Finish Code: PG)
Format
Panel / Sheet
Availability & Procurement
Availability
Typically Stocked
Country Of Origin
United States
Custom Capabilities
Also available in made-to-order sizes and finishes. Inquire with brand or local brand representative
Technical Specifications
Dimensional Stability
Postforming grade laminate is hygroscopic and therefore capable of absorbing moisture from the atmosphere. Grade 12 (HGP) = 1.1% (max) change in both Machine and Cross Directions. Grade 20 (VGP) = 1.4% (max) change in both Machine and Cross Directions.
Impact Resistance
Resistant to scratches and impacts under normal use conditions.
Length
2009
Overall Thickness
20
Product Features
Customizable
Size
The most common sheet sizes are 4x8,10 ft, 5x10,12 ft, and 2.5x12 ft. Please reach out to your local Formica representative regarding made-to-order sizes and finishes
Passes FMVSS 302; Not ASTM E84 rated (ASTM E84 rated grades are available)
Flexural Strength
Grade 12 (HGP) has a minimum bend radius of 5/8" (15.9 mm) for outer edges and 3/16" (4.8 mm) for cove radii. Grade 20 (VGP) has a minimum bend radius of 1/2" (12.7 mm) for outer edges.
Tested to have Slight Resistance per LD3 evaluation
Sustainability
Human Health
Human Health Impact
UL GREENGUARD GOLD, Declare Product Label - LBC Red List Approved, UL GREENGUARD, CDPH Standard Method v1.2-2017, Low Emitting/Low VOC, RoHS Compliant, Health Product Declaration (HPD), Precautionary List Free
VOC Emissions Testing Methodology
CDPH / CHPS 01350 Compliant
Climate Health
Climate Impact
Life Cycle Assessment (LCA), EC3, Environmental Product Declaration (EPD)
Emissions
A low-emitting material per GREENGUARD evaluation
Ecosystem Health
Ecosystem Health
Forest Stewardship Council (FSC) Certified|Forest Stewardship Council (FSC) Certified - Chain of Custody
Social Health & Equity
Social Equity Impact
Build America, Buy America Act (BABAA) Compliant, Forest Stewardship Council (FSC) Certified, Made in USA, Forest Stewardship Council (FSC) Certified - Chain of Custody
Circular Economy
Circular Economy
Forest Stewardship Council (FSC) Certified, EC3, Environmental Product Declaration (EPD), Declare Product Label - LBC Red List Approved, Recycled Content, Recycled Content - Post-Consumer, Recycled Content - Pre-Consumer, Health Product Declaration (HPD), USDA Certified Biobased Product
