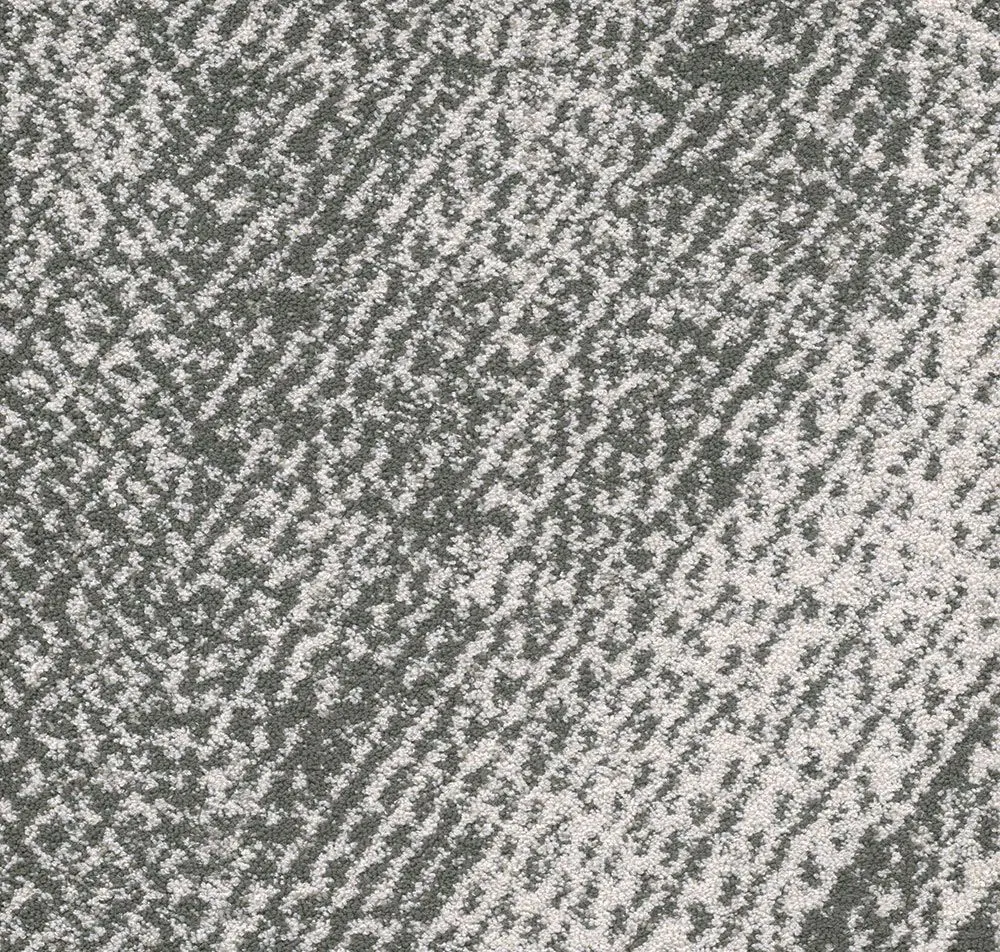

Milliken Overlay | Product

Core Specs

General Information

Collection Name: Open Studio
Color Name: Gesso White
Color Number: OVL108-215
Manufacturer SKU: 2710038271
Price Range: $$
Product Name: Overlay
Warranty: Lifetime Warranty. Refer to Warranty attachment for details

Material & Finish

Backing: PVC-Free WellBAC® Comfort Cushion
Carpet Fiber Type: Type 6 Nylon
Construction: Tufted, Textured Loop
Content: ECONYL® Recycled Nylon
Dye Method Filter: Solution Dyed
Finish: StainSmart®
Format: Modular

Availability & Procurement

Availability: Quick Ship
City Of Origin: LaGrange
Country Of Origin: United States
Custom Capabilities: Available with TractionBack®
Lead Time: 3 Weeks
Manufacturing Location: La Grange, GA

Technical Specifications

Carpet Pile Height: Finished Pile Thickness - 0.115 in (2.92 mm)
Length: 19.7
Overall Thickness: 8.8
Pile Face Weight: 820.5
Product Features: Customizable
Yarn Tuft Details: 1/12 Gauge, 9.4 SPI, 113/sq in (1,750/100 sq cm) Tufts

Applications & Usage

Application Filter: Flooring
Installation: Refer to Installation PDF for more details
Installation Direction: Monolithic, Horizontal Ashlar

Performance Metrics

Crocking: AATCC 165 ≥ 4.0 Wet or Dry
Durability: Contract (Severe Traffic)
Electrostatic Propensity: AATCC 134 Static Electricity (20% R.H.,70° F) ≤ 3.5 kV, Permanent Conductive Fiber
Flammability: ASTM E648 Radiant Panel - = 0.45 (Class I); ASTM E662 or NFPA 258-T Smoke Density - = 450; ASTM D2859 or CPSC FF-1-70 Methenamine Pill Test - Self-Extinguishing
Light Blocking: Unknown
Lightfastness: AATCC 16E = 4.0 at 80 Hours
Maintenance: MilliCare® Textile and Carpet Care Service Network

Sustainability

Human Health

VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Health

Emissions: TVOC Range - 0.5 mg/m³ or less
GWP Functional Unit: kg CO2e/m2
LCA Optimization Plan: false

Social Health & Equity

Organizational Commitments: Carbon Disclosure Project, ISO 14001, Science Based Targets Initiative (SBTI)
Sustainability Action Plan: Sustainability Action Plan

Certifications & Disclosures

Disclosure Level: 100 ppm
Environmental Product Declaration: Product-Specific EPD
Ingredient Disclosure: Health Product Declaration (HPD)
LEED: May contribute to LEED credits
VOC Emissions Testing Certificate: CRI Green Label Plus
