American Fiber Cement Patina Inline NXT | Product

Home
Products
Architectural
Facade
Masonry

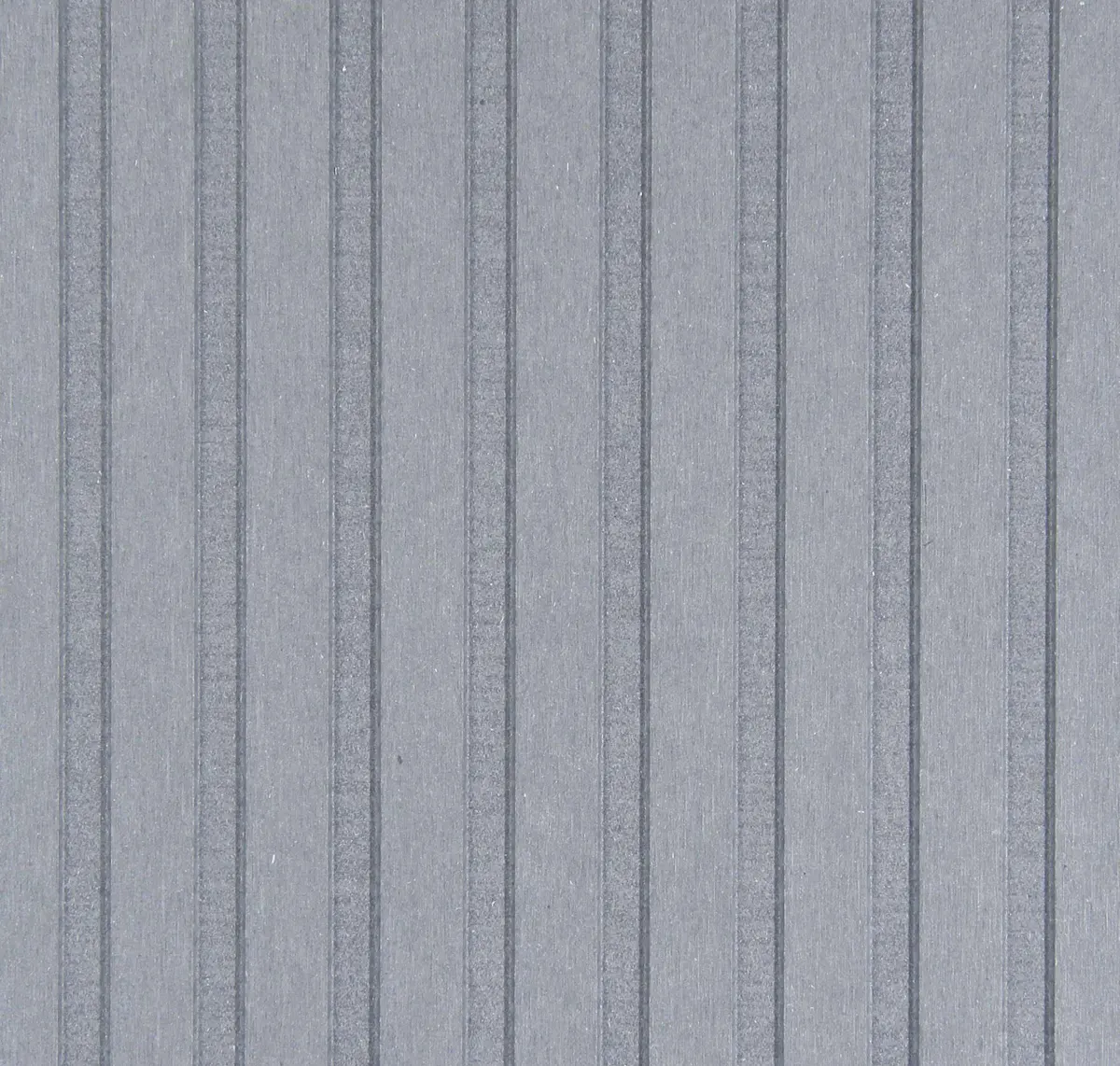

Main

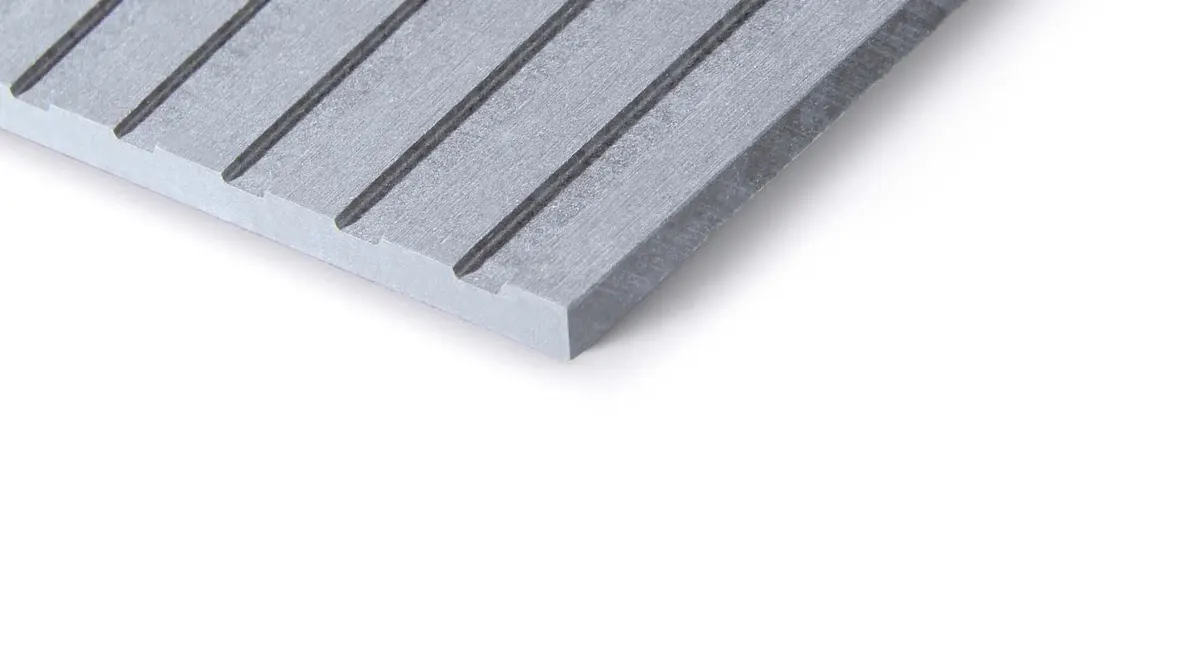

Install_01

Install_03

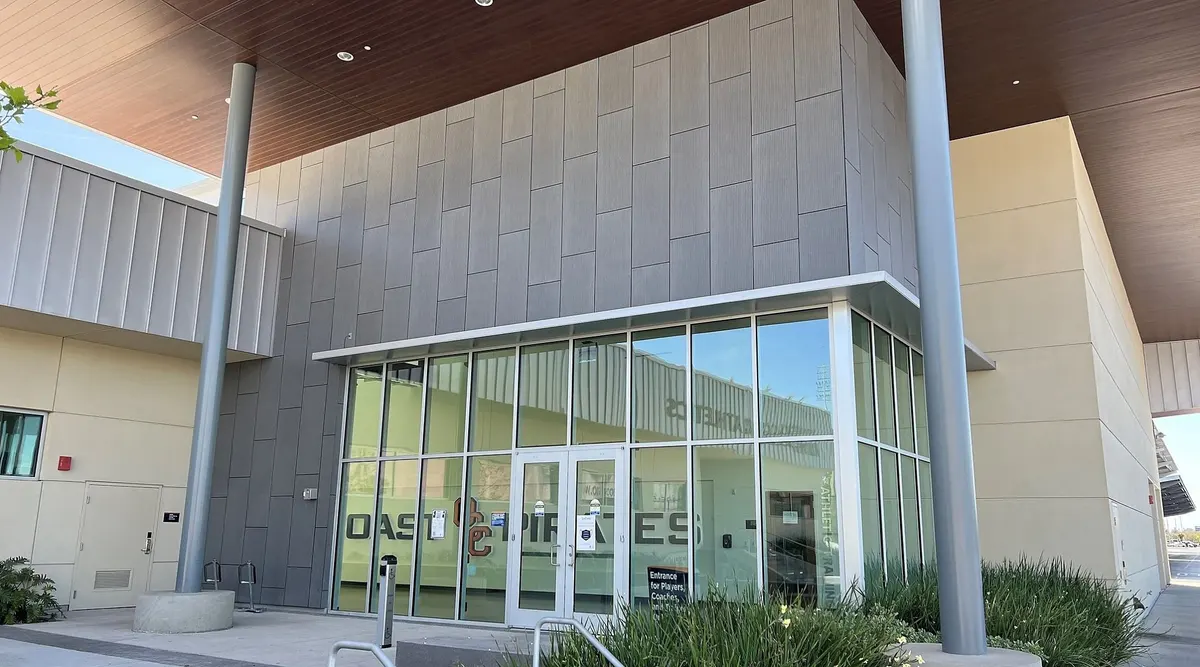

Install_02

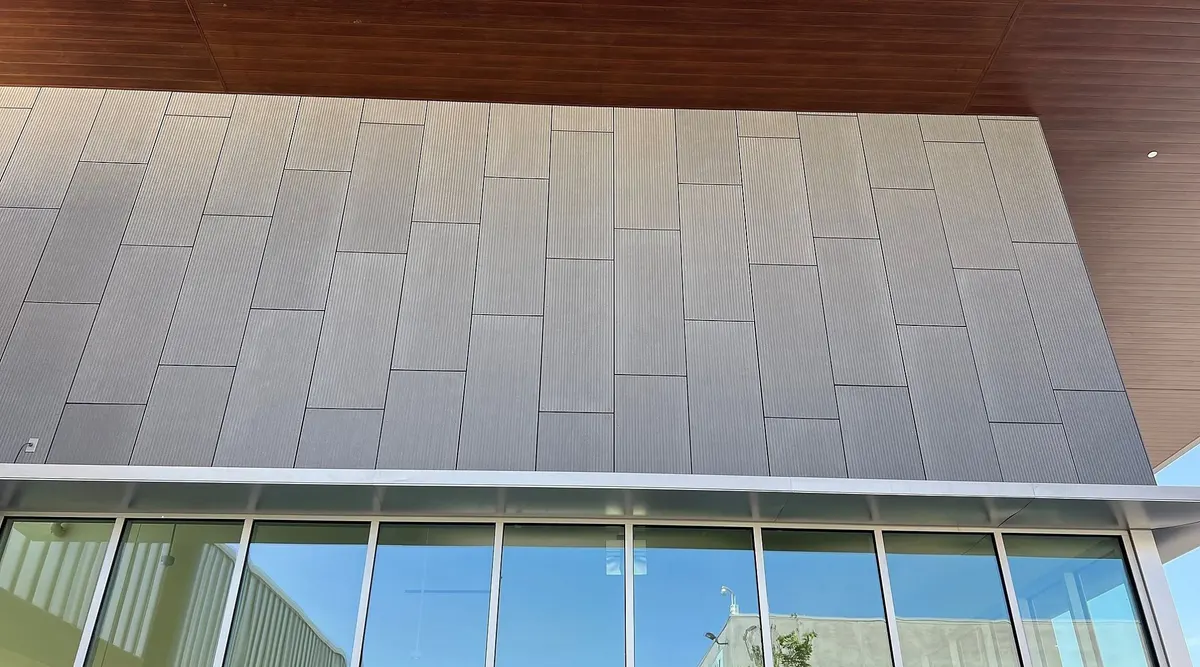

Install_03

Install_02

Install_01

Order sample

Main

Granite

Sample size: 5 in x 5 in x 0.2 in

Arrives tomorrow

Concrete Veneer

Patina Inline NXT

American Fiber Cement

Concrete Veneer

Overnight

Commercial & Residential

$$

Product specifications

Color

(Granite)

Core Specs

General Information

Color Name: Granite
Manufacturer SKU: PI-020
Price Range: $$
Product Name: Patina Inline NXT
Manufacturer Notes: AFC technical staff is available to consult with architects and installers regarding specifications, installation tips, and on-site training

Material & Finish

Construction: Produced according to the Hatschek method with a homogeneous mixture, cut, milled, dried by autoclave, painted, and edge sealed, resulting in through-body color. Fabricated using advanced machinery to custom cut to any required specification
Content: High-density fiber cement board made with Portland cement, quartz silica, cellulose pulp, and wollastonite
Finish: Matte with weather-proof treatment. Over time, this material will patinate
Format: Panel / Sheet, Modular

Availability & Procurement

Availability: Limited Stock
Lead Time: Contact brand or for additional information

Technical Specifications

Dimensional Stability: Coefficient of thermal expansion is 0.01 mm/m °C
Impact Resistance: Pendulum Impact Tested. 2.8 - 2.9 kJ/m²
Size: 48in x 96in, 48in x 120in. Custom sizes and shapes available by request
Total Weight: 2.5 lbs/sqft

Applications & Usage

Application Filter: Facade|Wall|Window
Suitable Substrates: Wood, aluminum, steel. Refer to Installation Guides for additional information.

Performance Metrics

Flexural Strength: EN 12467 Tested. Bending modulus of elasticity is between 13 - 17 GPa depending on conditions. Bending strength is between 21 - 37 MPa depending on conditions.
Light Blocking: Complete

Sustainability

Human Health

Human Health Impact: Health Product Declaration (HPD)

Climate Health

Climate Impact: CARB Compliant, Environmental Product Declaration (EPD)

Circular Economy

Circular Economy: Health Product Declaration (HPD), Environmental Product Declaration (EPD)
