AFC technical staff is available to consult with architects and installers regarding specifications, installation tips, and on-site training
Material & Finish
Construction
Produced according to the Hatschek method with a homogeneous mixture, cut, dried by autoclave, polished, painted, and edge sealed, resulting in through-body color. Fabricated using advanced machinery to custom cut to any required specification
Content
High-density fiber cement board made with Portland cement, quartz silica, cellulose pulp, and wollastonite

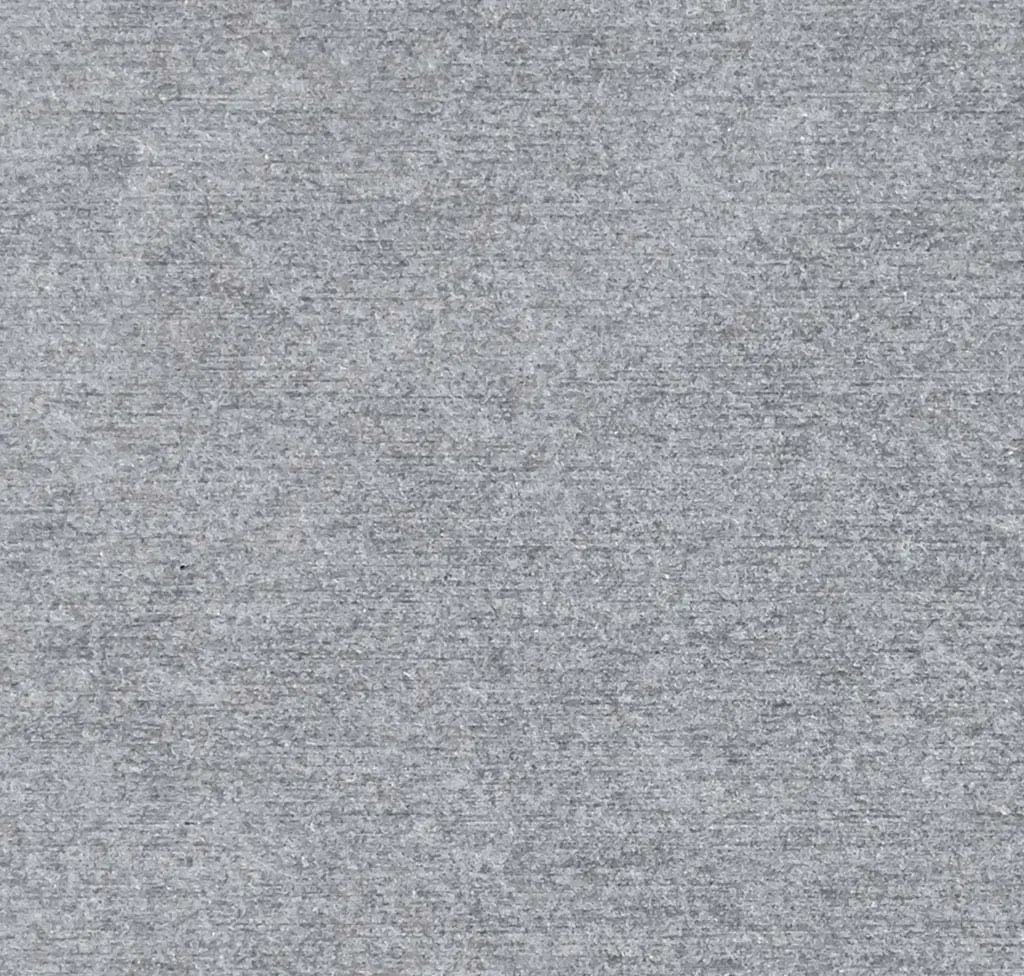

Finish
Matte with weather-proof treatment. Over time, this material will patinate

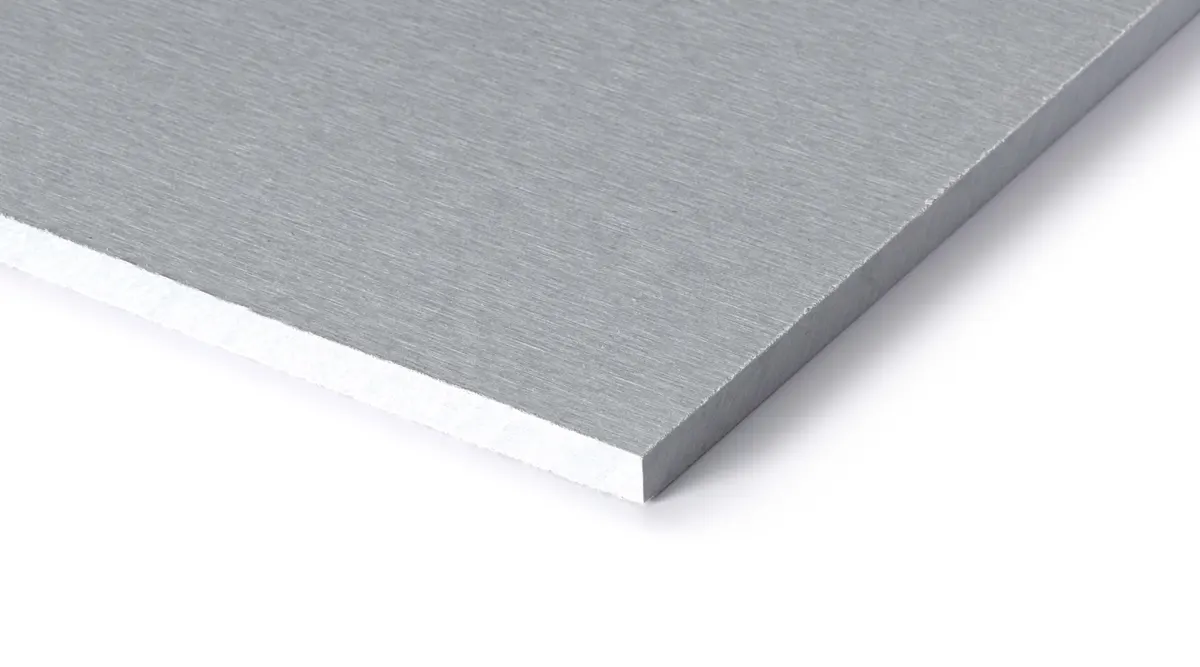

Format
Panel / Sheet, Modular
Availability & Procurement
Availability
Limited Stock, Typically Stocked, Stocked in North America
Lead Time
Contact brand or for additional information
Technical Specifications
Dimensional Stability
Coefficient of thermal expansion is 0.01 mm/m °C
Impact Resistance
EN ISO 148-1 Modified Charpy Pendulum Impact Tested. 2.7 kJ/m² along grain. 3.6 kJ/m² across grain. ETAG 034, ISO 7892 Impact Resistance Tested; Category IV Passed. Category III Passed. Category II Not Tested. Category I Not passed.
Size
48 in x 96 in, 48 in x 120 in. Custom sizes and shapes available by request
Total Weight
2.5 lbs/sqft
Applications & Usage
Application Filter

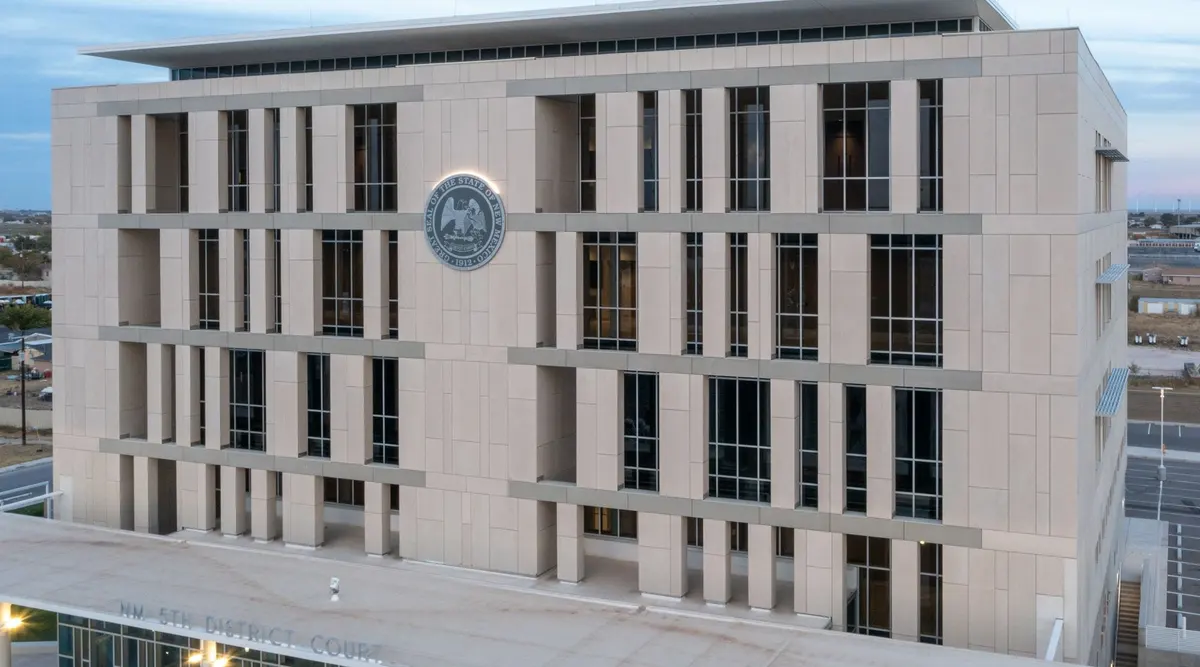

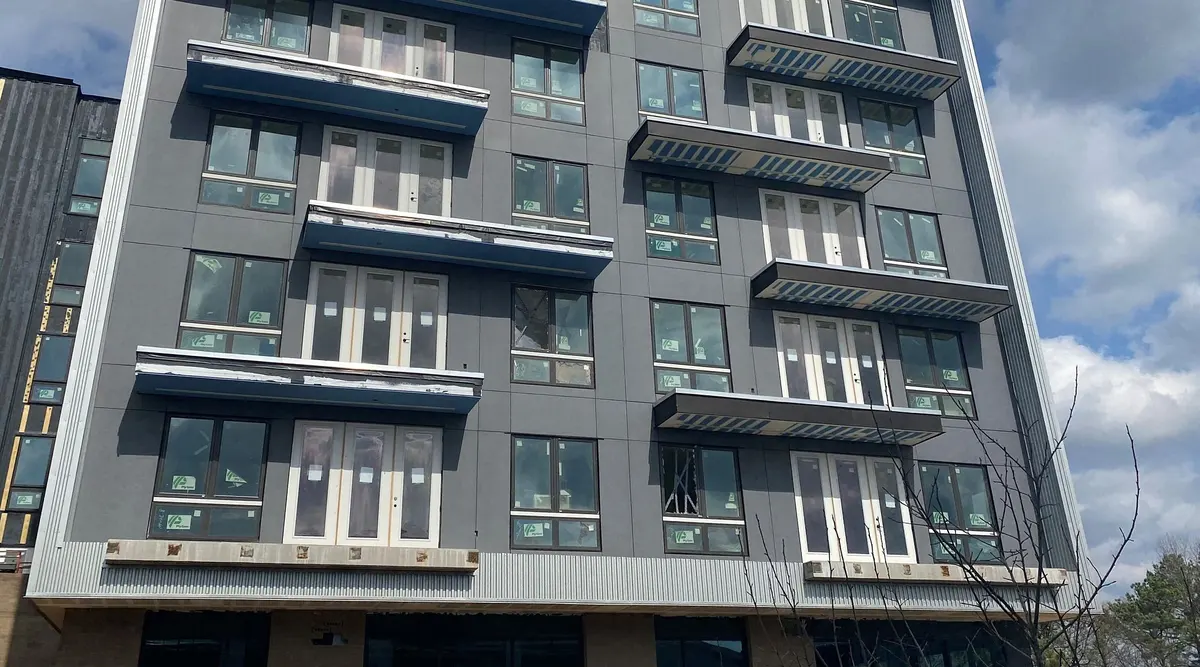

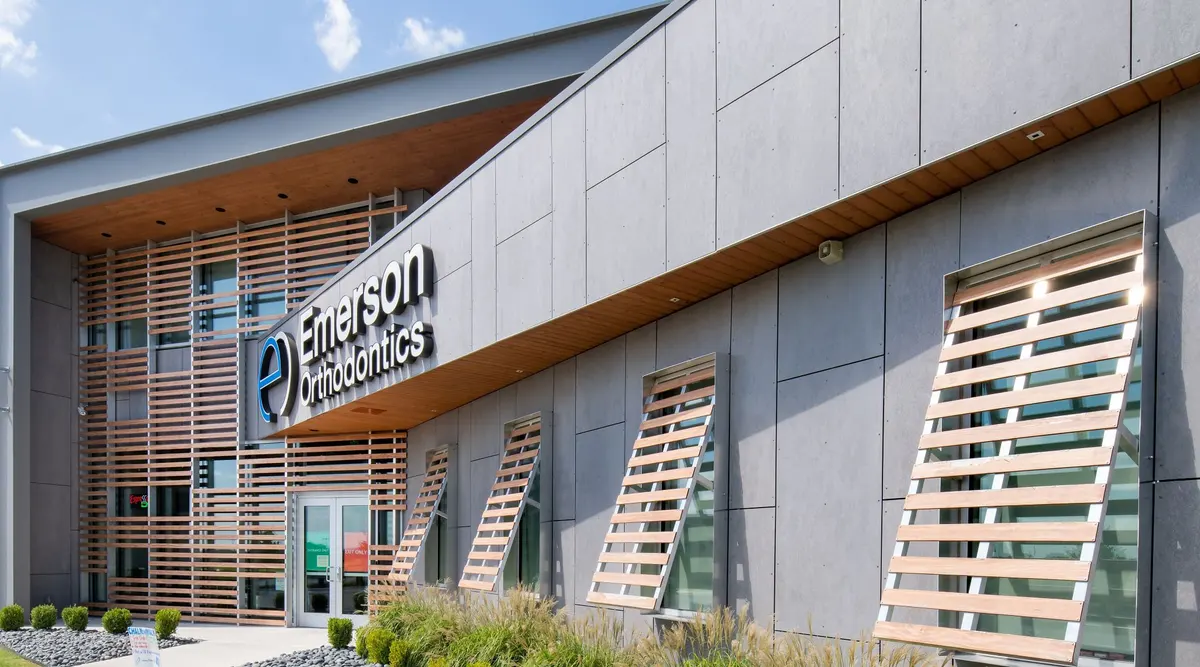

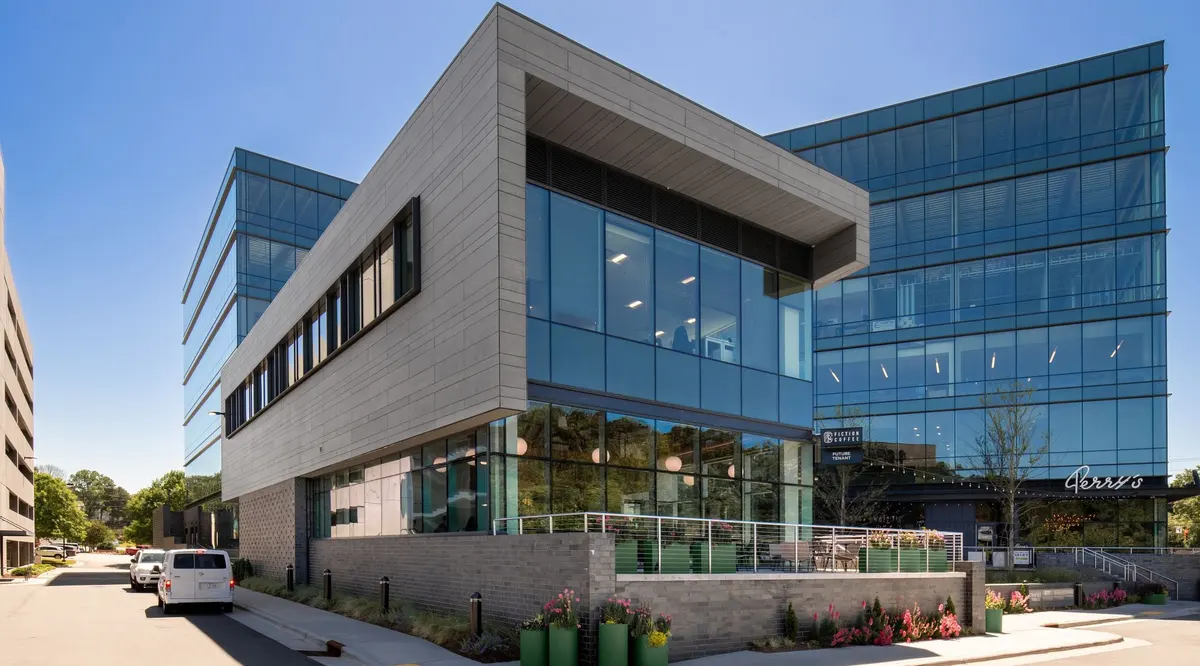

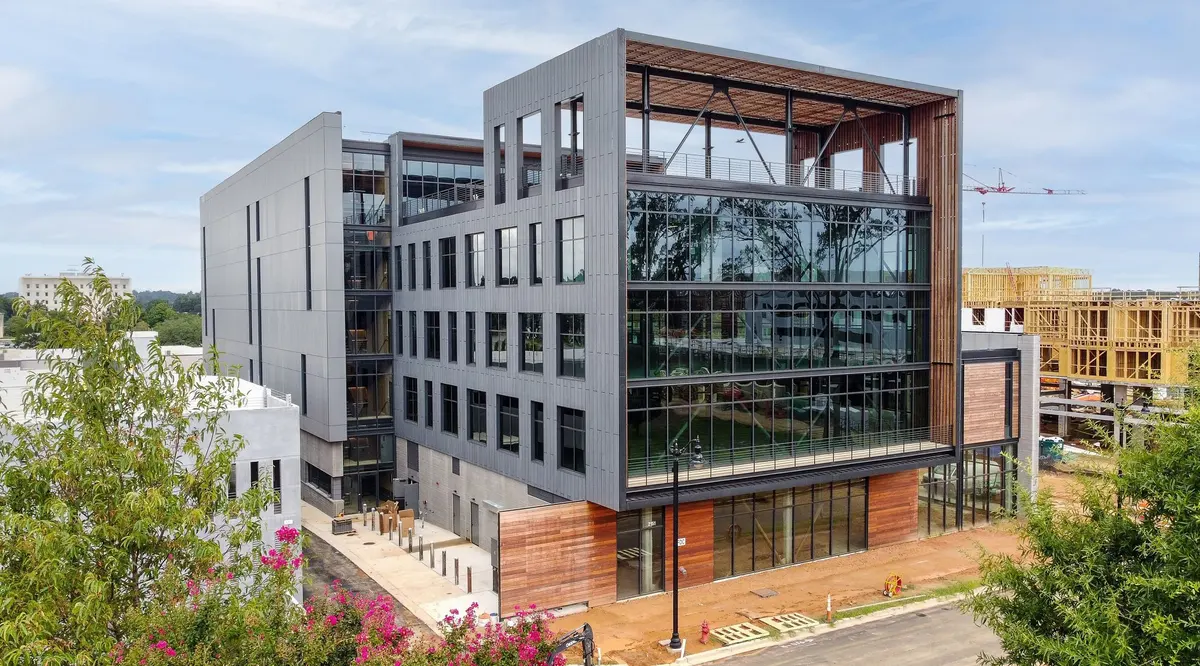

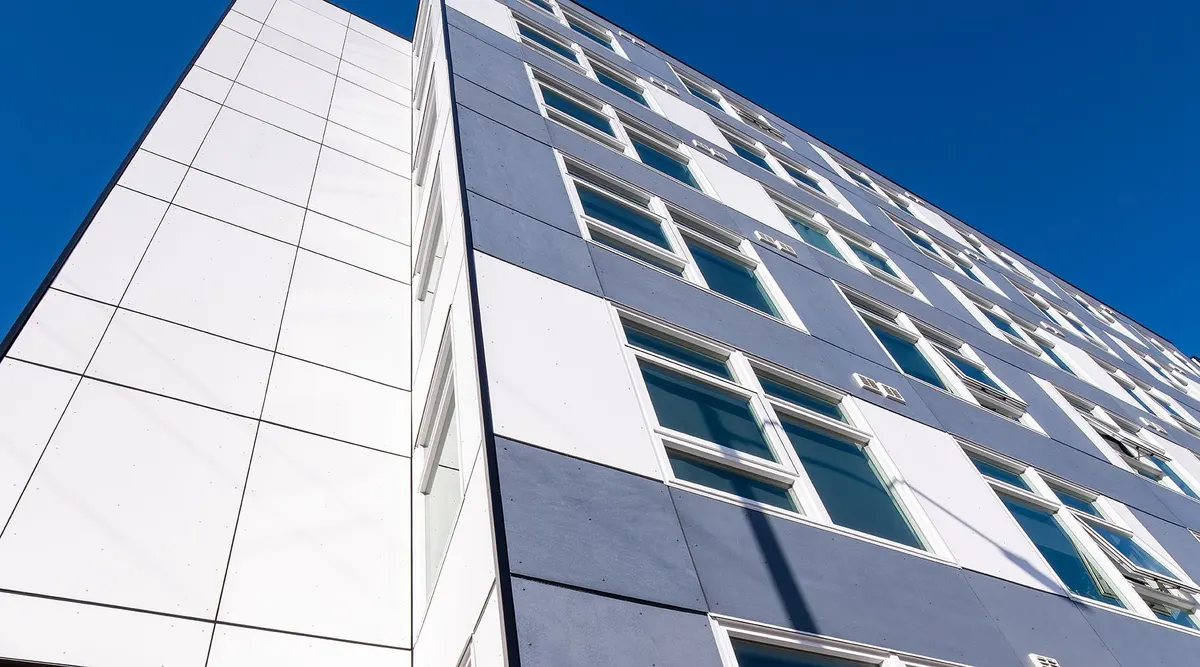

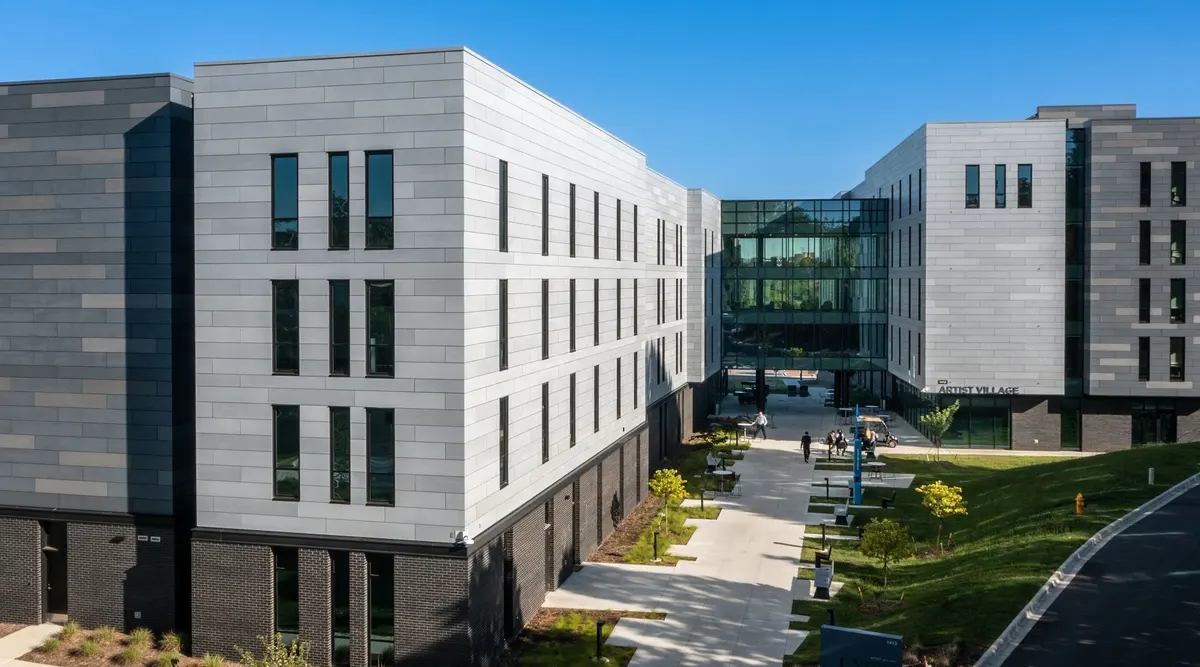

Facade|Wall|Window
Suitable Substrates
Wood, aluminum, steel. Refer to Installation Guides for additional information.
Performance Metrics
Flexural Strength
EN 12467 Tested. Flexural modulus is between 9 - 14 GPa depending on conditions. Bending strength is between 18 - 35 MPa depending on conditions.
