<ul><li>Modular design creates both straight and radiused configurations</li></ul><ul><li>Available with or without backs and arms</li></ul><ul><li>Can be freestanding, surface mounted or embedded Presidio seating is offered with or without backs</li></ul><ul><li>Arms may be specified for either style</li></ul><ul><li>One arm – left or right side – or two arms may be specified per seat</li></ul><ul><li>Left or right arm is determined from the position of sitting in the seat</li></ul><ul><li>Presidio seating may be specified in straight runs or in standard curved configurations of 60" radius or 118" radius (to center of support)</li></ul><ul><li>The 60" radius is formed with only angled seats</li></ul><ul><li>The 118" radius is formed by alternating straight and angled seats, starting with angled seat</li></ul><ul><li>Presidio seats are framed by 1-1/4" o.d., .120 wall steel tube with four mitered corners</li></ul><ul><li>The insert panel is constructed of 5/8" o.d</li></ul><ul><li>round steel rods welded tithe steel frame</li></ul><ul><li>Arms are 1-1/4" o.d., .065 wall thickness steel tube, welded to the seat frame</li></ul><ul><li>Hardware to attach seats to horizontal tube is shipped with each order</li></ul><ul><li>Hardware for anchoring supports is NOT included</li></ul>
Product Name

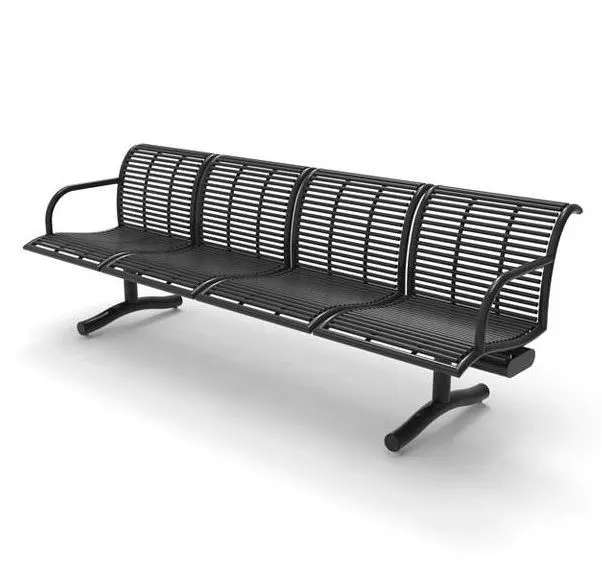

Presidio Bench
Material & Finish
Content
Metal
Availability & Procurement
Availability
Confirm Stock Level with Sales Rep
Technical Specifications
Size
Backed Straight Seats - 22 1/2 in x 30 in ; Narrow-Backed Angled Seats - 17 in x 29 in x 30 in ; Wide-Backed Angled Seats - 29 in x 17 in x 30 in ; Straight Seats without Backs - 22 in x 22 in ; Angled Seats without Backs - 19 in x 28 in x 22 in
