MCM Acoustical Recon Maple - Miniperforated Panel | Product

Core Specs

General Information

Color Name: Natural Maple
Manufacturer SKU: MNPP-NM
Price Range: $
Product Name: Natural Maple - Miniperforated Panel
Warranty: 1 Year

Material & Finish

Backing: Acoustical Fleece
Construction: Miniperforated
Content: Wood Veneer
Format: Panel / Sheet

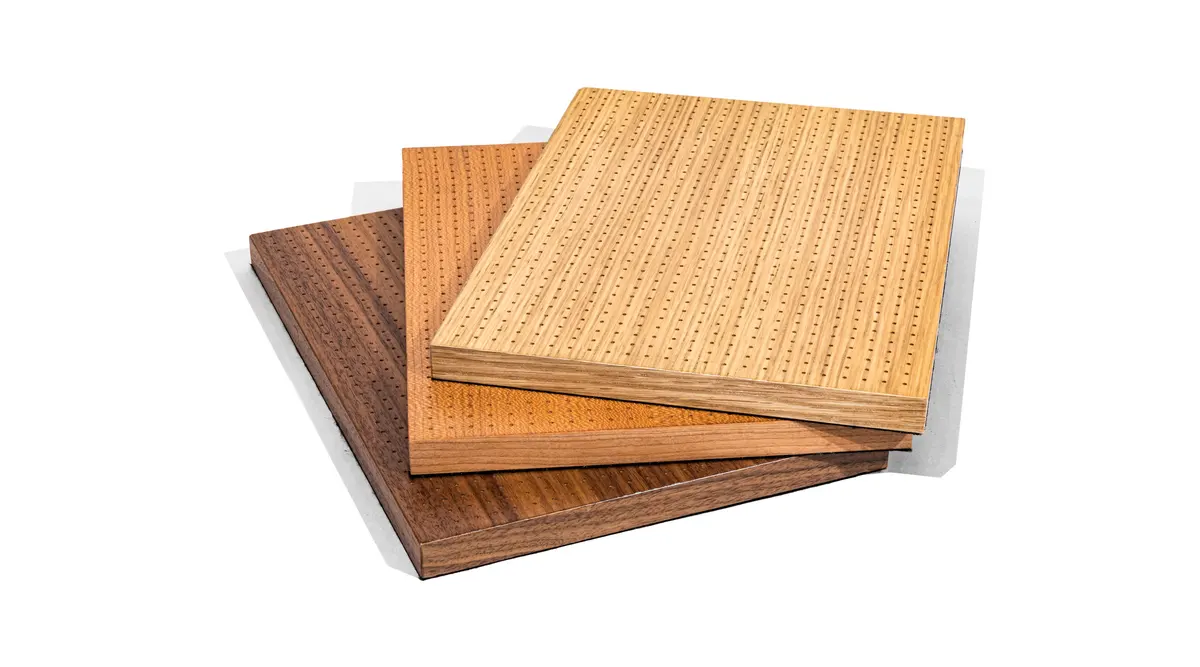

Wood Species: Maple, Walnut, Cherry, White Oak

Availability & Procurement

Availability: Quick Ship
Lead Time: 4-6 weeks

Technical Specifications

Edge End: Edgebanded with matching veneer
Size: 5 ft x 10 ft (1.5 m x 3 m)

Applications & Usage

Application Filter: Ceiling|Wall
Installation: CELING PANEL - DIRECT MOUNTING SYSTEM: MCM Acoustical's Direct Mounting system is designed to attach ceiling panels directly to ceiling grid using z-clips; Panels weigh between 3 and 4 pounds per square foot, so use heavy-duty C-channels and furring channels; Suspend the Grid with #12 Gauge hanger wire or equivalent; Hang wire directly from building structure with a maximum spacing of 4ft.; Attach plywood strips with z-clip track across furring channels as per assembly drawing, available on request; Assembly drawing available in download section; WALL PANEL - DIRECT MOUNTING SYSTEM: MCM Acoustical's Direct Mounting system is designed to attach wall panels directly to wall substrate using z-clips; Wall substrate can be 3/4 in thick x 3 in wide plywood strip or hat / furring channel screwed directly to wall frame; Aluminum z-clip tracks are screwed to wall substrate; Aluminum z-clips are attached to the back of the wall panels with wood screws provided. Typically mounting holes are factory located and pre-drilled. Spacing between clips must not exceed 24 in in both directions vertical and horizontal; Aluminum z-clip attached to the back of wall panel interlock with Aluminum z-clip track attached to wall substrate; Assembly drawing available in download section

Performance Metrics

Flammability: The Miniperforated Panels are Class A fire rated interior wood finish products as per ASTM E84 and CAN/ULC S102 tested in an accredited NVLAP test facility as a finished composite product using Class A components
Light Blocking: Complete
Maintenance: Clean the uncovered wooden surfaces of MCM Acoustical products following the cleaning guidelines provided by the manufacturer

Sustainability

Human Health

Human Health Impact: CDPH Standard Method v1.2-2017, Low Emitting/Low VOC

Ecosystem Health

Ecosystem Health: Forest Stewardship Council (FSC) Certified

Social Health & Equity

Social Equity Impact: Forest Stewardship Council (FSC) Certified

Circular Economy

Circular Economy: Forest Stewardship Council (FSC) Certified, Recycled Content, Recycled Content - Pre-Consumer

Certifications & Disclosures

LEED: As all products are custom-fabricated, LEED credit opportunities are project by project. For detailed information, please contact MCM Acoustical
