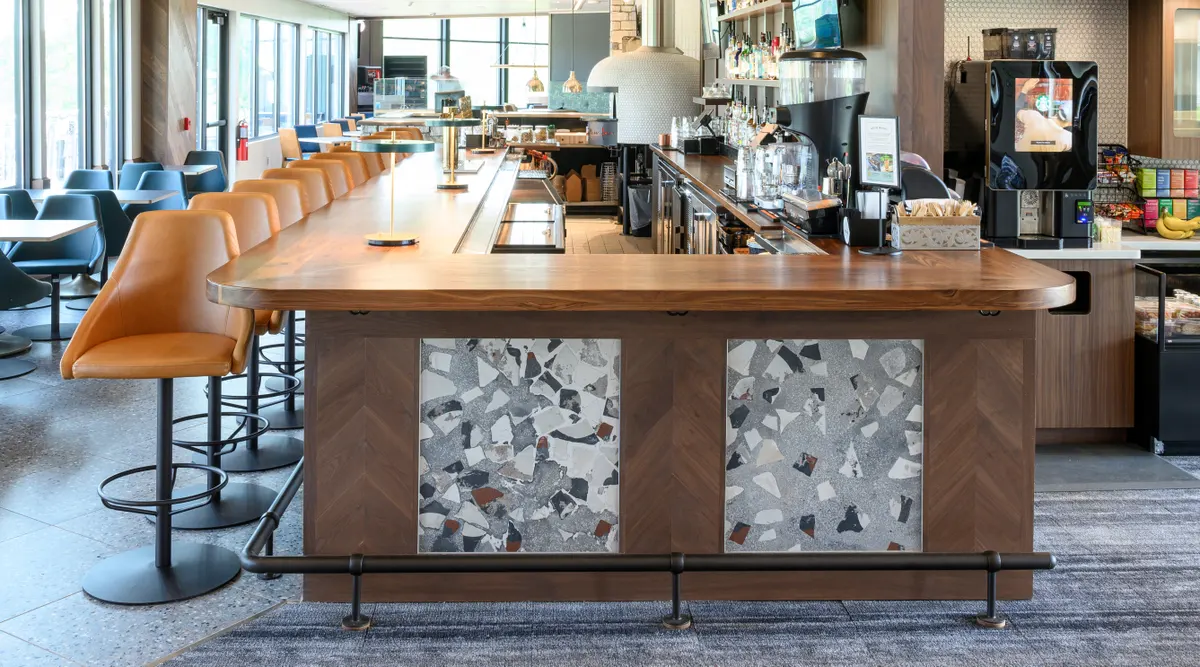

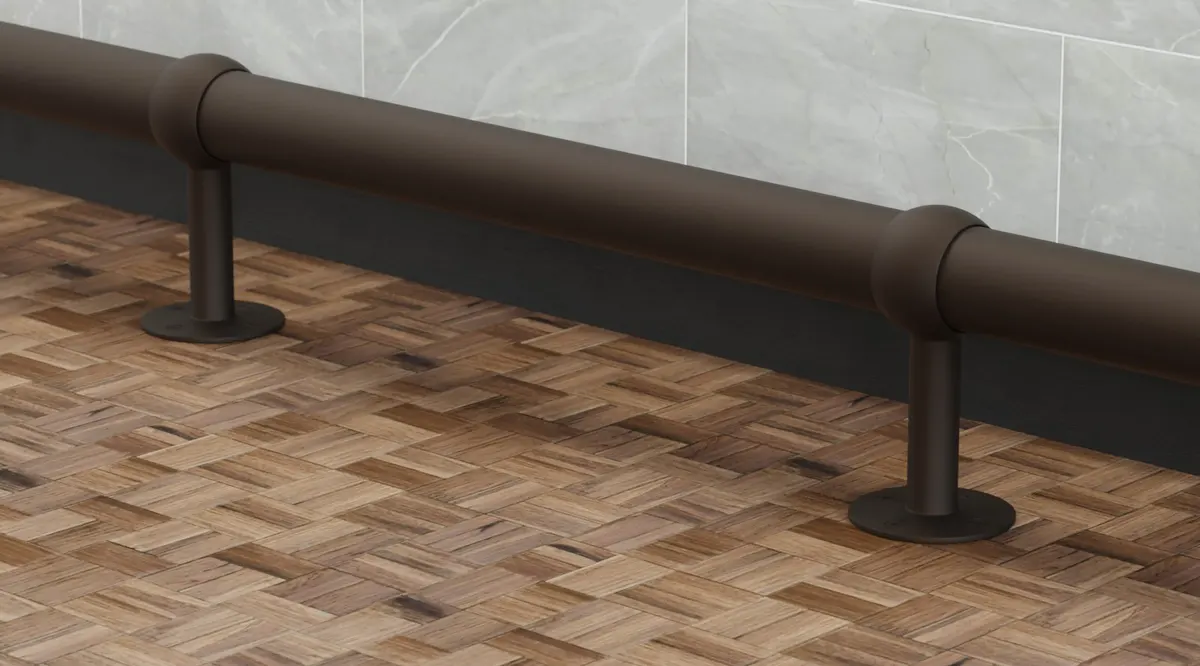

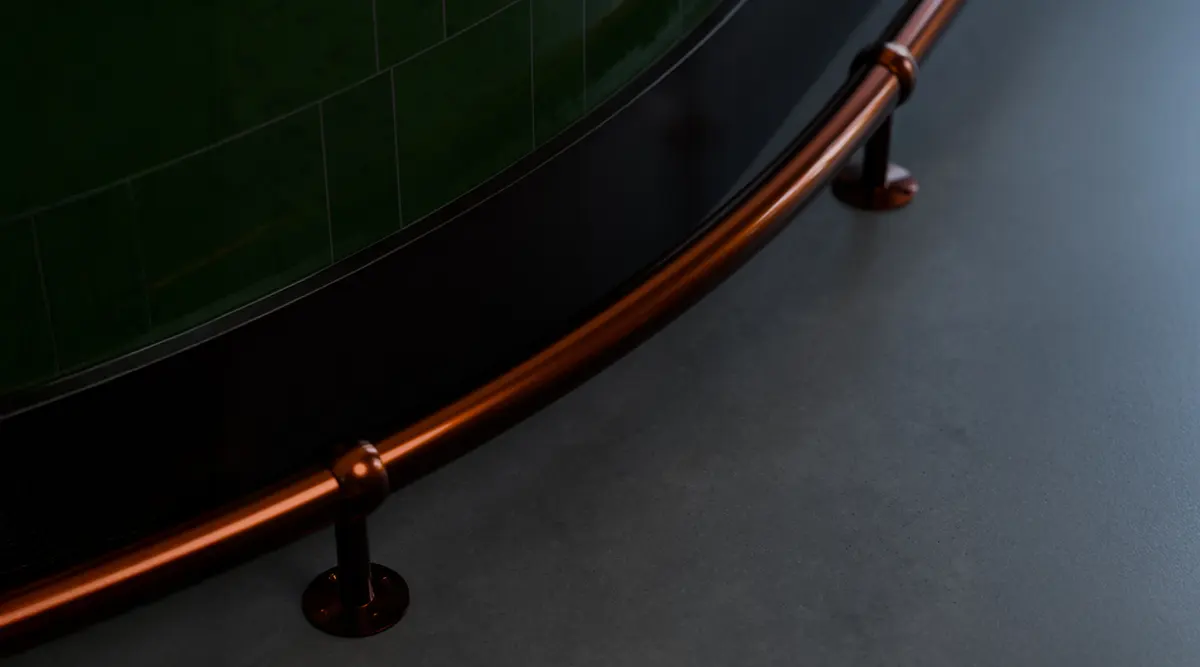

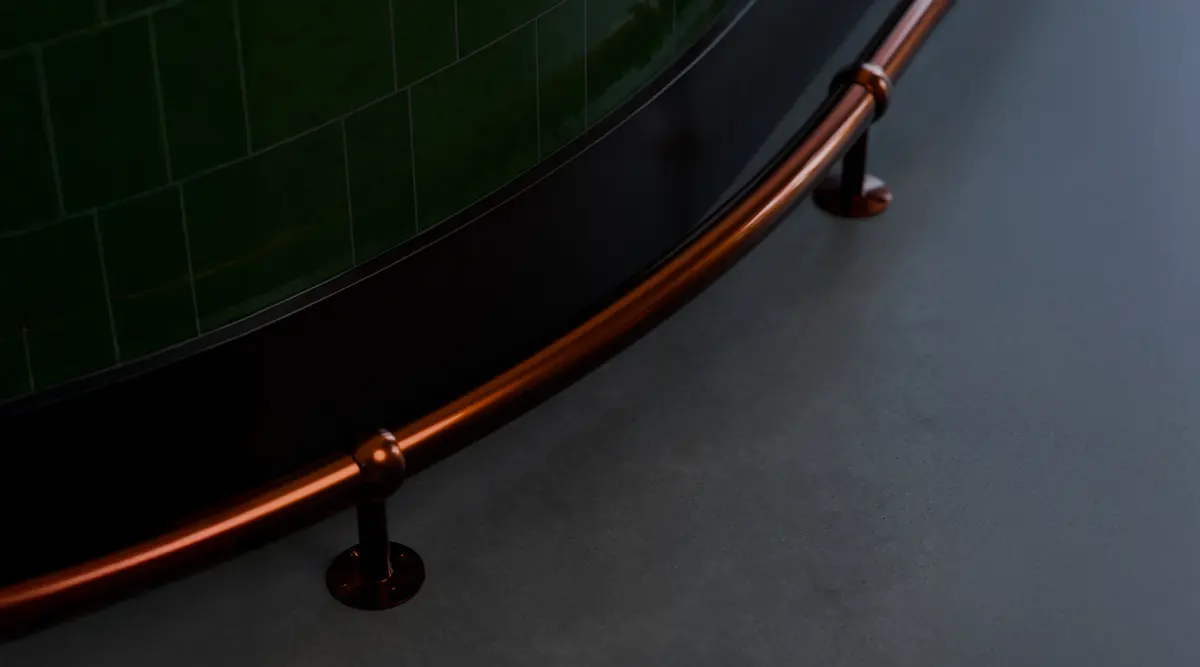

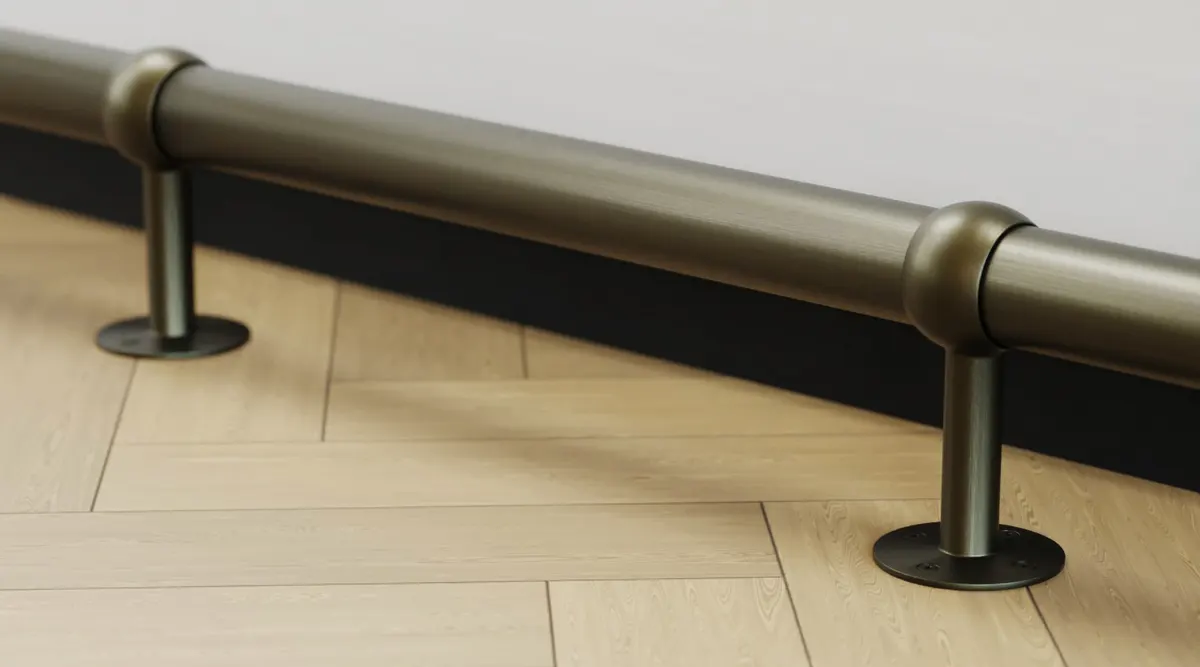

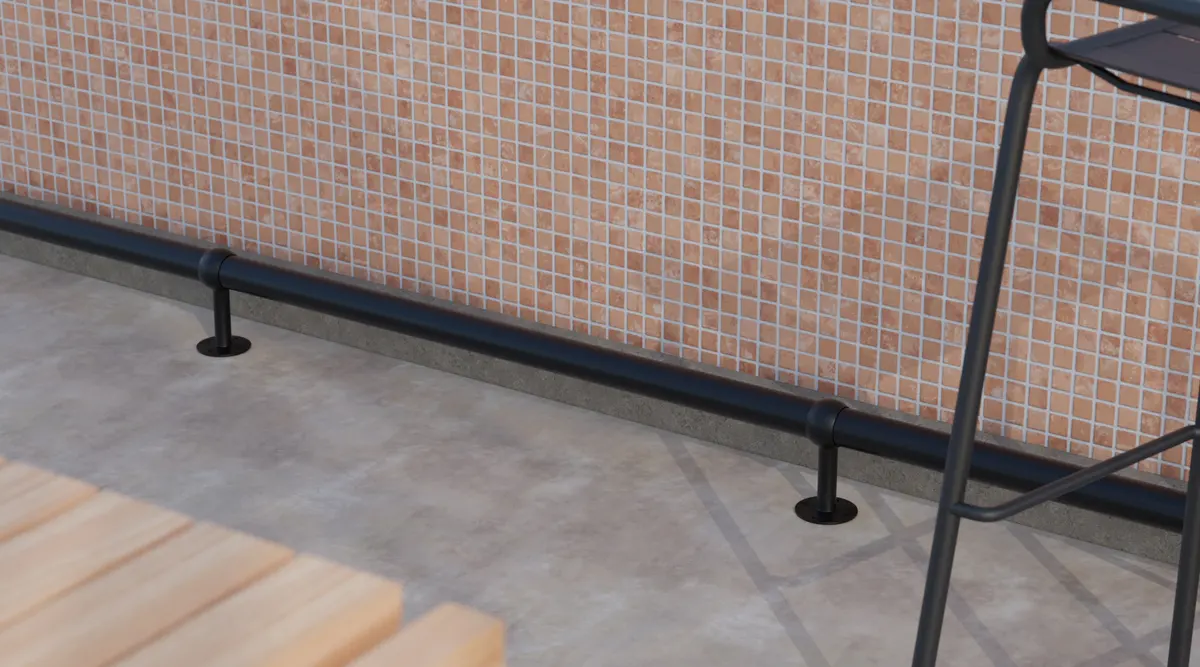

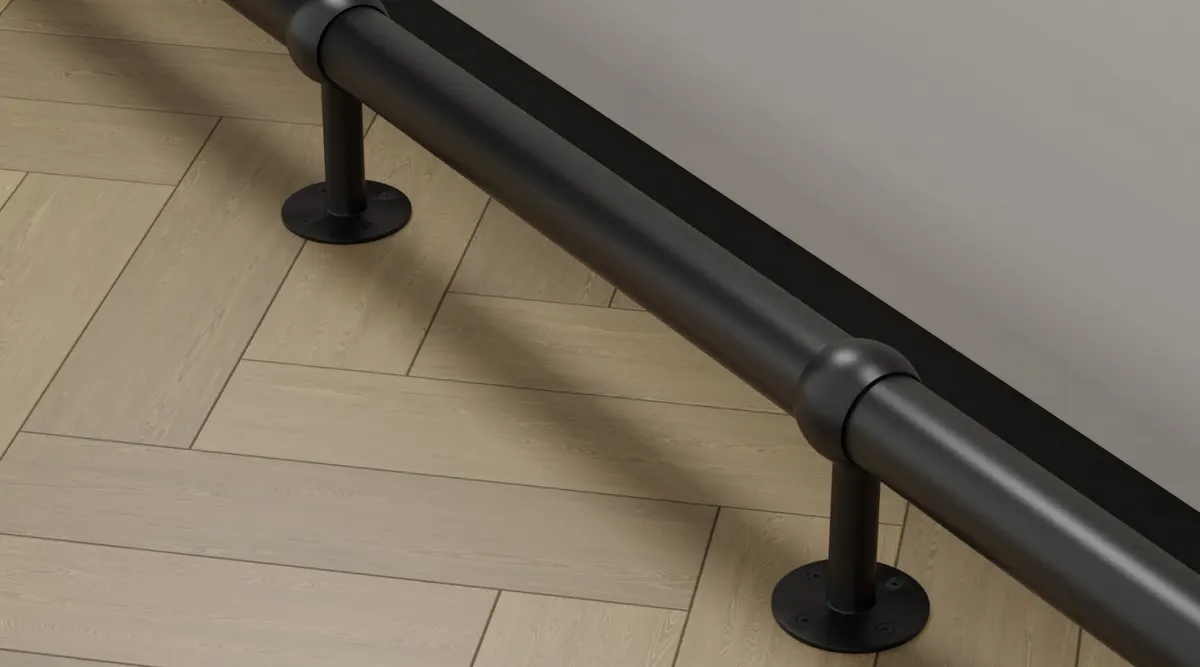

<ul> <li>Bracket foot mounts to floor (or wall/bar face for hand rail)</li> <li>Brackets should be used at both ends of rail tubing, plus one at every 3 ft increment</li> </ul>
Product Name

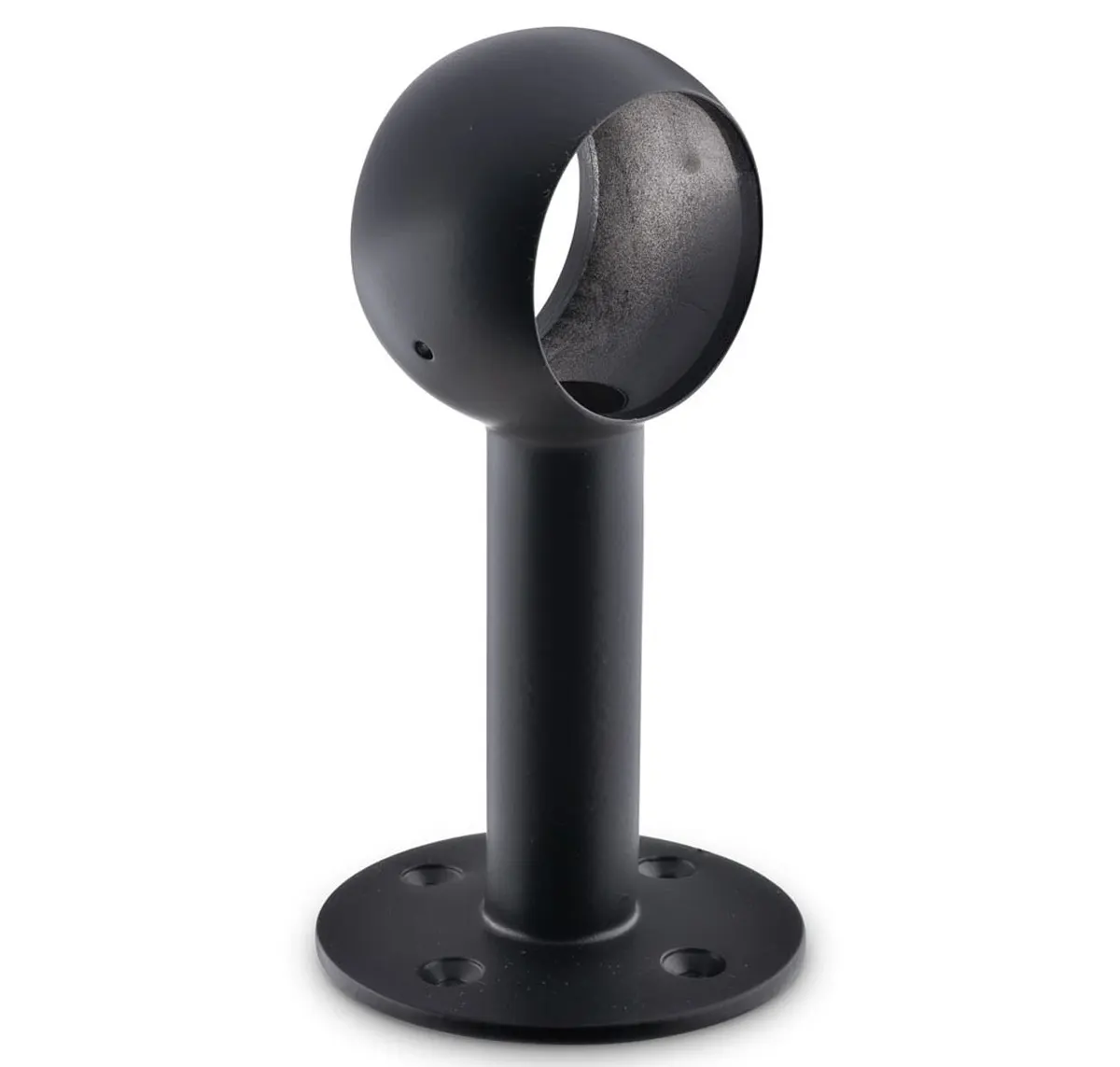

Rounded Center Post Bracket -2 in OD
Material & Finish
Content
Metal
Format
Modular
Availability & Procurement
Availability
Typically Stocked
Technical Specifications
Size
Bracket Width: 3.25 in, Bracket Height: 6.00 in, Opening Diameter: 2.01 in, Floor to Center of Tubing (Center Point): 4.75 in
Applications & Usage
Application Filter
Flooring|Wall
Installation
Measure & mark holes for mounting screws. Attach brackets to floor with mounting screws. Secure tubing to bracket by fastening set screws through hole in the bottom of the bracket.
