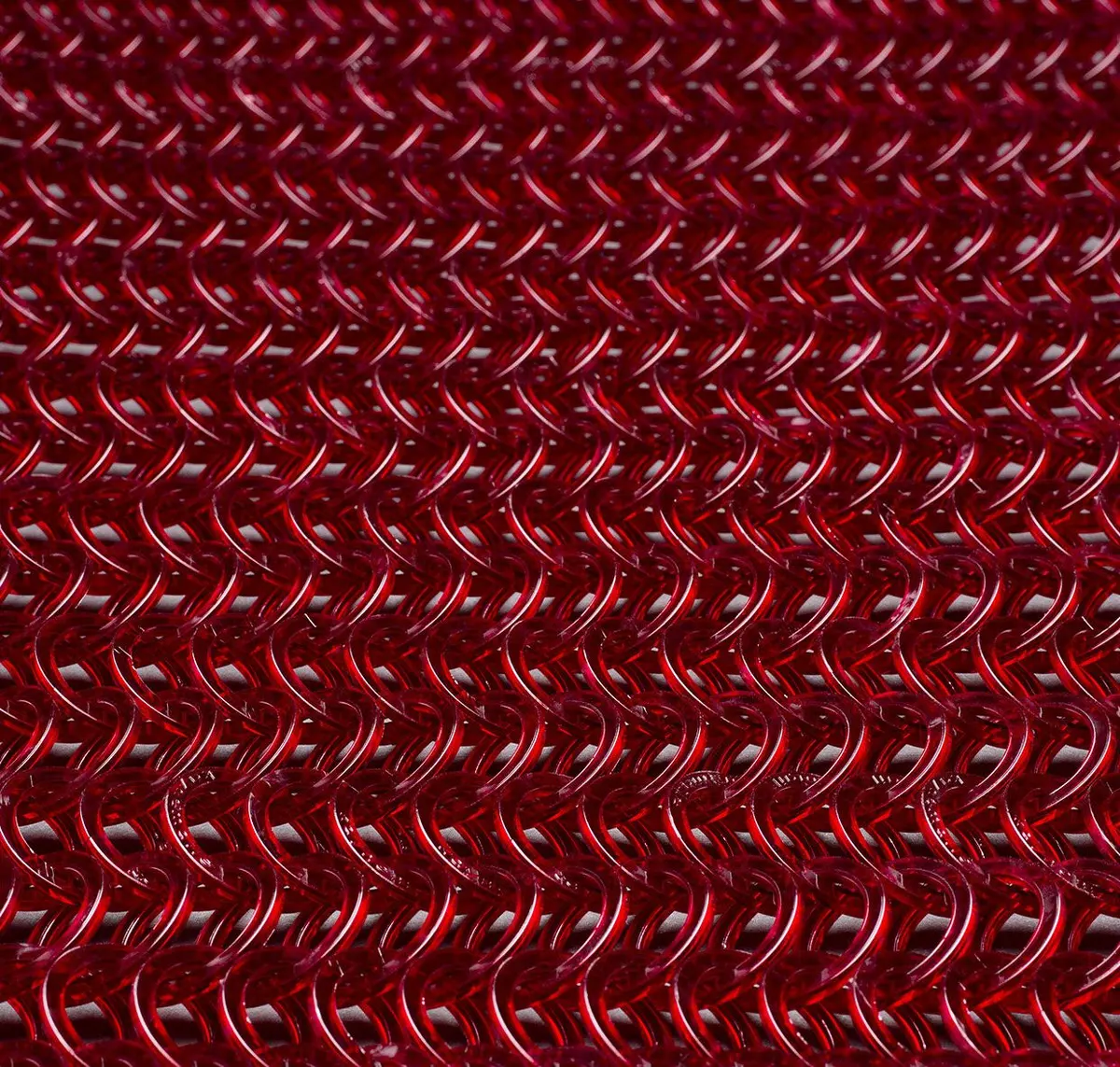

Ruby Red Translucent Ceiling Feature

Name: Ruby Red Translucent Ceiling Feature
Brand: Kaynemaile Architectural Mesh
SKU: 102019539

Mesh Drapery

Overnight

Commercial & Residential

Ruby Red Translucent

Sample size: 15 in x 16 in x 1.1 in

Arrives tomorrow

Content: 100% UV Stabilized Makrolon® RE Polycarbonate
Finish: Gloss
Opacity Level Openness: The visual open area is approximately 25%. The physical open area is approximately 80%. This means air compliant movement can be maintained in interior spaces

Availability: Made to Order / Special Order
Country Of Origin: New Zealand
Custom Capabilities: Unlimited in size. Kaynemaile exterior mesh comes in a range of solid colors
Lead Time: Lead times are confirmed on quotation. Expect 3-6 weeks depending on application

Diameter: 1.1
Overall Thickness: 15
Product Features: Customizable
Size: Kaynemaile's RE/8 mesh screens are not restricted by panel size - screens can be made to any height or width without joins or gaps
Total Weight: 3 kg m2 (0.6 lbs/ft2)

Application Filter: Ceiling|Decor|Partition|Recreation & Sport|Recreation & Sport/Gymnasium|Recreation & Sport/Weightlifting Room|Transportation|Vertically Hanging|Vertically Hanging/Theatrical Curtain|Vertically Hanging/Window Shade|Wall
Installation: Refer to Installation Instructions PDF attachment for details

Flammability: ASTM E84 Class A, Passes NFPA 285, NFPA 286, NFPA 268, Conforms with section 803.12 stability at 200°F, Flame Spread Index - 5, Smoke Developed Index - 350, Compliant with 2018 IBC section 2606 CC1 Classification, Achieved a Group 1S in the AS/ISO 9705, ASTM D 2843: Smoke Index - 70.9, ASTM 635 HB-CC1, The FR-V0 material is rated as self-extinguishing. ASTM D 1929 Self-Ignition Temperature 968°F (520°C, ASTM D 1929 Flash Ignition Temperature 842°F ((450°C)
Light Blocking: Unknown
Lightfastness: Material is UV stabilized and independently lab tested by the Building Research Association of New Zealand (BRANZ). Results show the minimal deterioration of the mesh after 2000 hours of continuous testing
Maintenance: Refer to Care, Maintenance and Warranty Information PDF attachment for details
Performance: Cd = 0.8, which is 40% less than an equivalent two-dimensional or woven mesh

Human Health Impact: CDPH Standard Method v1.2-2017, Low Emitting/Low VOC, Zero VOC
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Impact: 100% Recyclable, ISCC Certified, Life Cycle Assessment (LCA)

Circular Economy: 100% Recyclable, Recycled Content, Recycled Content - Pre-Consumer
