StaticWorx ShadowFX ESD - Vermont Planx | Product

Core Specs

General Information

Collection Name: Vermont Planx
Color Name: Woodstock
Manufacturer SKU: 3-62PL
Price Range: $$$$
Product Name: ShadowFX ESD - Vermont Planx
Warranty: Lifetime Warranty

Material & Finish

Backing: Permanent static-dissipative backing
Carpet Fiber Type: Type 6 Nylon
Construction: Tufted Pattern Loop
Content: Nylon, Continuous Static Dissipative StaticWorx® 44 denier helix fiber
Dye Method Filter: Solution Dyed
Finish: Protekt2® Soil Stain Protection; Intersept® Preservative Protection
Format: Modular, Plank

Availability & Procurement

Availability: Unavailable
Country Of Origin: United States
Custom Capabilities: This style can be made in squares, 1 m x 1 m or 1/2 m – special order

Technical Specifications

Carpet Pile Height: 0.11 in Tufted Pile Height; 0.062 in Pile Thickness
Overall Thickness: 0.189
Pile Face Weight: 542
Yarn Tuft Details: 1/10 in gauge, 12 in tufted stitches per inch

Applications & Usage

Application Filter: Flooring|Flooring/Electrostatic Dissipative Flooring

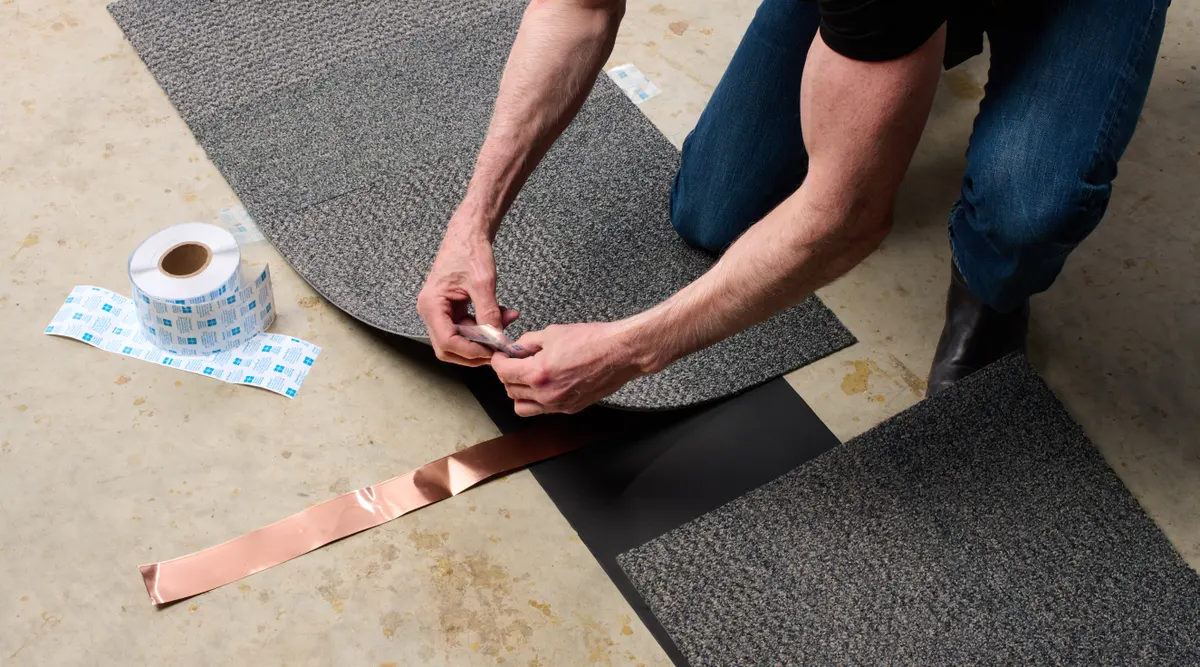

Installation: Use only StaticWorx-approved conductive adhesives. GroundTack pressure sensitive. TacTiles glue-free self-stick connectors for adhesive-free installation over raised access floors. Refer to Installation Instructions PDF for more details
Installation Direction: Herringbone, Ashlar

Performance Metrics

Durability: Heavy Duty
Flammability: ASTM E 648 Radiant Panel Class 1; ASTM E 662 Smoke Density = 450 ; Passes Methenamine Pill Test (DOC-FF1-70)
Light Blocking: Complete
Lightfastness: AATCC 16 – E - = 4.0 @ 60 AFUs
Surface Pile Density: 9,290 oz/yd³

Sustainability

Human Health

Human Health Impact: CDPH Standard Method v1.2-2017, CRI Green Label Plus Indoor Air Quality, Green Label Plus, Low Emitting/Low VOC
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Health

Emissions: Private Office Range of Total VOCs: 0.5mg/m³ or less; School Classroom Range of Total VOCs: 0.5mg/m³ or less
GWP Functional Unit: kg CO2e/m2

Circular Economy

Circular Economy: Recycled Content, Recycled Content - Post-Consumer, Recycled Content - Pre-Consumer

Certifications & Disclosures

LEED: May contribute to LEED Credits
VOC Emissions Testing Certificate: CRI Green Label Plus
