Roppe ShockGuard Multi-Use Vinyl Sheet - Solid Colors | Product

Core Specs

General Information

Collection Name: ShockGuard
Color Name: Battleship
Color Number: 669
Manufacturer SKU: SG51149P669
Price Range: $$
Product Name: ShockGuard Multi-Use Vinyl Sheet - Solid Colors
Warranty: 10 Year Limited Commercial Warranty

Material & Finish

Content: Vinyl

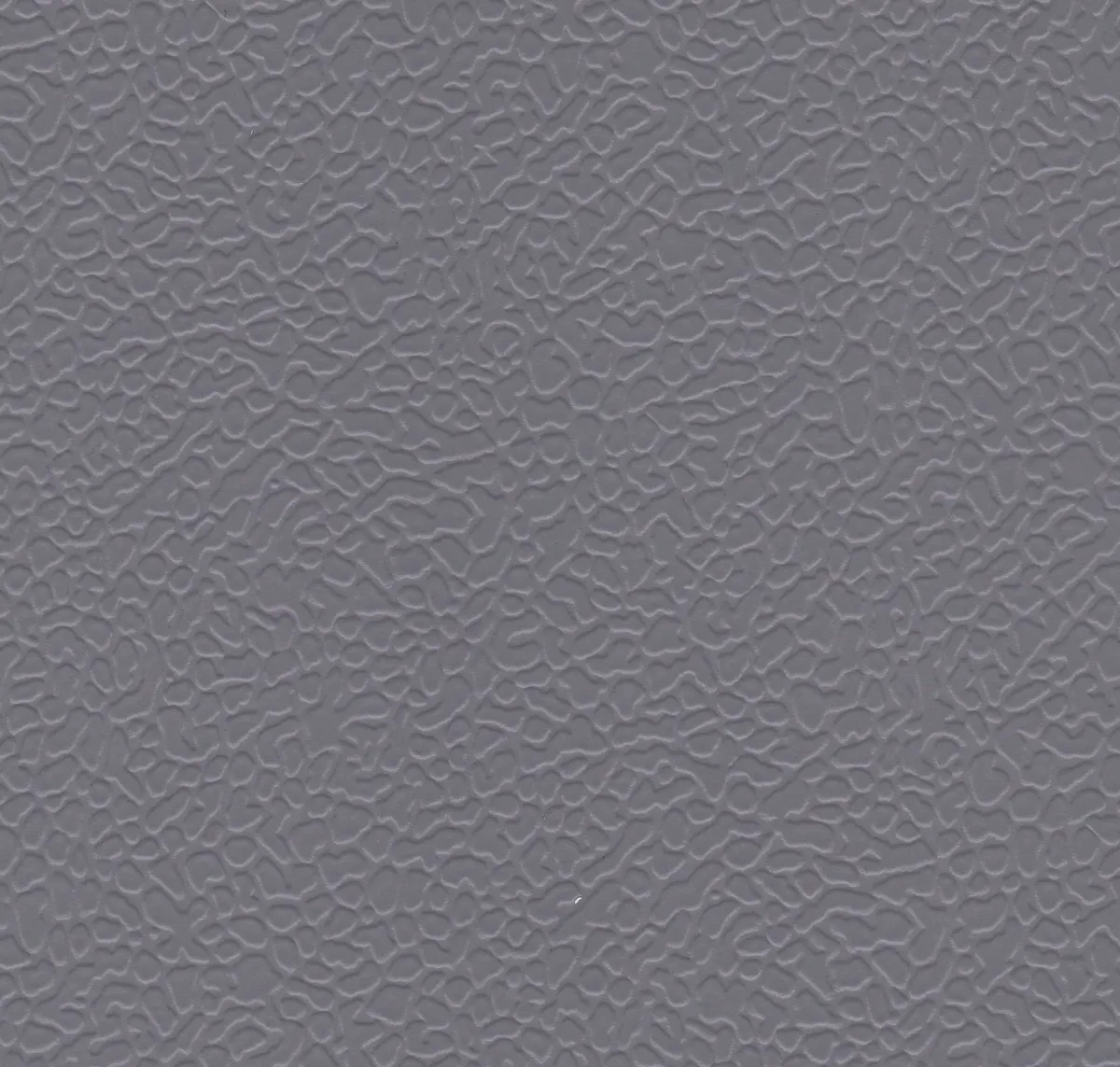

Finish: Hammered Embossed with EverProtect - Factory Applied Permanent Polyurethane Finish
Format: Roll

Availability & Procurement

Availability: Unavailable
Manufacturing Location: Fostoria, OH

Technical Specifications

Impact Resistance: EN 1517 - Passes
Length: 4.1
Overall Thickness: 32
Size: 71 in x 49 ft (1.8 m x 15 m)
Wear Layer Thickness: 0.030 in (0.7 mm)

Applications & Usage

Application Filter: Flooring|Flooring/Flooring for Radiant Heat Systems
Installation: Vinyl Sheet Flooring is considered non-directional. If possible, the sheets should be installed in the same direction by unrolling the rolls the same way and in the direction of the main light source, especially if it’s natural light rather than across it. Rolls installed should have the same manufacturing serial numbers and be installed in consecutive order. If there are concerns regarding shade or color variation, do not install material, and consult a sales representative and/or manufacturer’s technical staff

Performance Metrics

Abrasion Wear Resistance: EN ISO 5470 - Passes; EN 1569 Rolling Load Indentation - Passes
Classification: ASTM F1303 - Type 1 - Grade 1 for Wear Layer Only; ASTM F2772 Athletic Performance Properties of Indoor Sports Floor Systems
Flammability: ASTM E648 (NFPA 253) Critical Radiant Flux - Class 1, = 0.45 W/cm²; ASTM E662 (NFPA 258) Smoke Density - Passes, = 450
Light Blocking: Unknown
Lightfastness: ASTM F1515 - ?E = 8
Maintenance: Refer to Maintenance attachment for details
Slip Resistance: ASTM D2047 Static Coefficient of Friction = 0.50

Sustainability

Human Health

Human Health Impact: Phthalates free, SCS Global FloorScore Certified, Health Product Declaration (HPD), WELL Compliant, Antimicrobial free, Halogenated Flame Retardants Free, PFAS free
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Climate Health

Emissions: TVOC Emissions 0.5 mg/m³

Social Health & Equity

Sustainability Action Plan: Sustainability Action Plan

Certifications & Disclosures

LEED: Contributes to LEED v4/4.1 Requirements
VOC Emissions Testing Certificate: FloorScore Certified
