Limited warranty for one year from the date of purchase
Material & Finish
Construction
High Pressure Laminate
Content
Kraft Paper, Melamine Resin, Phenolic Resin
Finish

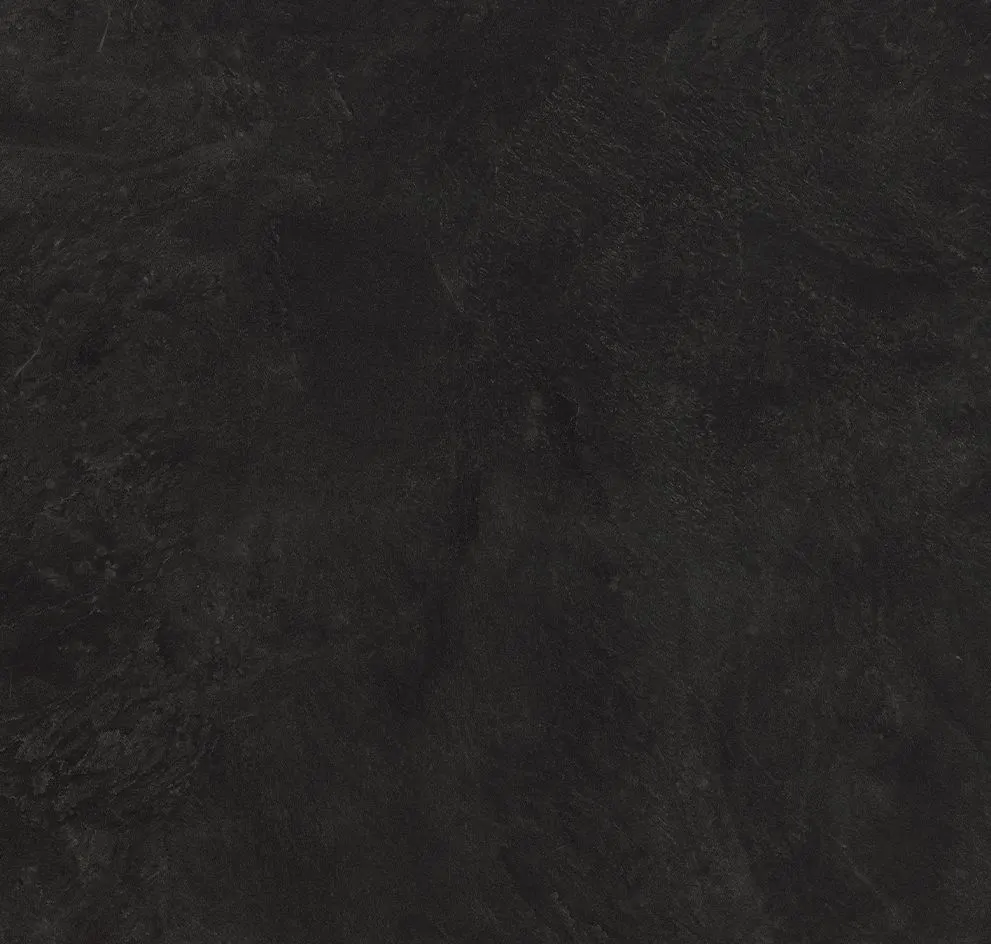

Scovato (Finish Code: 34)
Format
Panel / Sheet
Availability & Procurement
Availability
Made to Order / Special Order
Country Of Origin
United States
Custom Capabilities
Also available in made-to-order sizes and finishes. Inquire with brand or local brand representative
Technical Specifications
Dimensional Stability
Postforming grade laminate is hygroscopic and therefore capable of absorbing moisture from the atmosphere. Grade 12 (HGP) = 1.1% (max) change in both Machine and Cross Directions. Grade 20 (VGP) = 1.4% (max) change in both Machine and Cross Directions.
The most common sheet sizes are 4x8,10 ft, 5x10,12 ft, and 2.5x12 ft. Please reach out to your local Formica representative regarding made-to-order sizes and finishes
Contact, semi-rigid (PVAc), or rigid (urea, resorcinol) adhesives may be used, following the adhesive manufacturer’s recommendations.
Suitable Substrates
In most applications, the laminate must be bonded to MDF, a #45 density particleboard, or similar substrate. A marginal substrate such as plywood may be used, however it must meet APA standards and be “A” faced, hardwood veneer or multi-ply core plywood. Do not adhere directly to plaster, drywall, or concrete. Panel assemblies should be laminated with the appropriate backing sheet to minimize warpage. Formica® Brand backing sheets (grade 91/BKV or 92/BKH) are recommended for less critical applications. Optimum balancing is obtained by bonding the same surface laminate on both sides of the assembly with the same adhesive. Always align sanding marks in the same direction.
Performance Metrics
Abrasion Wear Resistance
ANSI/NEMA LD3 3.13 Tested - Minimum = 400 Cycles
Flammability
Passes FMVSS 302; Not ASTM E84 rated (ASTM E84 rated grades are available)
Flexural Strength
Grade 12 (HGP) has a minimum bend radius of 1/2" (12.7 mm) for outer edges and 3/16" (4.8 mm) for cove radii. Grade 20 (VGP) has a minimum bend radius of 3/8" (9.5 mm).
Health Product Declaration (HPD), Low Emitting/Low VOC, Precautionary List Free, RoHS Compliant, UL GREENGUARD, UL GREENGUARD GOLD, CDPH Standard Method v1.2-2017
VOC Emissions Testing Methodology
CDPH / CHPS 01350 Compliant
Climate Health
Climate Impact
EC3, Environmental Product Declaration (EPD), Life Cycle Assessment (LCA)
Emissions
A low-emitting material per GREENGUARD evaluation
Ecosystem Health
Ecosystem Health
Forest Stewardship Council (FSC) Certified - Responsible Forestry|Forest Stewardship Council (FSC) Certified
Social Health & Equity
Social Equity Impact
Build America, Buy America Act (BABAA) Compliant, Forest Stewardship Council (FSC) Certified, Forest Stewardship Council (FSC) Certified - Chain of Custody, Made in USA
